8 - 154 Section 8-6 - Replacing Top Console Parts
8-6-10-2-2 Touch Panel Joystick Encoder Replacement
Table 8-100 Touch Panel Joystick Encoder Replacement
Steps Corresponding Graphic

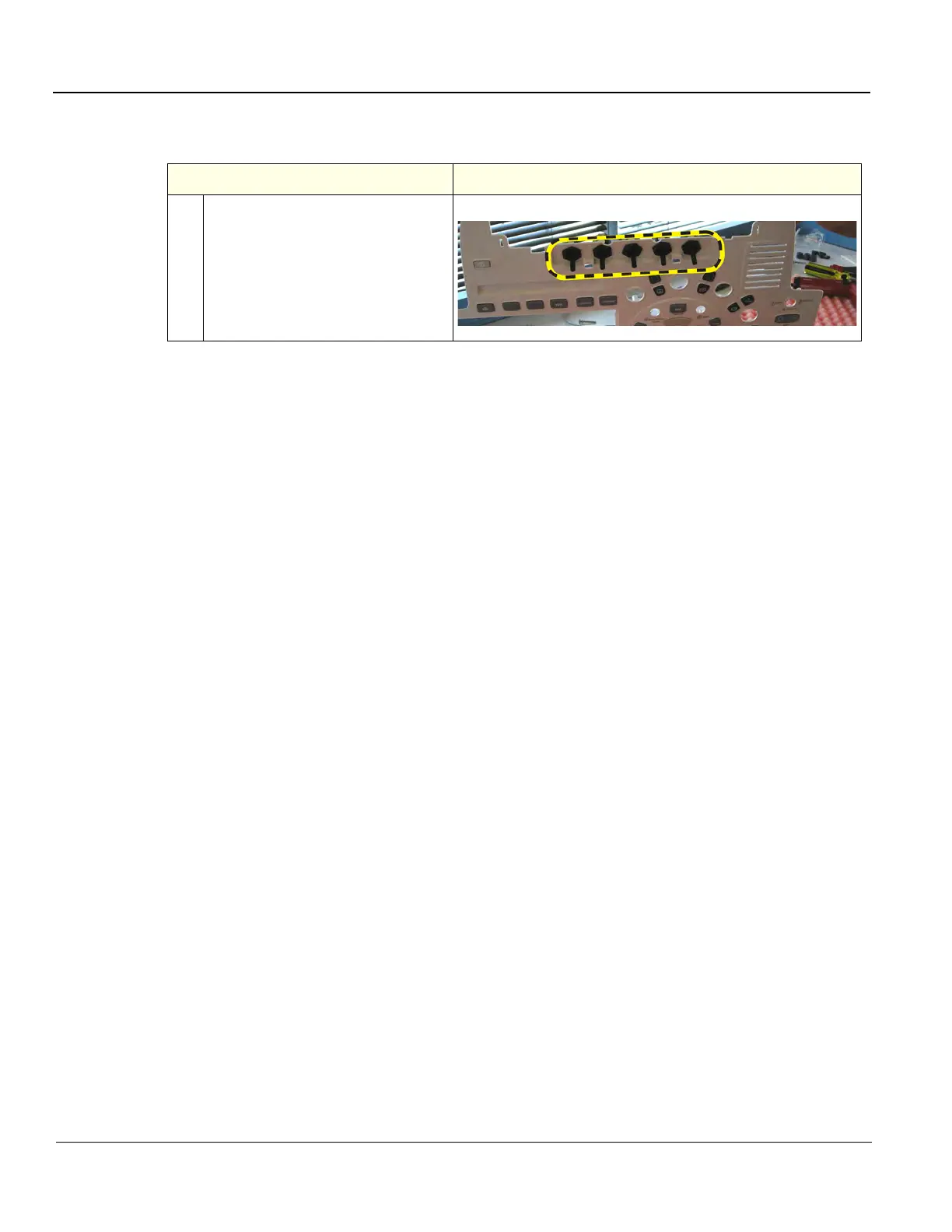

1. From the front of the Lower Bezel,
remove the hex nut from the
Joystick Encoder.
Encoder Hex Nuts
