GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
8 - 156 Section 8-6 - Replacing Top Console Parts
8-6-10-2-4 Mode Encoder Replacement
3. Remove the hex nut.

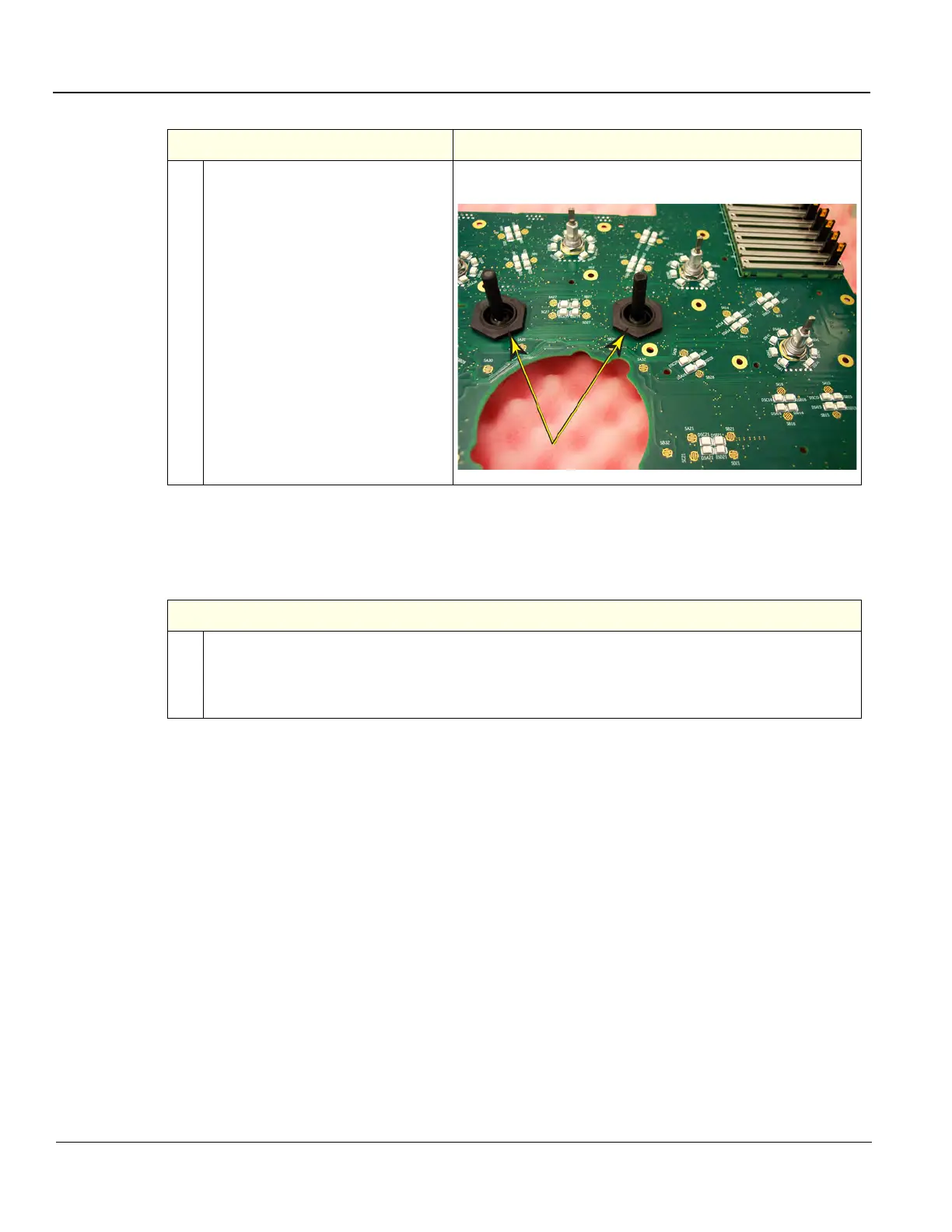

Joystick Encoder Nuts (top view of board)
Table 8-102 Mode Encoder Replacement
Step
1. These encoders plug into the headers on the board; so remove the nut from the top side and pull
out the encoder from the bottom side.
NOTE: The elastomer is on the top side.
Table 8-101 Depth-Type Joystick Encoder Replacement
Steps Corresponding Graphic
To Next Page
