IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

8 - 158 Section 8-6 - Replacing Top Console Parts

2. On the bottom side of the Lower

Bezel, pull through the elastomer

guides until they lock in.

Double check that all 16 elastomer

guides (anchors) are pulled through

all the way, or else it will not seat

properly.

Install the Trackball.

Reattach the Power and USB

cables.

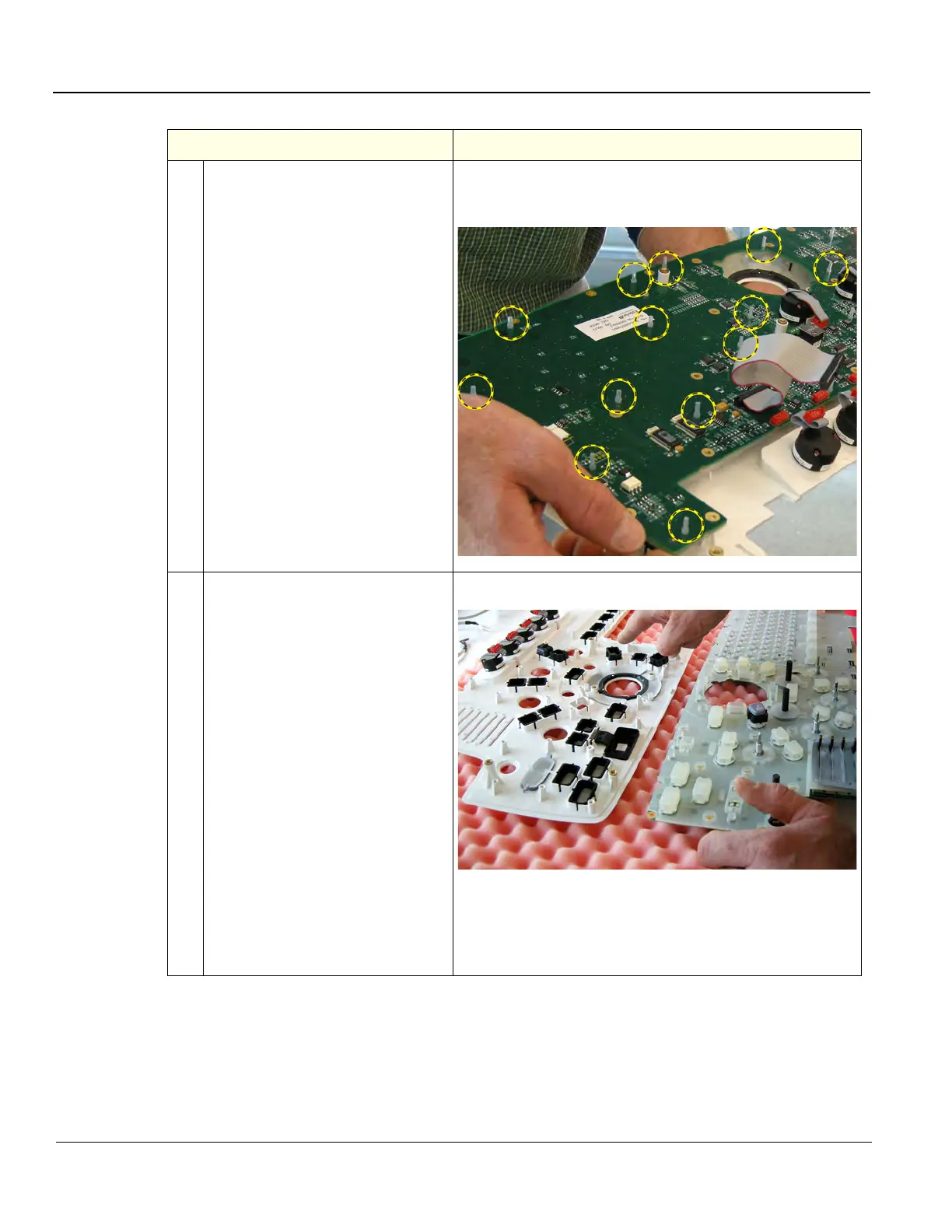

Elastomer Guides - top view (not

all elastomer anchors are identified

3. When replacing the Lower Op

Panel Bezel:

• Make sure that carriers, buttons,

knobs are all in place before setting

the Lower Op Panel Board on top of

the Lower Bezel.

• Ensure that the board is flat on top

of the bezel. Put a few screws in,

then flip it over to make sure none of

the buttons are ‘cocked,’ or out of

place.

• Replace the remaining screws.

D. Replace the TGC dust gasket.

The clear, plastic backing must be

facing down when the bezel is

installed. (The clear, plastic backing

should be facing up from this view.)

Lower Op Panel Board and Lower Bezel

Table 8-103 Elastomer Lower Op Panel Replacement

Steps Corresponding Graphic
