Chapter 8 Replacement procedures 8 - 163
8-6-11-4 Options Holder removal
1.) From underneath the Upper Console, remove the three screws securing the Options Holder.
2.) Remove the Options Holder from the Upper Console.

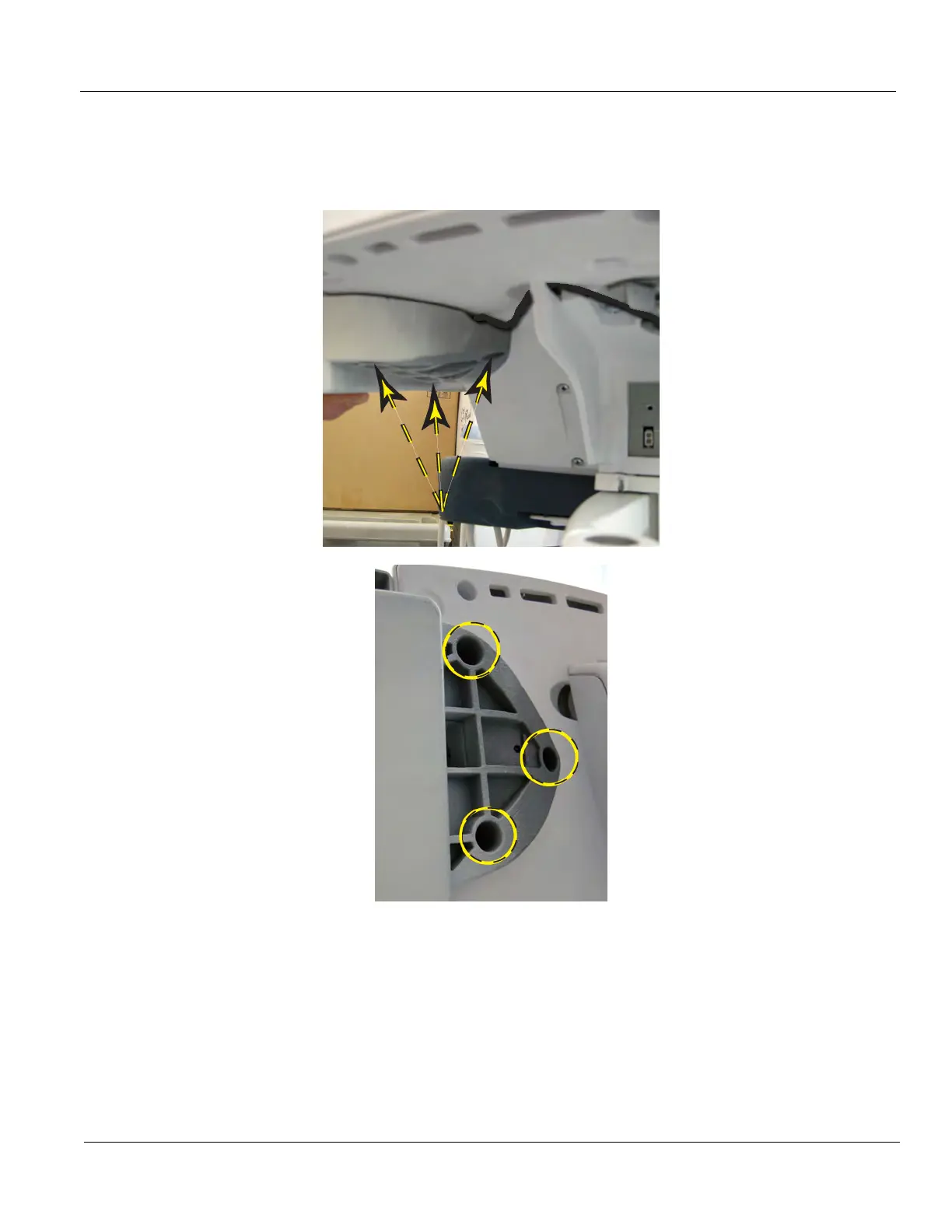

Figure 8-46 Screws, underneath upper console - gel warmer and option tray shown
