IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
8 - 168 Section 8-6 - Replacing Top Console Parts
8-6-12-5 Gel Warmer installation
1.) Place the Gel Warmer in the Options Holder, routing the cable through the cutout (1) between the
Options Holder and Gel Warmer and through the cable channel (2).
NOTE: Be careful not to pinch wires.
2.) Install the two screws at the Gel Warmer base, securing the Gel Warmer to the Options Holder
(Torque: 3 Nm {2.2 lbf-ft}).
3.) Install the Options Holder.
4.) Route the Gel Warmer cable through the lower frame cable support.
5.) Connect the Gel Warmer cable to the bulkhead.
6.) Replace the Bulkhead Cover.

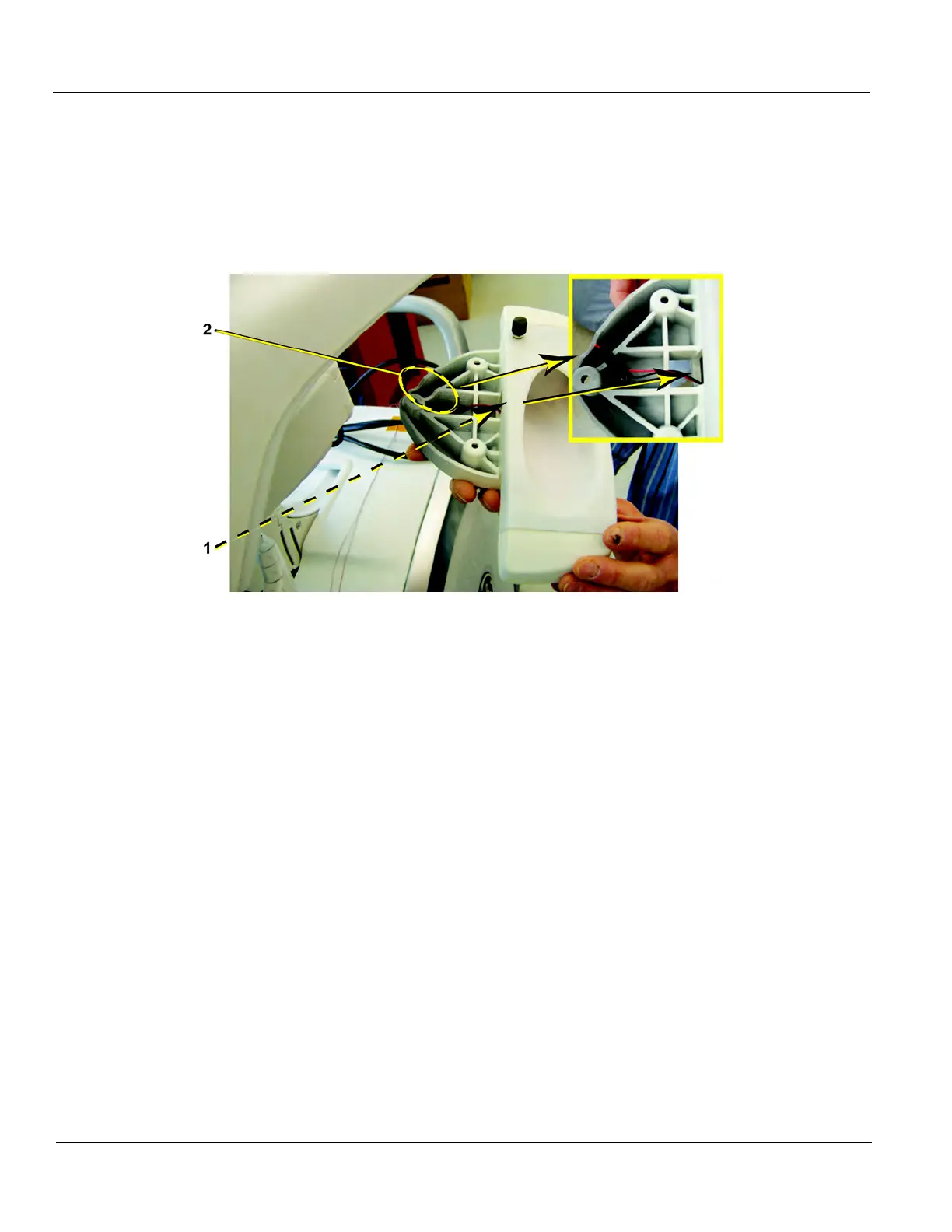

Figure 8-50 Options Holder removed, with Gel Warmer in place
