IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

8 - 210 Section 8-9 - BEP (Back End Processor) parts replacement

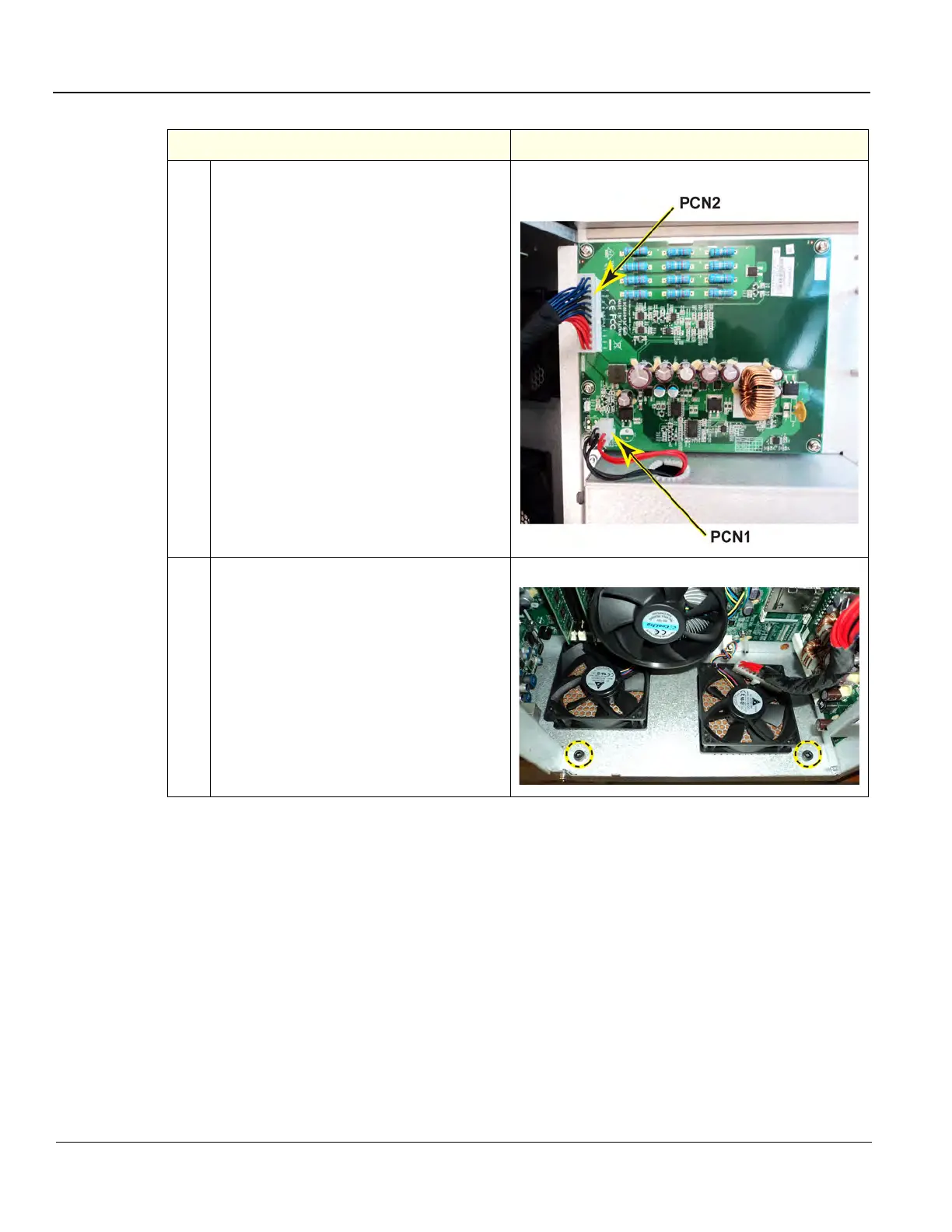

NOTE: All the connectors to the CB

(ChargeBoard) must be “unlocked“ to

remove.

Disconnect:

• the battery cable from PCN1 on the CB

(ChargeBoard).

• the CB to the PB (PowerBoard) cable

from PCN2.

Place the BEP cover aside.

BEP6 CB cables

Remove the two 5 mm HEX key screws at

the inside base of the BEP.

BEP Base HEX key screws

Table 8-126 BEP removal - R4.x and later

Steps Corresponding Graphic
