8-12-4 On-Board V Nav Stand Option Contents, location and placement of parts
Table 8-192 Reference for assembling Option to LOGIQ E9
Option Contents

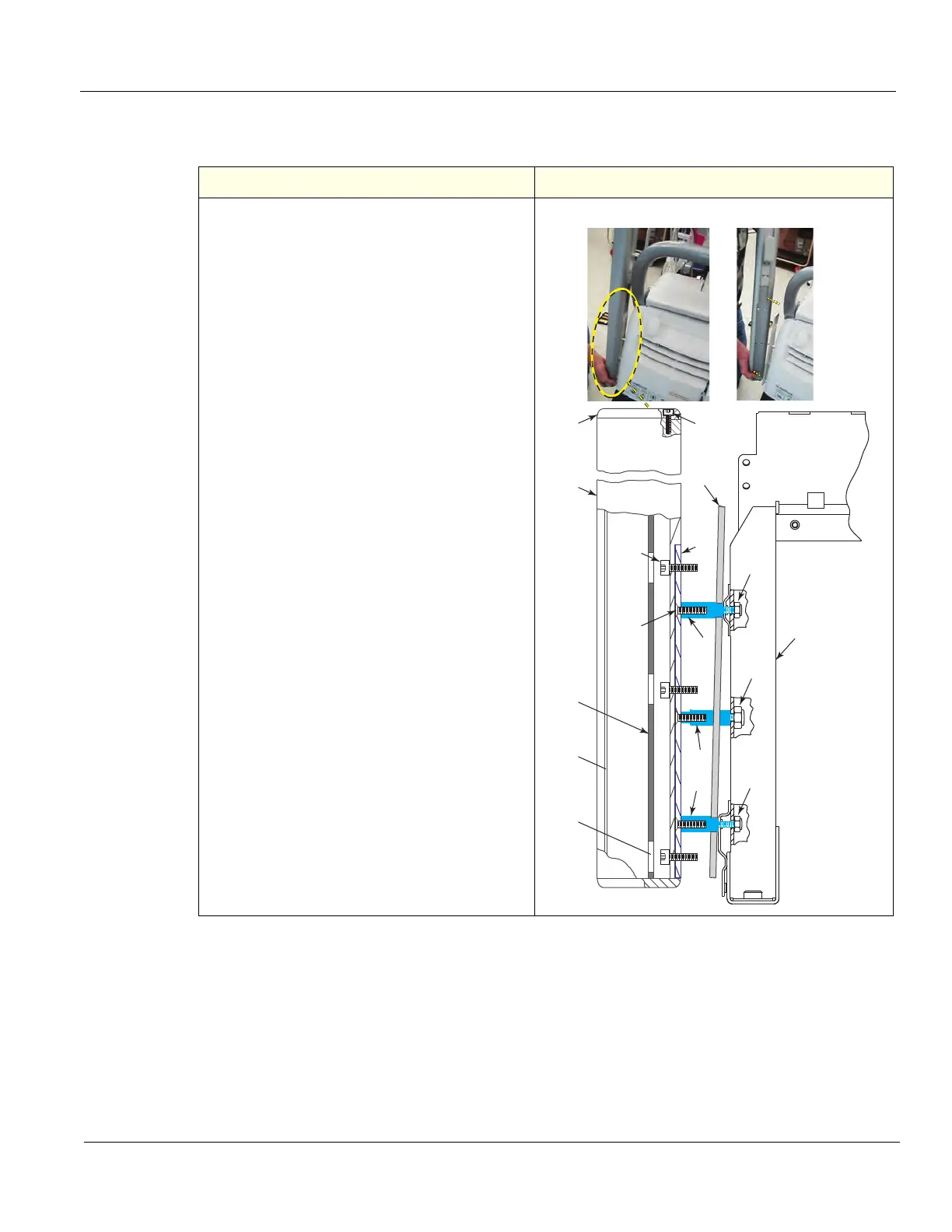

Corresponding Graphic
1. V Nav Arm Stand Post
2. Cover Plate
3. Socket Head Cap Screw (SHCS) - (x4) for
Cover Plate
4. V Nav Arm Stand to LOGIQ E9 Mounting Plate
5. Socket Head Cap Screw (SHCS) - (x6) to
mount Stand Post to Mounting Plate
6. Screws - (x3) to mount the Mounting Plate
7a. V NAV Stand Post Stand-off Fastener to
Targa - long/top - (x1)
7b. V NAV Stand Post Stand-off Fastener to
Targa - medium/center - (x1)
7c. V NAV Stand Post Stand-off Fastener to
Targa - short/bottom - (x1)
8. LOGIQ E9 Targa (not part of the kit)
9. access hole to Item 5 (in stand post)
10. Cover Plate groove (in stand post) - Cover
Plate not shown
11. Tension/Sliding Mechanism (in stand)
NOTE: Before Item 7b can be installed, the
Grounding Plug installed MUST BE removed.
Illustration shown without the rear cover
1
2
3
4
5
6
7a
8a
10
11
12
9
8a
8b
7b
7c
13
