IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

8 - 310 Section 8-12 - V Nav Roll Stand and/or On-Board Stand Installation and/or Replacement

8-12-5 Assembling or replacing the On-Board V Nav Stand

For reference of assembly, parts location and parts identification, see:

Table 8-192 "Reference for assembling Option to LOGIQ E9" on page 8-309.

Table 8-193 Option Installation to LOGIQ E9

Steps

Corresponding Graphic

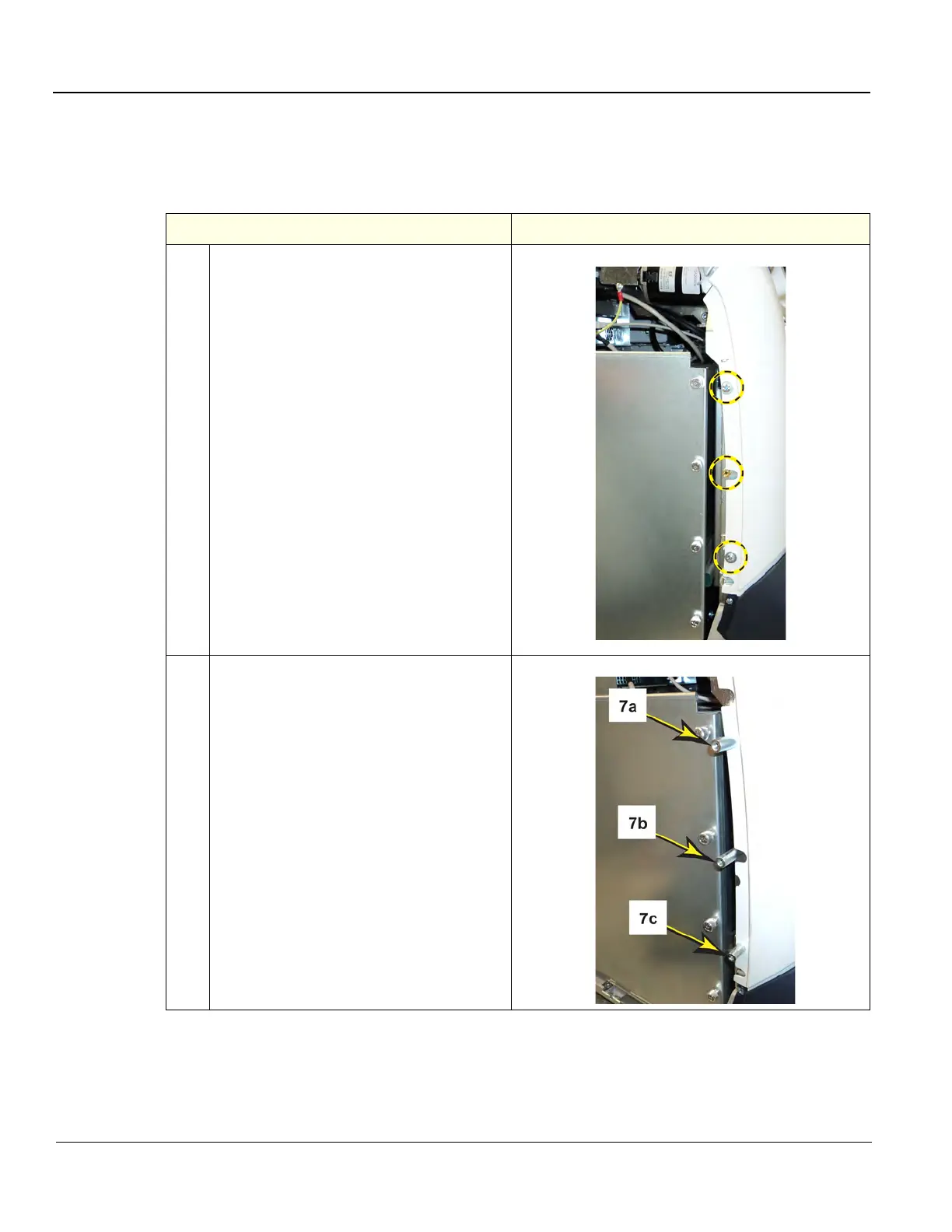

Remove Grounding Plug (center) and the

Rear Cover mounting screws.

Install the V NAV Stand Post Stand-off

Fasteners (7a-7c) to Targa, short in the

bottom and long in the top. Tighten

securely.

NOTE: The Rear Cover mounting flange

should not get pinched by the Stand-off

Fasteners. Two of the Stand-off Fasteners

will fit in the holes in the cover and hold the

cover in place after they are installed.
