9 - 96 Section 9-17 - Internal Cables
9-17-5 Back End Processor (BEP) cables (cont’d)
There are two main families of BEPs used on the LOGIQ E9; BEP5.x supported in R3.x and earlier and
BEP6.x supported in R4 and later. See: Table 9-41 "Back End Processor (BEP) Internal Cables BEP5.x
(R3.x and earlier)" on page 9-96 and Table 9-42 "Back End Processor (BEP) Internal Cables BEP6.x
(R4.x and later)" on page 9-97.

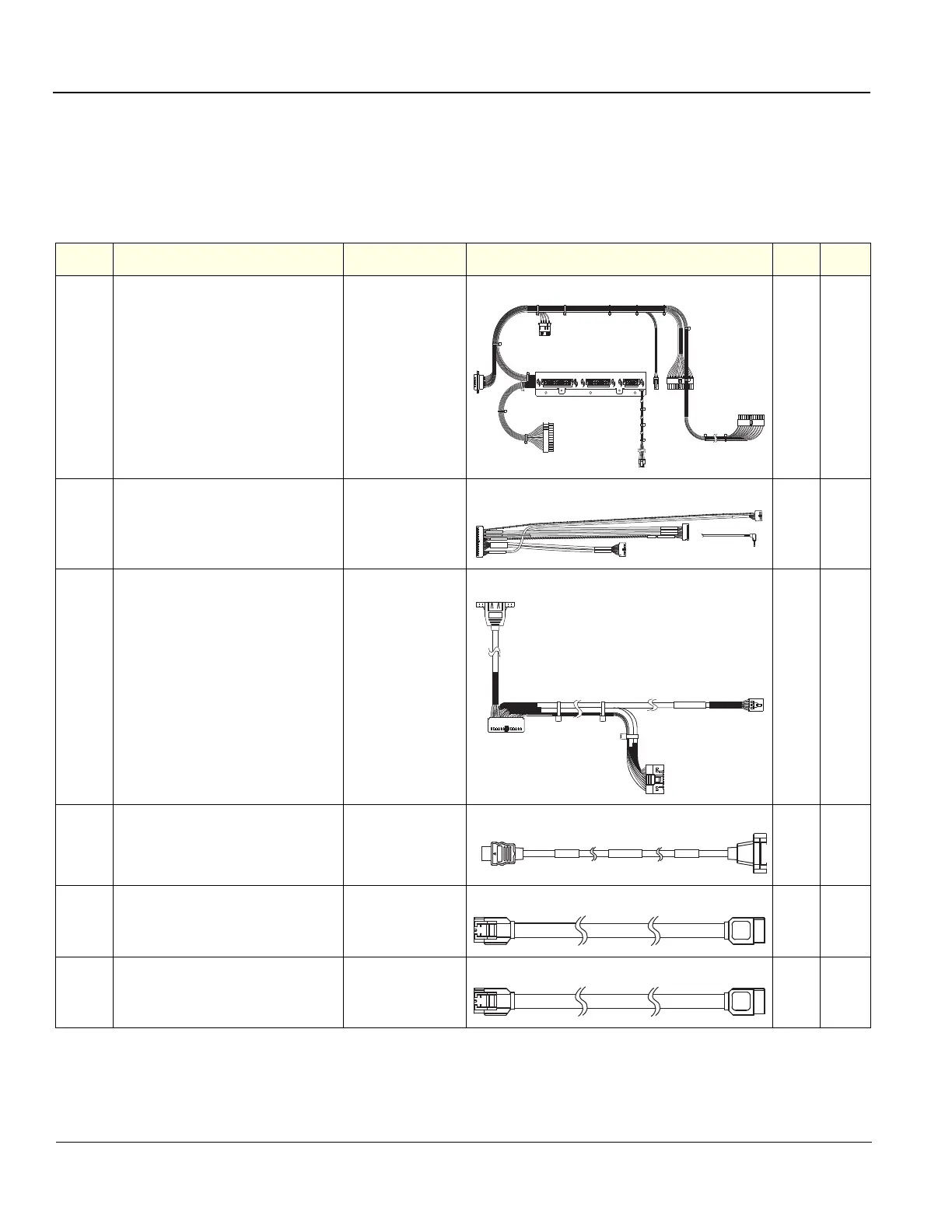

Table 9-41 Back End Processor (BEP) Internal Cables BEP5.x (R3.x and earlier) 1 of 2
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
1.
Cable, Harness, BEP Power With
Extended Power Shutdown
5165844-2
Cable 1
1Y
2. Cable, Motherboard Harness 5193725-2
Cable 2
1Y
3. Cable, Front Panel Harness 5193726
Cable 3
1Y
4.
Cable, PCI express bulkhead
R3.x and earlier
5152291
Cable 4
1Y
5.
Cable, SATA Cable - DVR
R3.x and earlier
5183841-2
Cable 8
1Y
6.
cable-powered eSATA to 15-7 DVD
Cable, SATA Cable - DVR
R3.x and earlier
5431110
Cable 8
1Y
MBOARD J3
BEP J5
MBOARD
SA1
5183841-2
DVR
“HOST”
MBOARD
SA1
5183841-2
DVR
“HOST”
