GE LOGIQ E9

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 9 Renewal Parts 9 - 97

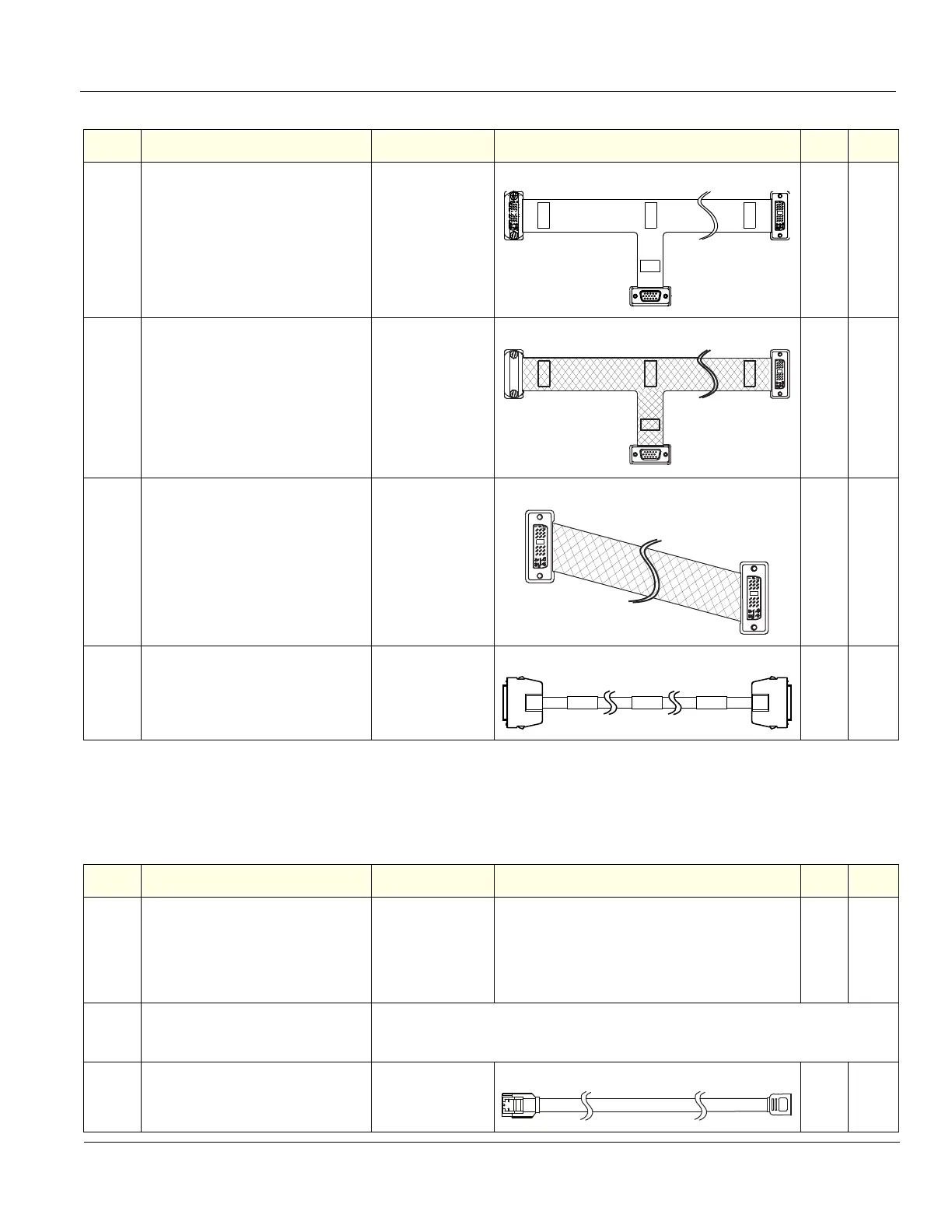

7. DVI FLEX Video 5169280
Cable 10
1Y
8.
DVI FLEX Cable with Shielding
(for DVR Option)
5169280-2
Cable 10
1Y
9. DVI FLEX, DVR Jumper to BEP 5197215-2
Cable 11
1Y
10. Cable, BEP to Backplane Cable 5194491
Cable N
1Y
Table 9-42 Back End Processor (BEP) Internal Cables BEP6.x (R4.x and later) 1 of 2
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
1.
Cable Kit
R4.x
5433408-80
Kit includes:
PowerBoard to ChargeBoard
PatIO (ECG) Power/USB
SATA Jumper
Video Jumper
Main Power Supply to PowerBoard Ribbon Cable
1Y
2. Cable, BEP to Card Rack BackPlane
and PCI Express - MRX and GFI
R4.x and later
See: Table 9-40 "Card Rack Cables" on page 9-91.
3. SATA Cable - BEP6 MB to DVR 5439827
Cable 5
1Y
Table 9-41 Back End Processor (BEP) Internal Cables BEP5.x (R3.x and earlier) 2 of 2
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
IO BOARD
J36
BACKPLANE
J3
MBOARD
SATA3
DVR BOARD
“HOST”
5439827 REV X #NAME# #ORIGIN# #DATE#
SATA
