GE LOGIQ E9 Service Manual

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

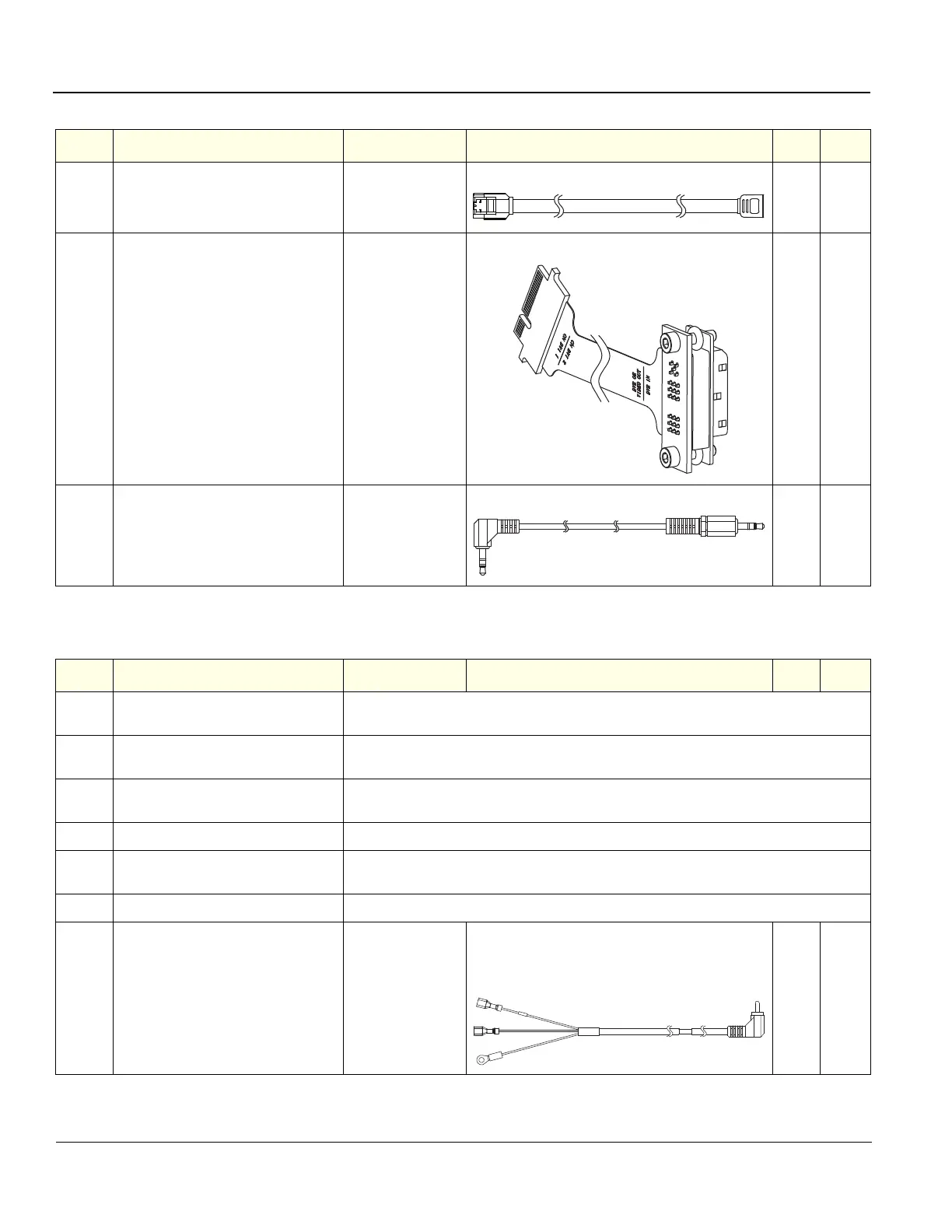

9 - 98 Section 9-17 - Internal Cables
4. SATA Cable - DVR to BEP6 MB 5439827-2
Cable 5A
1Y
5.
Flex Cable - DVI to SAMTEC Video
Jumper
5428990
Cable 9
2Y
6. Cable - DVR Audio BEP6 5435462
Cable 11
1Y
Table 9-43 Back End Processor (BEP) External Cables 1 of 2
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
1.
Cable, USB A-B High Speed
Cable H,
See: Table 9-39 - Main Power Supply Cables
2.
Cable, Power Cable - BEP 48V
Cable I,
See: Table 9-39 - Main Power Supply Cables
3.
Cable, PC2GFI Card
Cable J, PCIe Express Cable
See: Table 9-40 - Card Rack Cables
4. Cable - DVD Power, FREY Cable K, See: Table 9-45 - Peripherals Cables
5. Cable, USB - XYZ Controller
Cable L, See: Table 9-38 - XYZ Motor/Brake Control cables
(J28 - BEP to XYZ Controller) USB Cable
6. Cable, SATA Cable - External to DVD Cable M, See: Table 9-45 - Peripherals Cables
7.
Cable, Audio Cable - BEP to
Subwoofer
5194498
Cable P
(J33 - Subwoofer). See:
Table 9-44 "New Subwoofer Cable Details" on page
9-99.
1Y
Table 9-42 Back End Processor (BEP) Internal Cables BEP6.x (R4.x and later) 2 of 2
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
MBOARD
SATA5
DVR BOARD
“DVD”
5439827-2 REV X #NAME# #ORIGIN# #DATE#
SATA
DVR AUDIO IN BEP CN AUDIO1
5435462...........
BEP J33
SUBWOOFER
5194498
