IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 9 Renewal Parts 9 - 99
8.
Cable - RCA Audio, BEP to
Silver Flute Subwoofer
5194498-2
Cable P
(J33 - Subwoofer). See:
Table 9-44 "New Subwoofer Cable Details" on page
9-99 .
1Y
9. Cable, USB - BW Printer Cable Q, See: Table 9-45 - Peripherals Cables
10. Cable, V Nav, Baybird Power Cable Y, See: Table 9-47 - Options
11. Cable, V Nav, USB BEP to BayBird Cable Z, See: Table 9-47 - Options

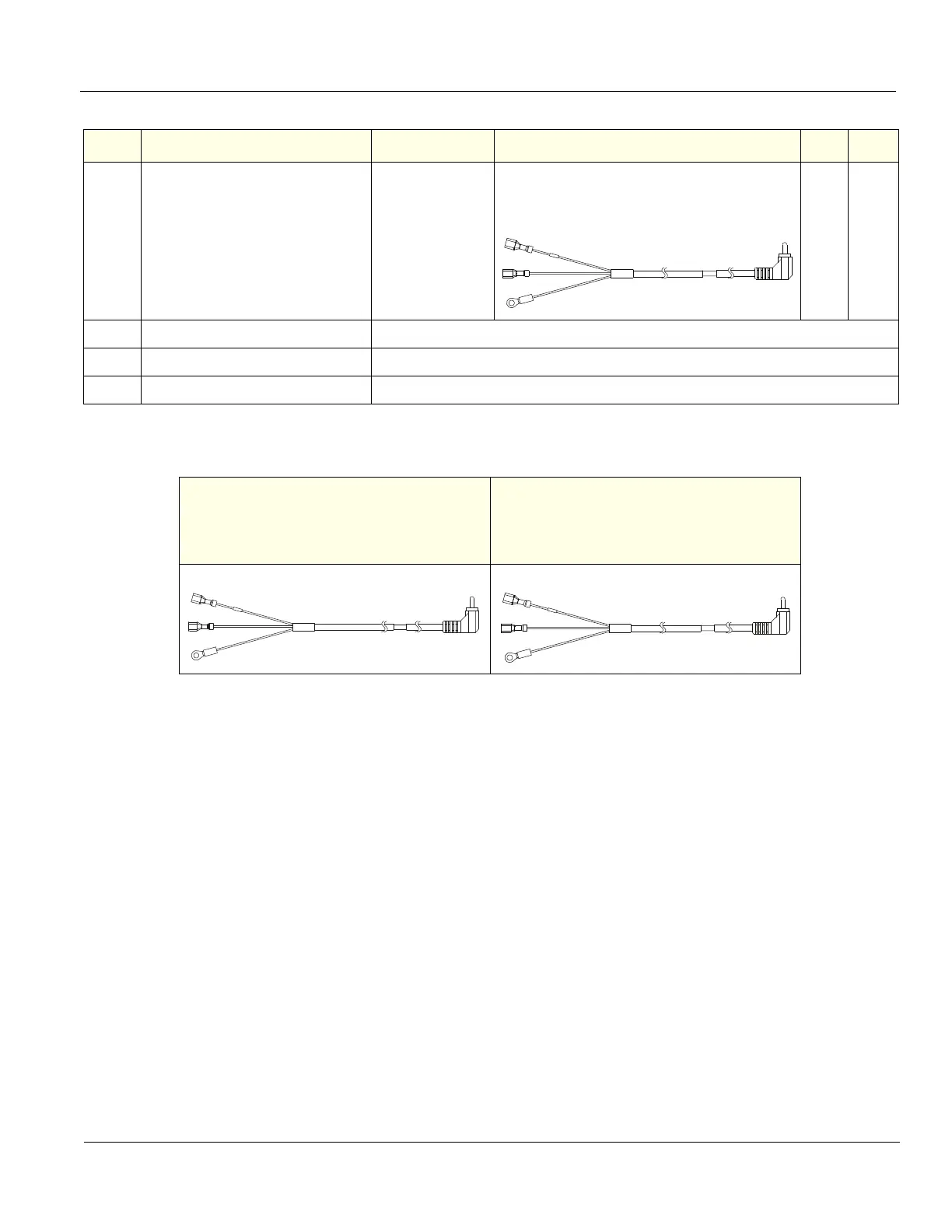

Table 9-44 New Subwoofer Cable Details
Subwoofer Cable P/N 5194498
NOT backward compatible. Replace like for
like, or P/N 5194498-2 can be used in
place of P/N 5194498.
Subwoofer P/N 5261127-2
Backward compatible.
Table 9-43 Back End Processor (BEP) External Cables 2 of 2 (Continued)
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
BEP J33
5194498-2 REV x
SUBWOOFER
BEP J33
SUBWOOFER
5194498
BEP J33
5194498-2 REV x
SUBWOOFER
