Peripherals Installation

LOGIQ V2/LOGIQ V1 – Basic Service Manual 3-27

5610739-100 English Rev.10

UP-D897 Printer Installation

Tools

No special tools needed.

Manpower

One person 5 min.

Preparations

1. Unpack the UP-D897 Printer.

Installation Procedure

1. Place the device in a suitable place.

2. Connect the USB Cable on the Printer.

3. Connect the power cord with the AC output in the wall outlet,

then turn on the printer.

4. Connect USB cable to LOGIQ V2/LOGIQ V1 USB port.

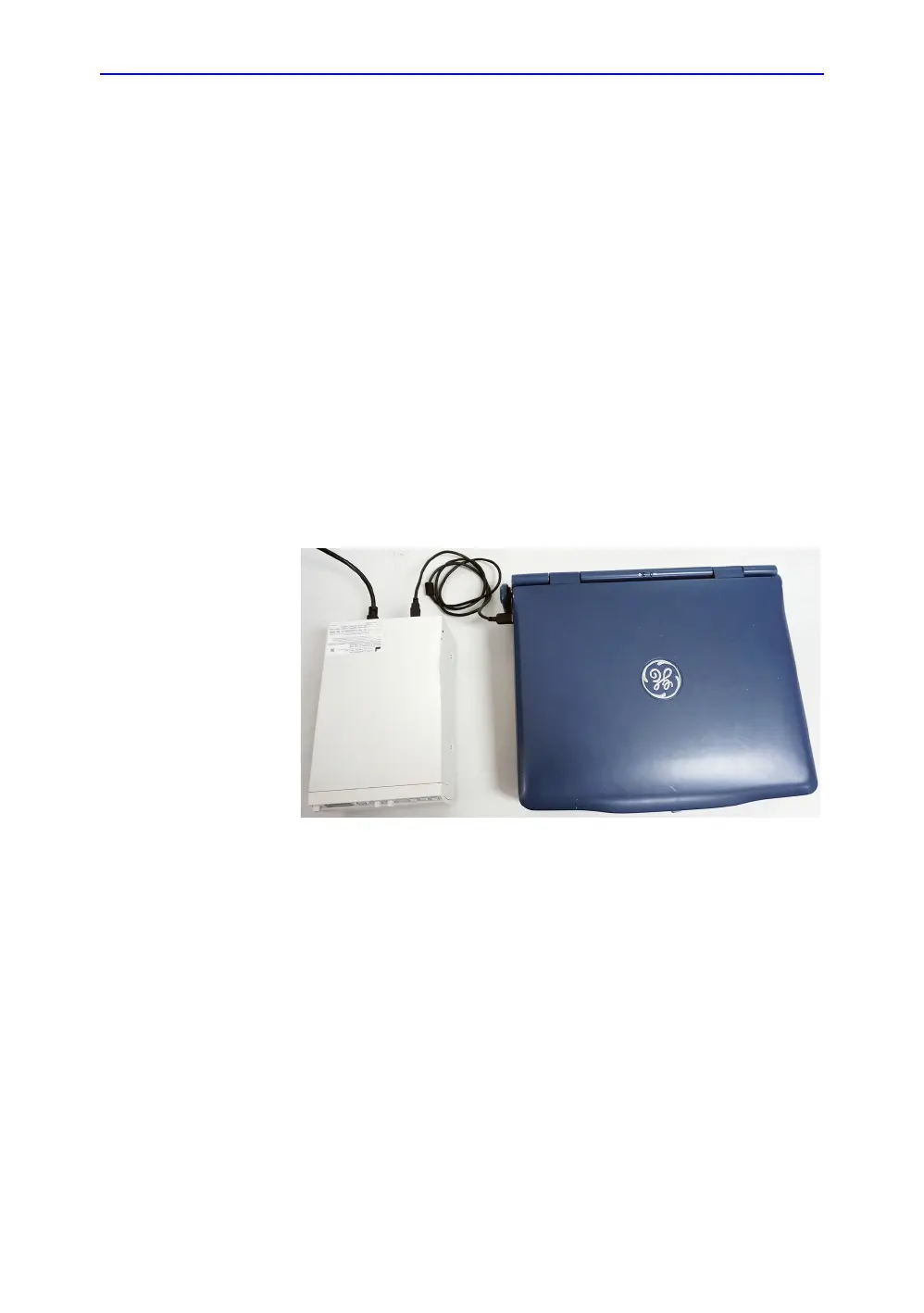

Figure 3-12. UP-D897 connection

5. Refer to the Connectivity configure steps of ‘Sony

UP-D25MD Printer Installation’ on page 3-22.
