Combustion Inspection — Inspection ProceduresInspection and Maintenance — GEK 107048
CI-I-21

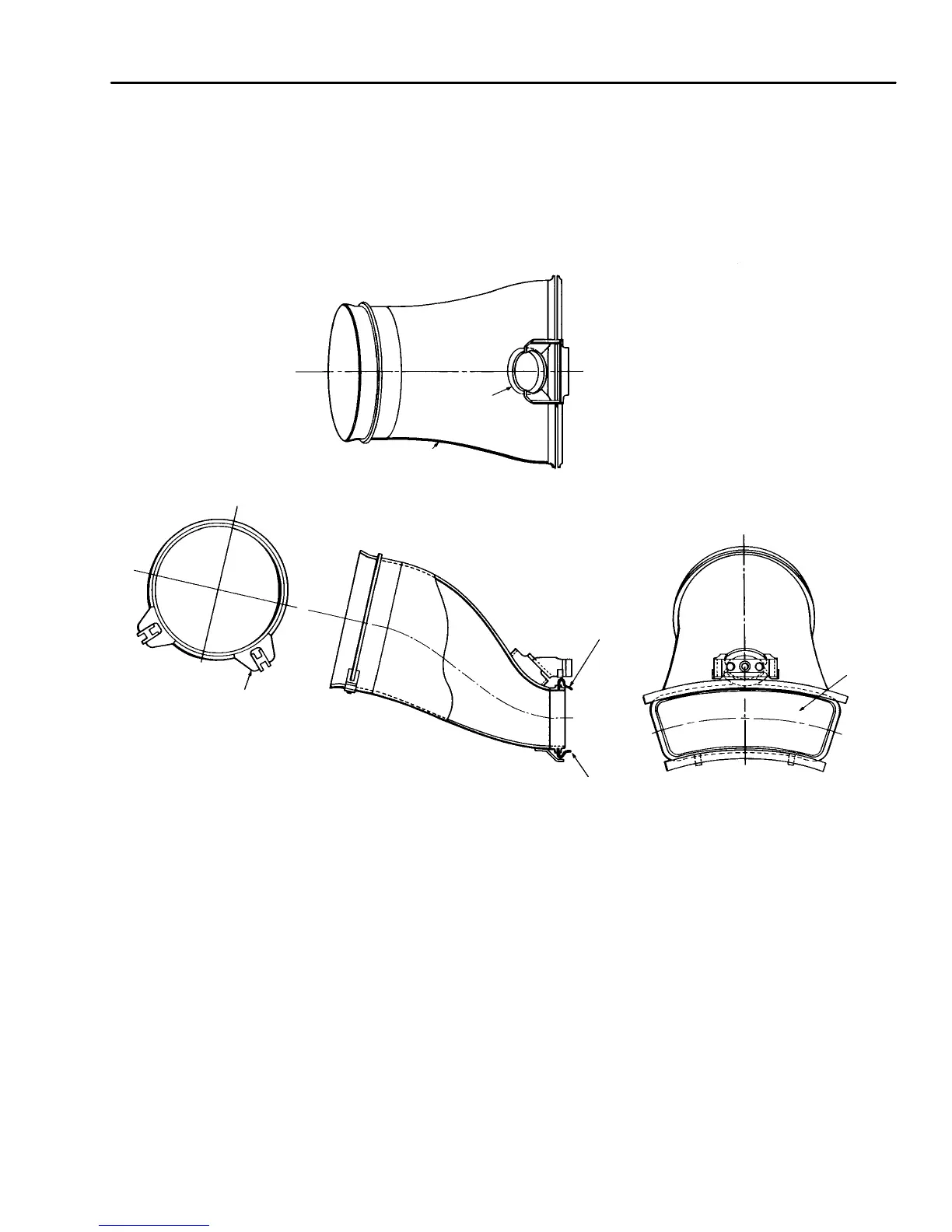

Figure CI-I.10. Transition Piece.
Aft
Support
Bracket
Body
TOP VIEW
Aft
Floating Seal
Floating Seal
Forward
Support
SIDE VIEW
Frame
