GE MS-6001B - Support Jack Locations for Compressor and Turbine Casings

Inspection and Maintenance — GEK 107048Hot Gas Path Inspection — Disassembly Procedures
HGP-D-6

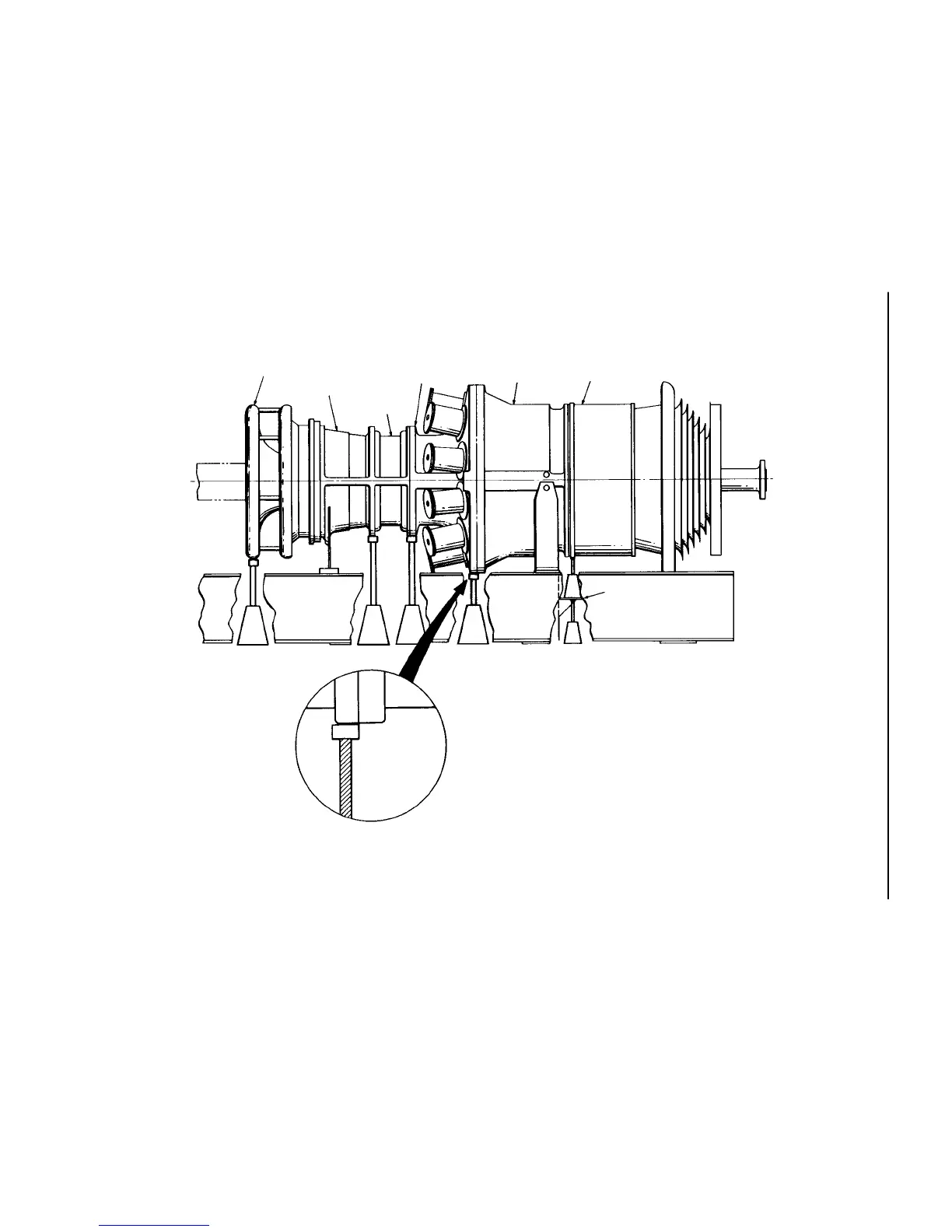

Figure HGP-D.2. Support Jack Locations for Compressor and Turbine Casings.
Inlet Bell
Forward
Compressor
Casing
Aft
Compressor
Casing
Compressor
Discharge
Casing
Turbine
Casing
Exhaust
Frame
Jacking Platform
Mechanical Jacks
NO. 3NO. 4NO. 5NO. 1
Turbine – Flange To Flange
Weight = 91,650 lbs.
NOTE:
Position No. 5 is not
Required if Compressor
Casing is a Single Piece
Casing. (No Aft Casing)
