GE MS-6001B - First-Stage Nozzle Support Ring with Support Pad

Hot Gas Path Inspection — Reassembly ProceduresInspection and Maintenance — GEK 107048
HGP-R-11

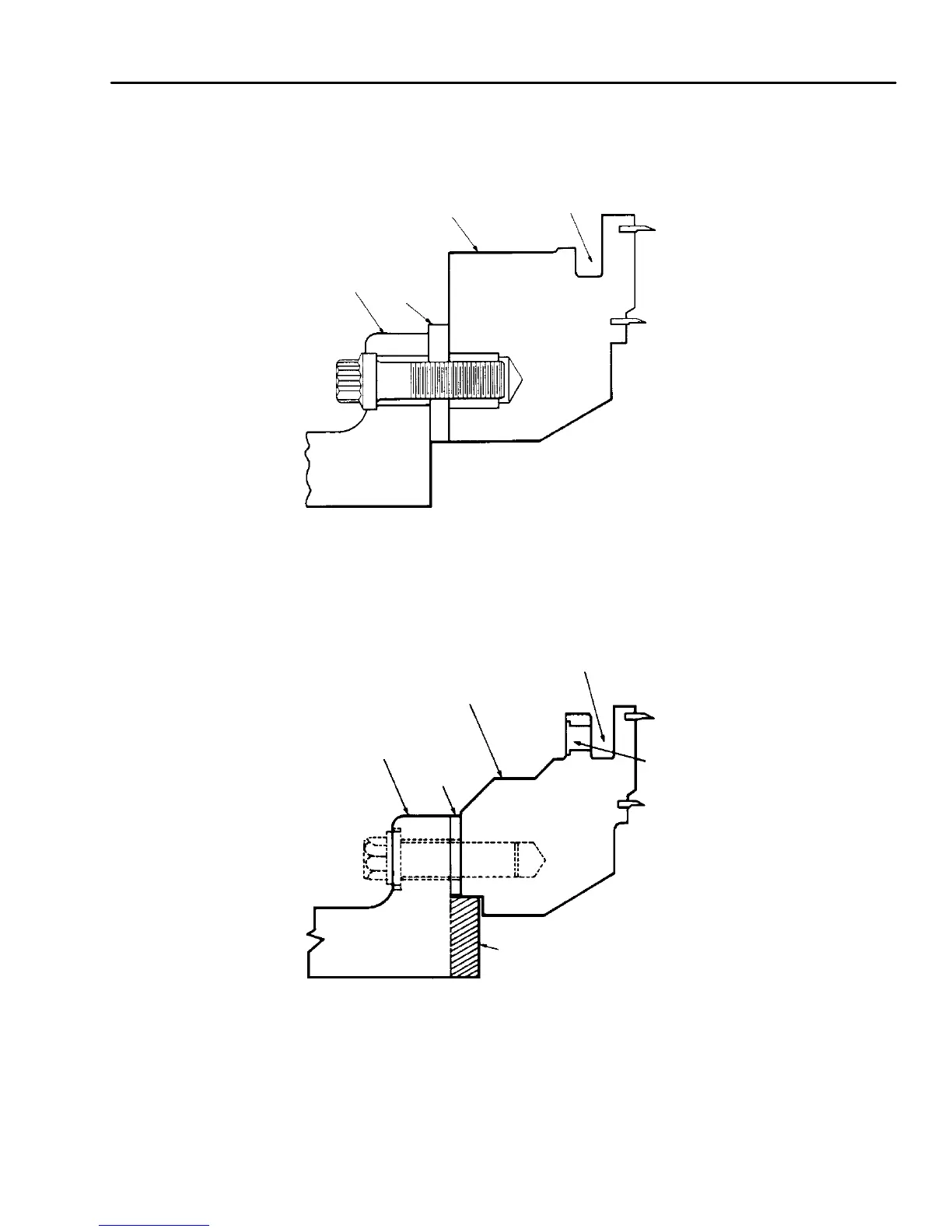

Figure HGP-R.5. First-Stage Nozzle Support Ring with Support Pad or Tangential Pin Groove.
First Stage Nozzle Support Lug
and Support Pad Seal Groove
First Stage Nozzle With
Support Pad and Support
Pad Retainer
Shim
Inner Barrel Compressor
Discharge Casing
First Stage Nozzle
Support Lug Groove
Offset
Bushing
Hole
First Stage Universal
Nozzle Support Ring
Shim
Inner Barrel
Compressor Discharge
Casing
Inner Barrel Rabbet
