GE MS-6001B - First-Stage Nozzle Lifting Angles for Support Pad; Pin Type Nozzle

Hot Gas Path Inspection — Disassembly ProceduresInspection and Maintenance — GEK 107048
HGP-D-21
1.90 Max.
Lifting Angle
(Welded On Retaining Ring 27°
From Vertical Centerline)
2 On Top Half
4 On Lower Half
Bolt (1.00–8)
Tapped In Lower Half
(2 Each Side)
Dowel Pin
(2 Each Side)
Retaining
Ring
Nozzle
(9 Each Half)
Tangential
Support Pin
Retaining
Ring
Nozzle
(9 Each Half)
Support Pad
Retainer
Support Pad
27°
27°
27°
27°
30°
30°

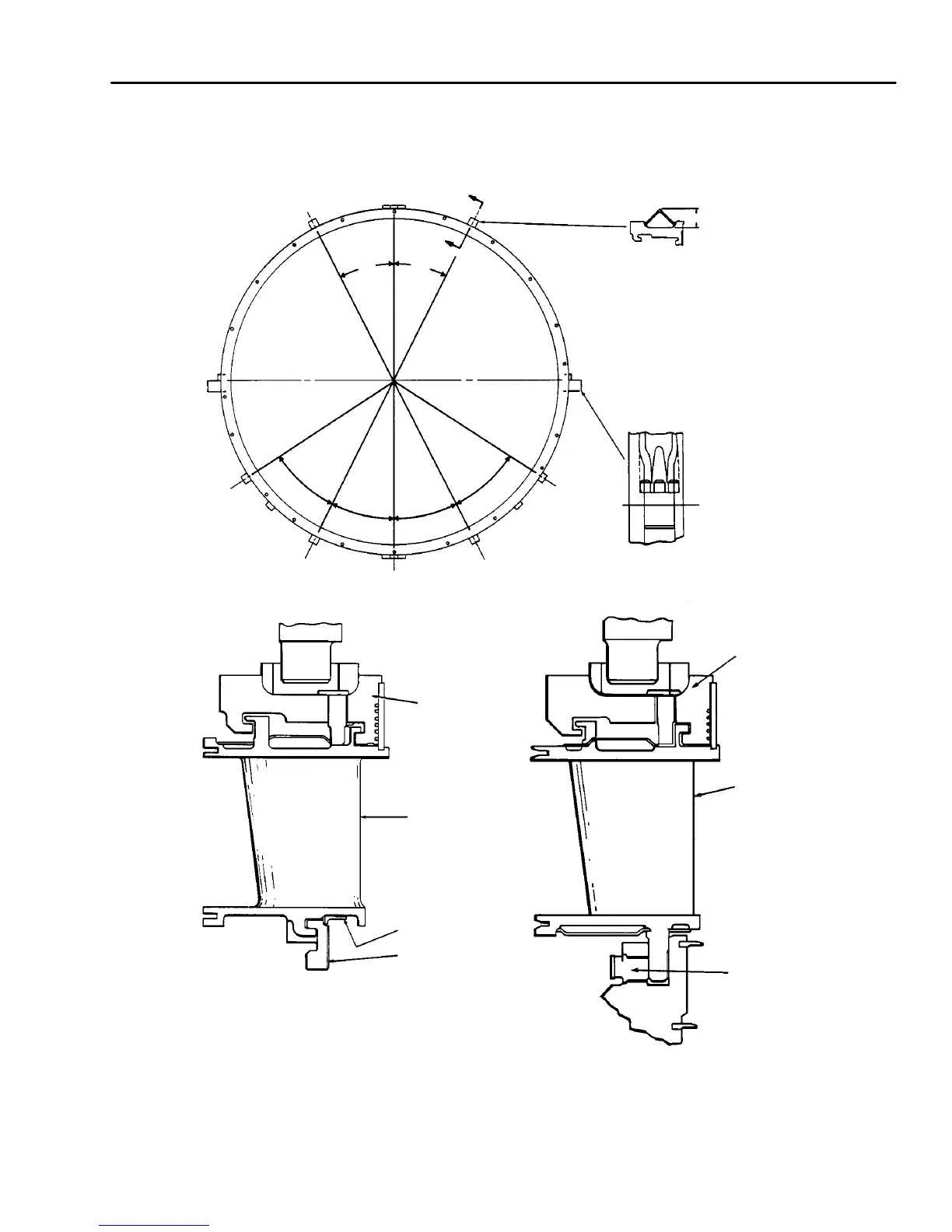

Figure HGP-D.12. First-Stage Nozzle Lifting Angles for Support Pad and or Support Pin Type Nozzle.
