GE MS-6001B - Loading for Second-Stage Nozzle Clearances; Loading for Third-Stage Nozzle Clearances

Inspection and Maintenance — GEK 107048Hot Gas Path Inspection — Disassembly Procedures
HGP-D-14

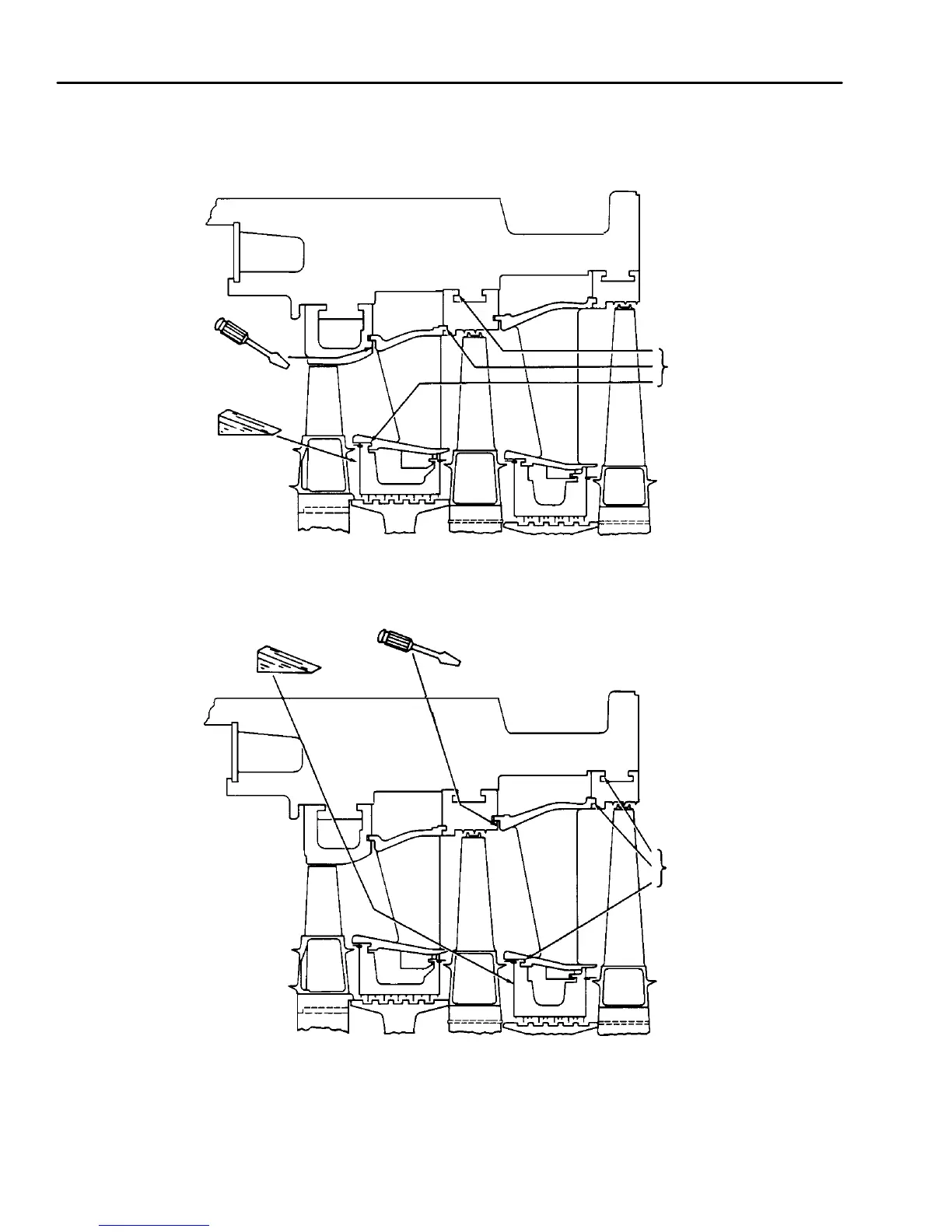

Figure HGP-D.5. Loading for Second-Stage Nozzle Clearances.
Figure HGP-D.6. Loading for Third-Stage Nozzle Clearances.
Screwdriver
Wooden
Wedge
These Gaps Must
Be Closed On Left
and Right Sides
When Taking 2nd
Stage Readings
Wooden Wedge
Screwdriver
These Gaps Must
Be Closed On Left
and Right Sides
When Taking 3rd
Stage Readings
