10. Click OK when the relay order code has been received. The new device will be added
to the Site List window (or Online window) located in the top left corner of the main
EnerVista 8 Series Setup software window.
The 850 Site Device has now been configured for Ethernet communications. Proceed to
the following section to begin communications.
Connecting to the
Relay
Now that the communications parameters have been properly configured, the user can
easily communicate with the relay.
1. Expand the Site list by double clicking on the site name or clicking on the «+» box to
list the available devices for the given site.
2. Desired device trees can be expanded by clicking the «+» box. The following list of
headers is shown for each device:
Device Definition
Status
Metering
Quick Setup
Setpoints
Records
Maintenance.

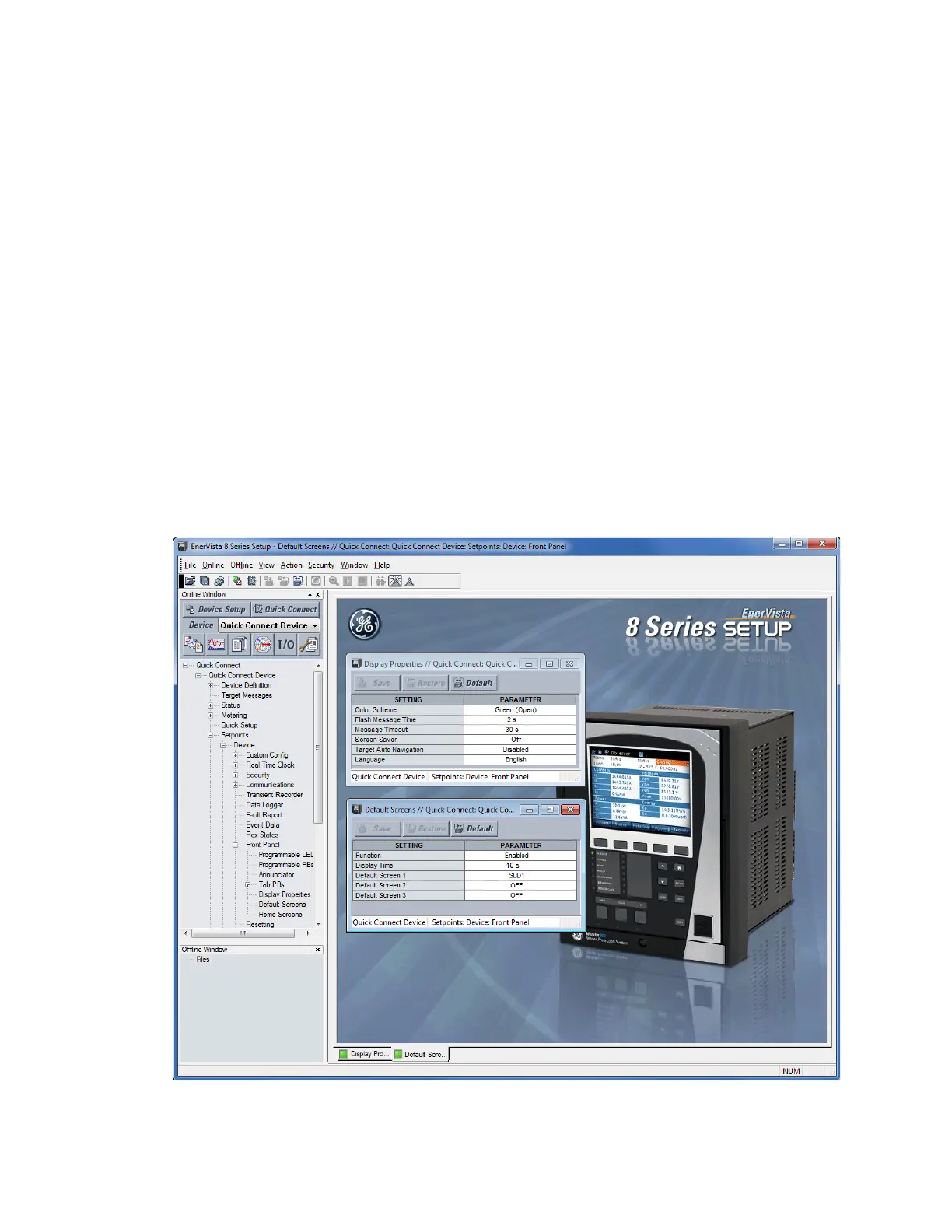

3. Expand the Setpoints > Device > Front Panel list item and double click on Display
Properties or Default Screens to open the settings window as shown:
4. The settings window opens with a corresponding status indicator on the lower left of
the window.
