CHAPTER 3: INTERFACES SOFTWARE INTERFACE
850 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL 3–51
Protection Summary Protection Summary is a single screen which holds the summarized information of
different settings from Grouped Elements and Monitoring Elements.
The Protection Summary Screen allows the user to:
• view the output relay (R3, R4) assignments for the elements
• modify the output relay assignments for the elements
• view the Function status for the elements
• navigate to the respective element screen on a button click.

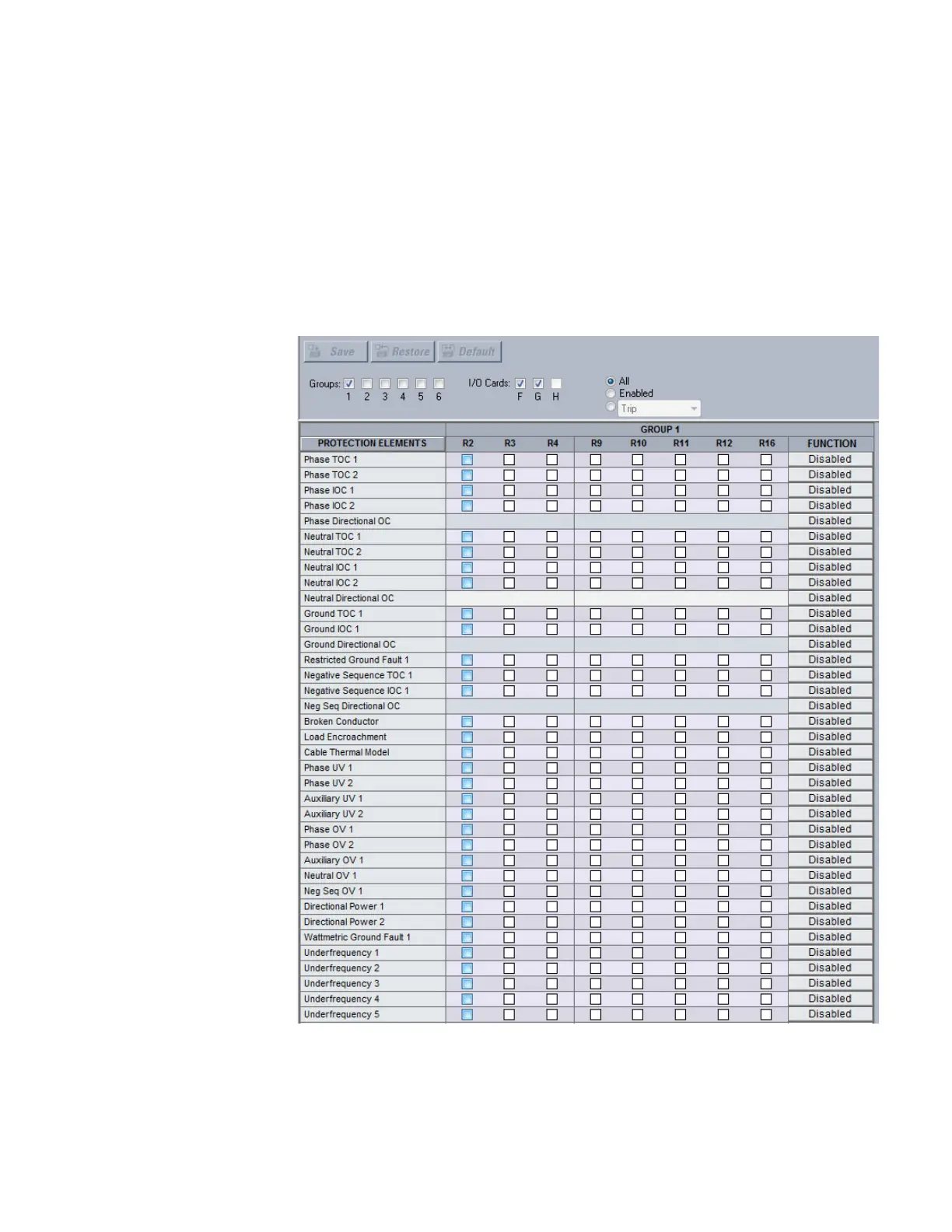

With the software running and communications established, select the Setpoints >
Protection Summary menu item to open the Protection Summary window. The Protection
Summary screen is as follows:
