CHAPTER 4: SETPOINTS SYSTEM
850 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL 4–83

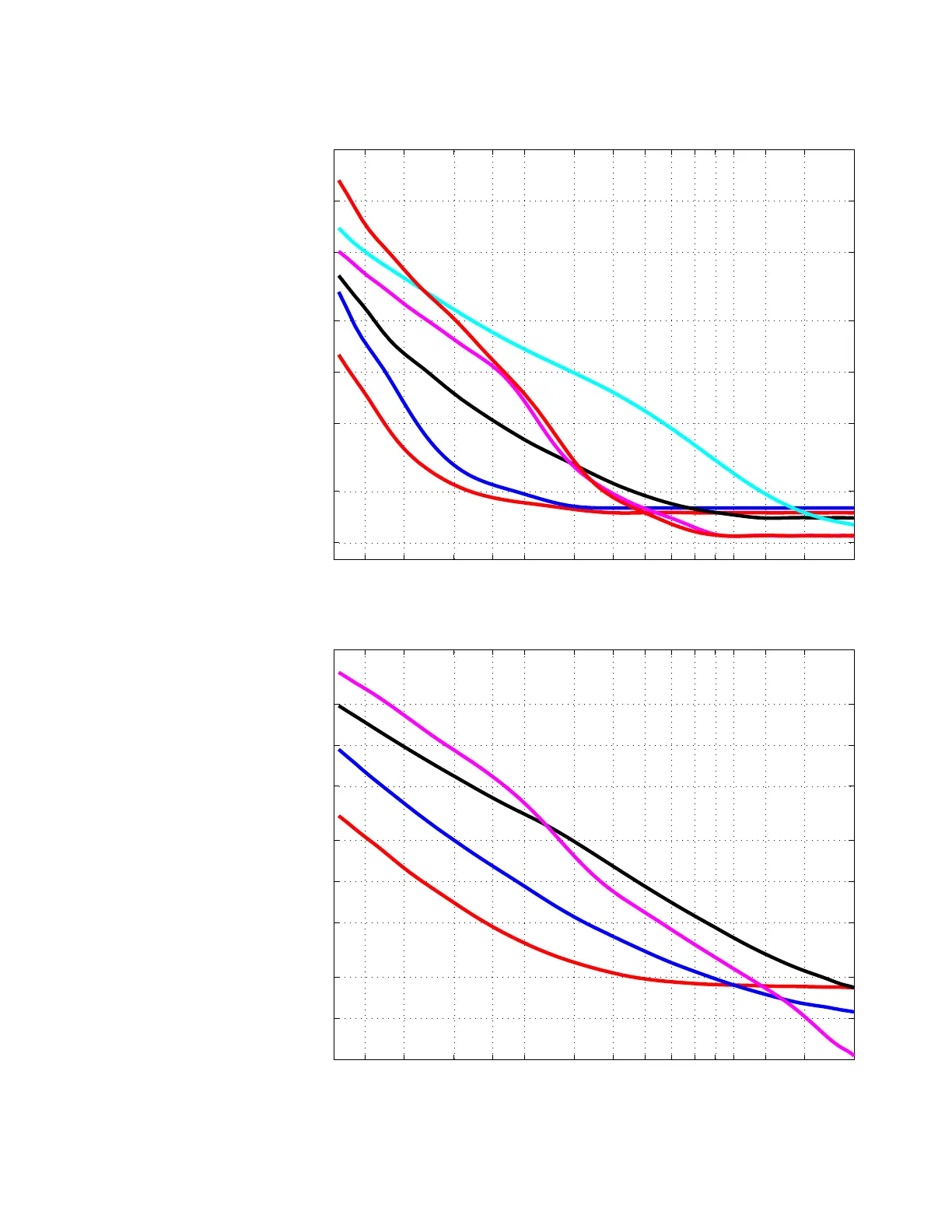

Figure 4-22: Recloser Curves GE101 TO GE106
Figure 4-23: Recloser Curves GE113, GE120, GE138 AND GE142
GE104
1 1.2 1.5 2 2.5 3 4 5 6 7 8 9 10 12 15 20
0.01
0.02
0.05
0.1
0.2
0.5
1
2
CURRENT (multiple of pickup)
TIME (sec)
GE101
GE102
GE103
GE106
GE105
842723A1.CDR
1 1.2 1.5 2 2.5 3 4 5 6 7 8 9 10 12 15 20
0.05
0.1
0.2
0.5
1
2
5
10
20
50
CURRENT (multiple of pickup)
TIME (sec)
GE113
GE142
GE138
GE120
842725A1.CDR
