CHAPTER 6: METERING
850 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL 6–3
All the measured values can be viewed on the front panel display or monitored by remote

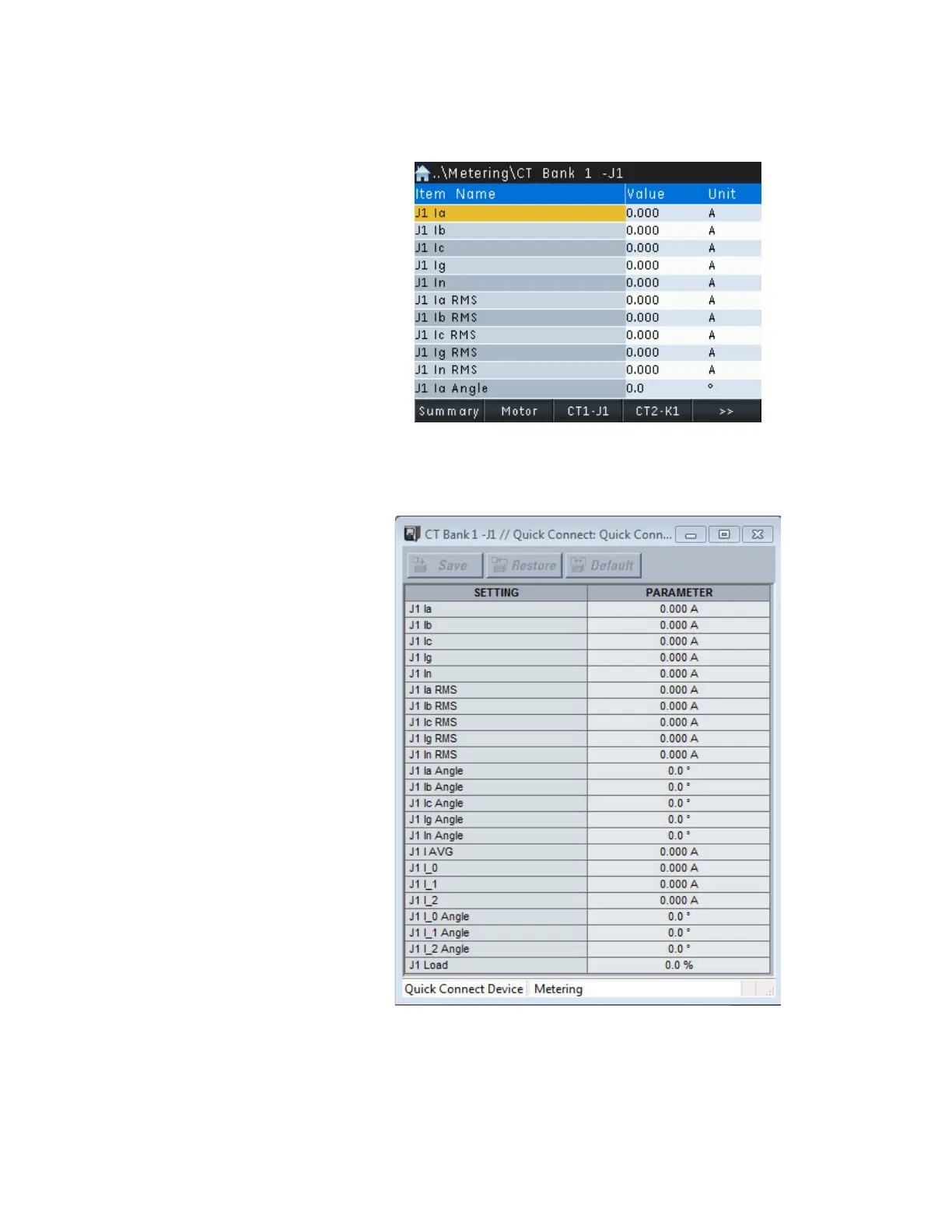

devices through the communication system. An example of the HMI display showing
actual currents is shown here.
The measured values can also be displayed in the PC (EnerVista 8 Series) program. The
same example of actual currents displayed in the EnerVista 8 Series program is shown as
follows.
Figure 6-4: Current Metering Screen (EnerVista 8 Series)
The complete list of actual values available in the Metering menu is covered in the
following sections.
