2–14 850 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL
ELECTRICAL INSTALLATION CHAPTER 2: INSTALLATION

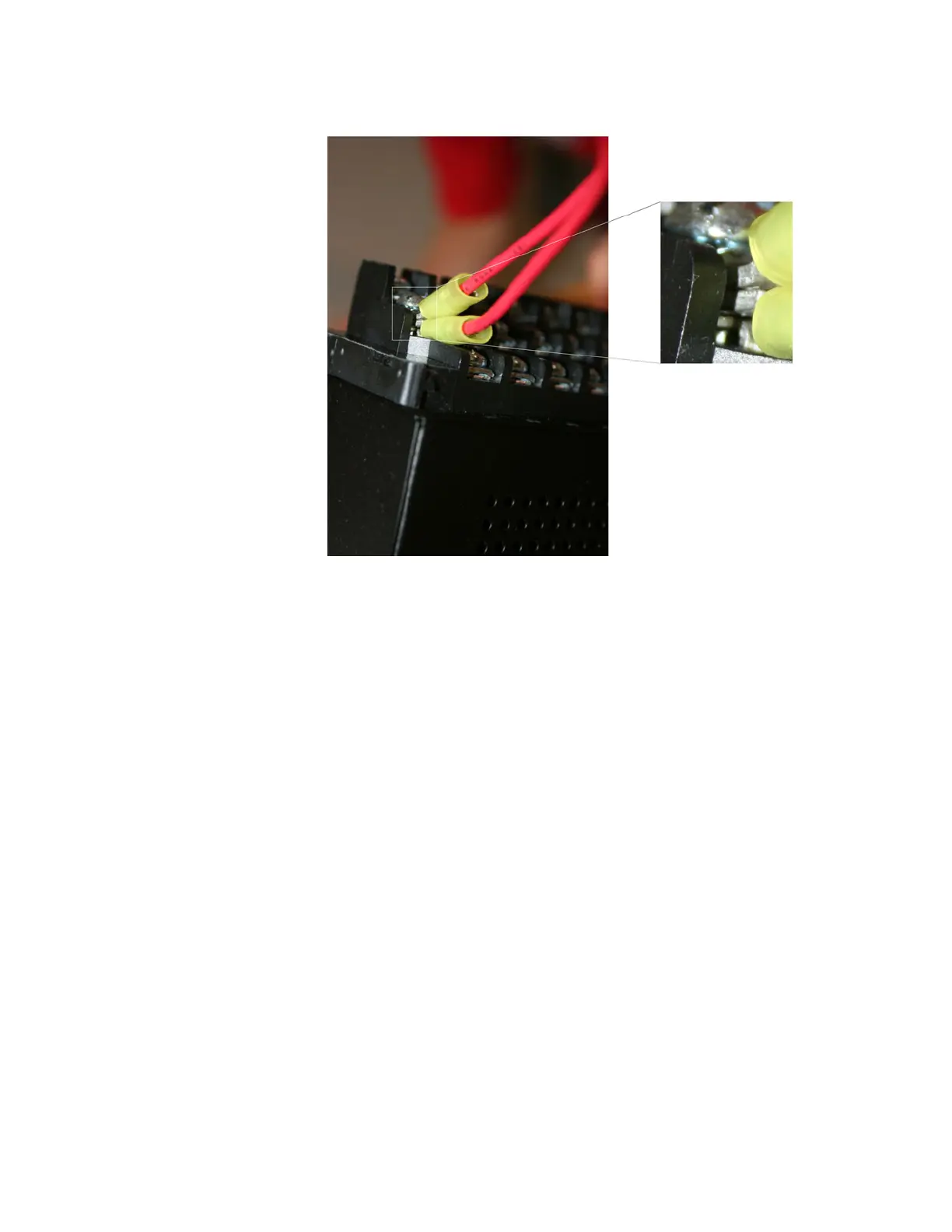

Figure 2-17: INCORRECT INSTALLATION METHOD (lower lug reversed)
A broad range of applications are available for the 850 relays. As such, it is not possible to
present typical connections for all possible schemes. The information in this section covers
the important aspects of interconnections, in the general areas of instrument transformer
inputs, other inputs, outputs, communications and grounding. The figure below shows the
rear terminal layout of the 850
Platform.
