CHAPTER 13: RAPID SPANNING TREE PROTOCOL RAPID SPANNING TREE PROTOCOL
MULTILINK ML3000 ETHERNET COMMUNICATIONS SWITCH – INSTRUCTION MANUAL 13–21
To configure ring-only mode, ensure the first three of the four situations described above
are met.

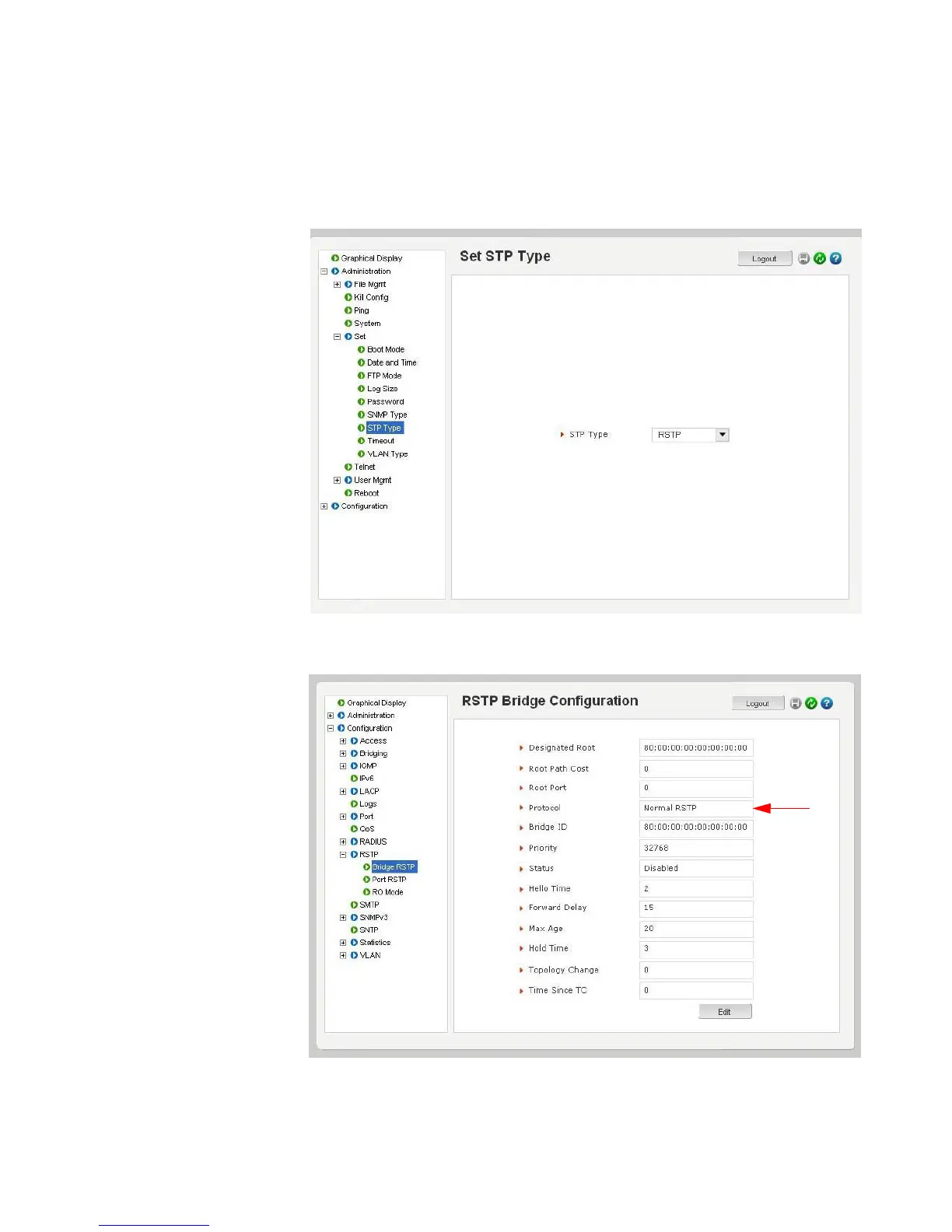

To enable ring-only mode, first
Enable RSTP by setting the STP Type to RSTP in the Administration >
Set > STP Type menu:
Select the Configuration > RSTP > Bridge RSTP menu as shown
below.
Click the Edit button to configure RSTP.
Once in Edit mode, change the Status to Enable.
