CHAPTER 13: RAPID SPANNING TREE PROTOCOL RAPID SPANNING TREE PROTOCOL
MULTILINK ML3000 ETHERNET COMMUNICATIONS SWITCH – INSTRUCTION MANUAL 13–23
Note

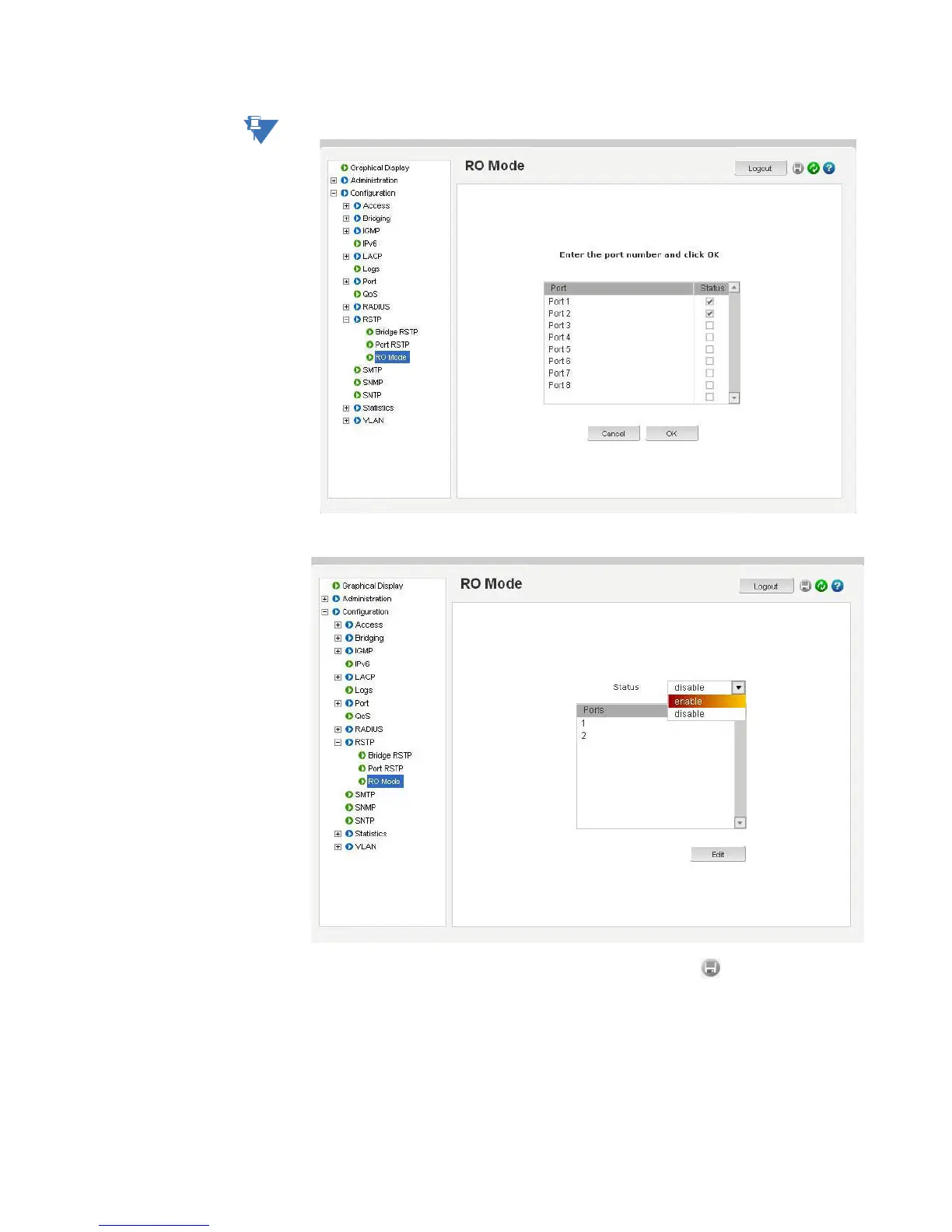

Only 2 ports can be selected to Ring Only Mode.
Select the Enabled option for the Status setting as shown below:
Save the configuration by clicking on the icon.
13.3.2.2 For One or More Switches Running on Firmware Version 2.x or Lower
A ring is a special case mesh structure. In many networks, network managers prefer to
create a ring structure for topological redundancy and simplicity. In a ring structure special
case:
1. All switches in the network are GE Multilin switches.
