CHAPTER 17: LACP LACP
MULTILINK ML3000 ETHERNET COMMUNICATIONS SWITCH – INSTRUCTION MANUAL 17–13
The orphan status displays the reason why the ports were not members of the LACP trunk.
The links are down – i.e. the ports were not connected. After the other switch is configured
with the proper LACP settings, the RJ-45 cables should be plugged in to enable LACP.

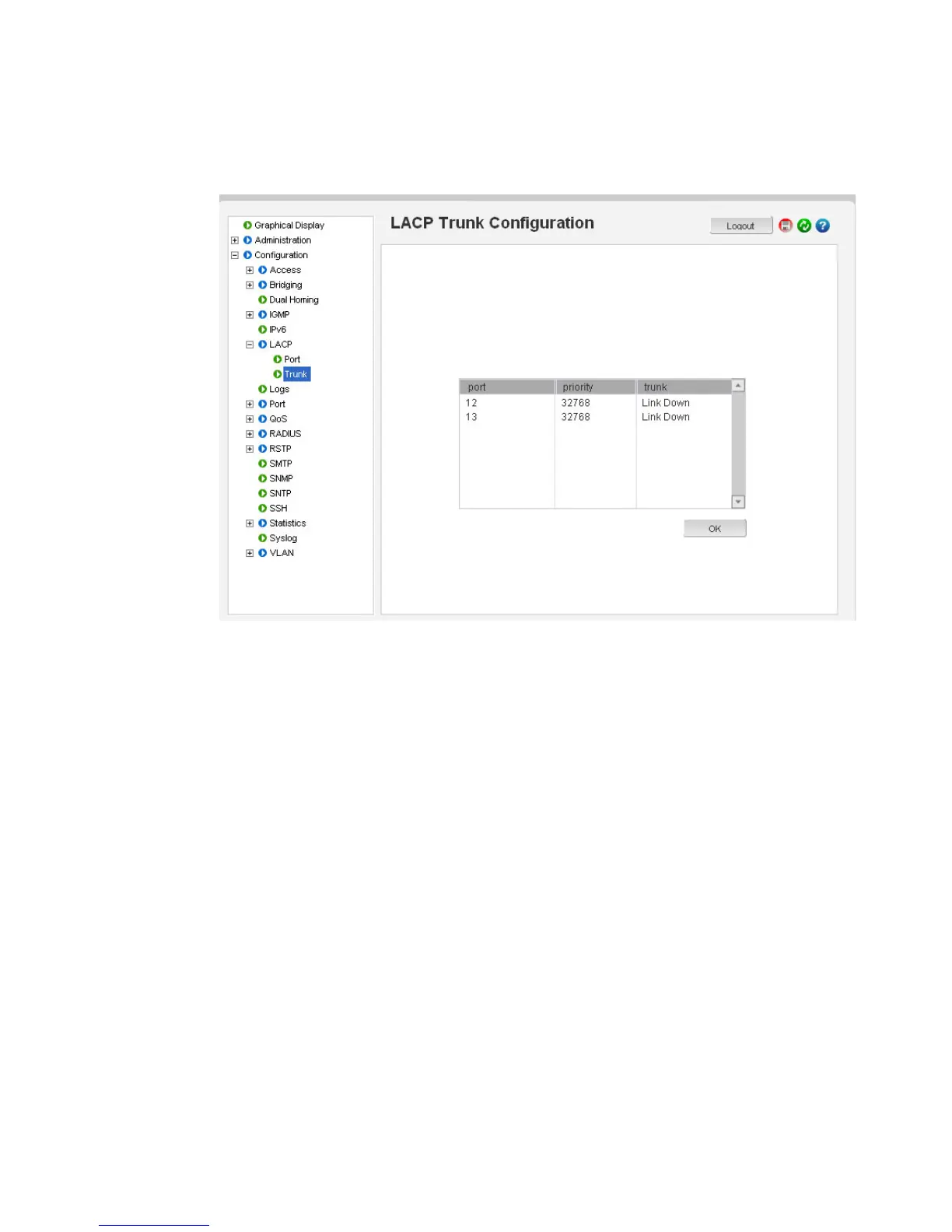

Figure 17-15: Orphan Status Display
Only after the other switch is configured with the proper LACP settings, the Ethernet cables
should be plugged into both the switches to enable LACP. After that is done, the Trunk
menu displays the LACP trunks which are active.
Finally – save the configuration using the Save icon.
