CHAPTER 5: IP ADDRESSING IP ADDRESSING

MULTILINK ML3000 ETHERNET COMMUNICATIONS SWITCH – INSTRUCTION MANUAL 5–13

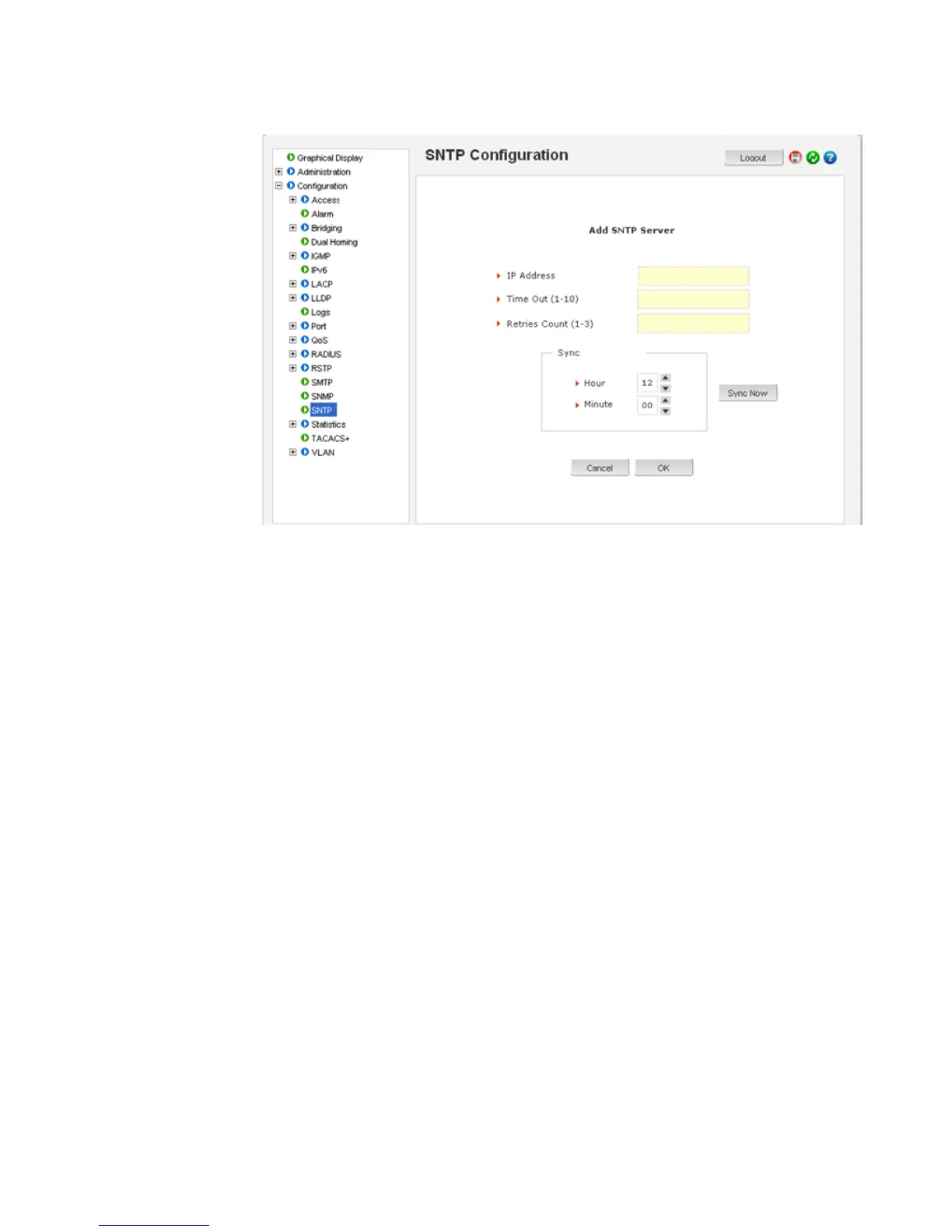

The Time Out value is in seconds. Note the time server can be a NTP server available on

the Internet. Ensure the IP parameters are configured for the switch and the device can be

pinged by the switch. Once the server is added, it is listed with the other SNTP servers.
