SecoGear Medium-voltage Switchgear Application and Technical Guide DET-882
SecoGear Switchgear Concepts and Basic Configurations
8 ©2017 General Electric All Rights Reserved

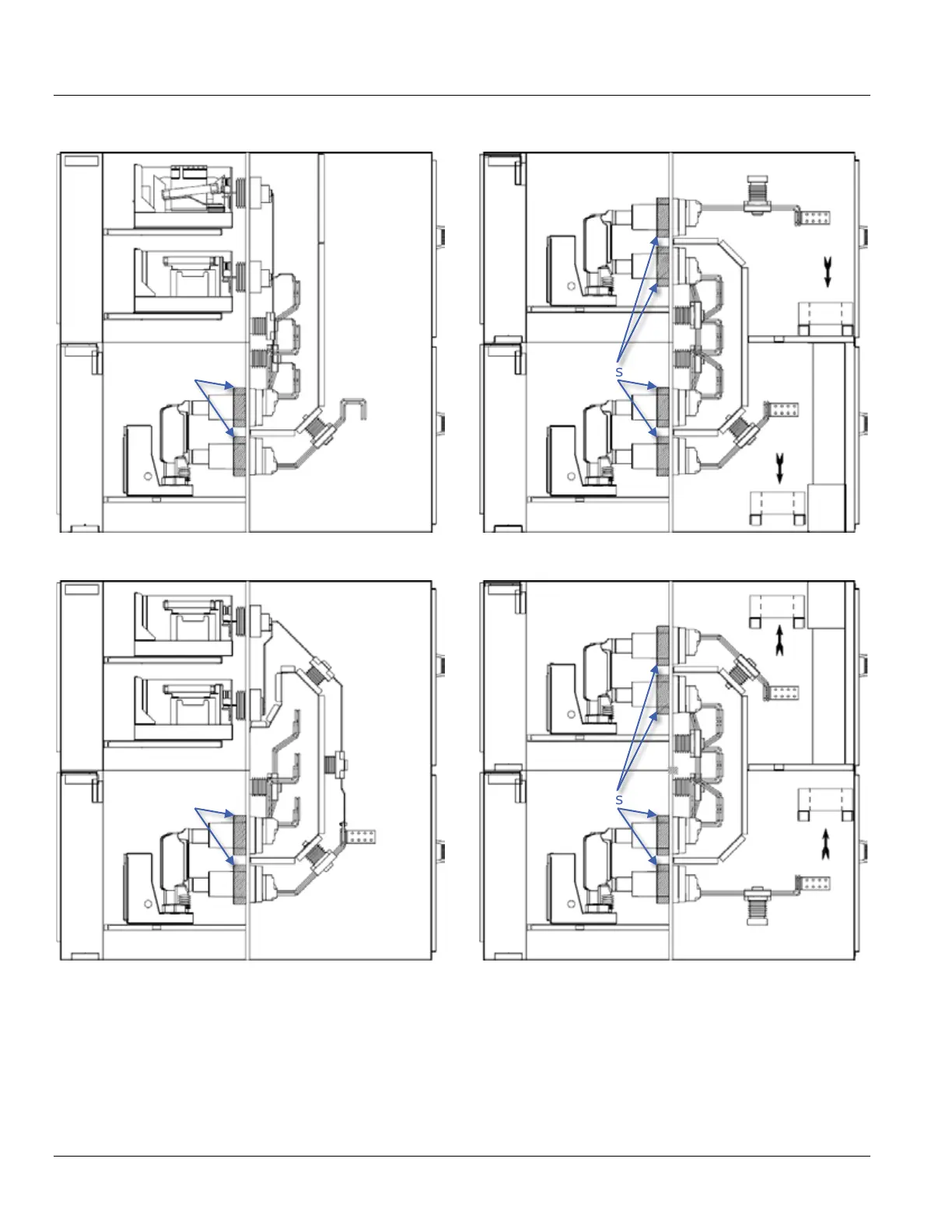

Figure 1-19: Breaker in Compartment B, Bus-connected
VTs and CPT in Compartment A
Figure 1-20: Breaker in Compartment B, Line-connected
VT Rollouts in Compartment A
Figure 1-21: Typical Two-high Breaker Section –
Cabling Below
Figure 1-22: Typical Two-high Breaker Section –
Cabling Above
A
B
A
B
A
B
A
B
