GE SecoGear Application Guide

SecoGear Medium-voltage Switchgear Application and Technical Guide DET-882
Standard SecoGear Construction, Features, and Installation
56 ©2017 General Electric All Rights Reserved
An optional racking mechanism (installed in the factory, as
a part of the SecoVac VB2+ breaker), can use a motor for
racking the breaker in and out of the compartment. To
completely remove a SecoVac VB2+ circuit breaker, you
must use the provided lift truck.
CAUTION
To avoid possible damage to the racking mechanism, do
not continue to turn the racking handle after the breaker
has reached the “Connect” or “Disconnect/Test”
position.

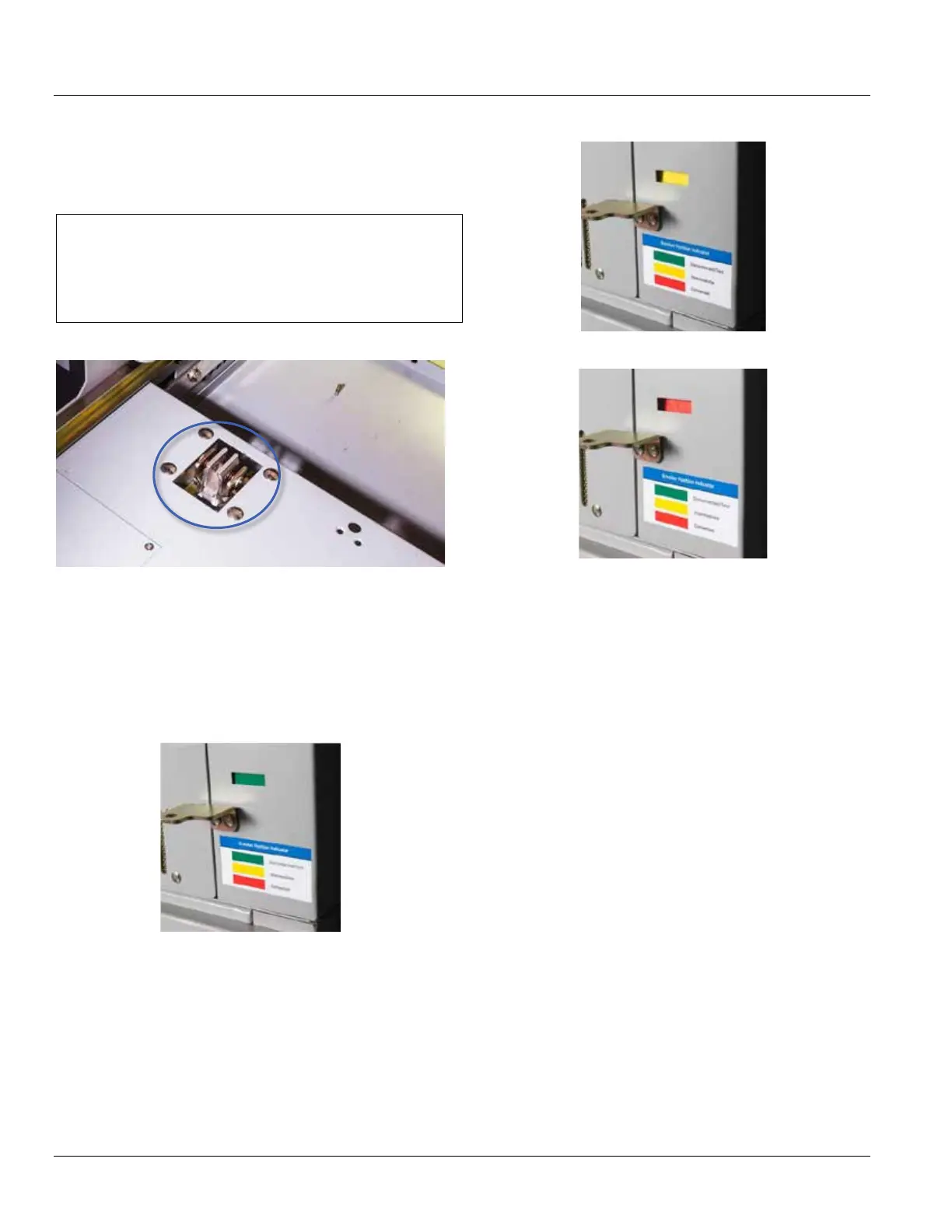

Figure 6-2: Ground Shoe in Breaker Cell
Visual Breaker Position Indication
The breaker compartments are provided with a visual
indication for breaker position. The indicator shows
whether the breaker is in the Disconnected/Test,
Intermediate, or Connected position by color. See
Figure 6-3, Figure 6-4, and Figure 6-5.
Figure 6-3: Breaker Position – Disconnected (Green)
Figure 6-4: Breaker Position – Intermediate (Yellow)
Figure 6-5: Breaker Position – Connected (Red)
Auxiliary Compartments
Rollout trays are provided in primary auxiliary
compartments for mounting voltage transformers (VTs),
control power transformers (CPTs) or CPT fuses. Two rollout
trays can be accommodated in the bottom primary
auxiliary compartment and two in the top compartment.
Compartment Doors
Doors can be provided with an optional door stop.
Figure 6-6 shows a typical door stop for an upper
compartment front door.
