User Manual TLE Series 600 & 800 CE S1

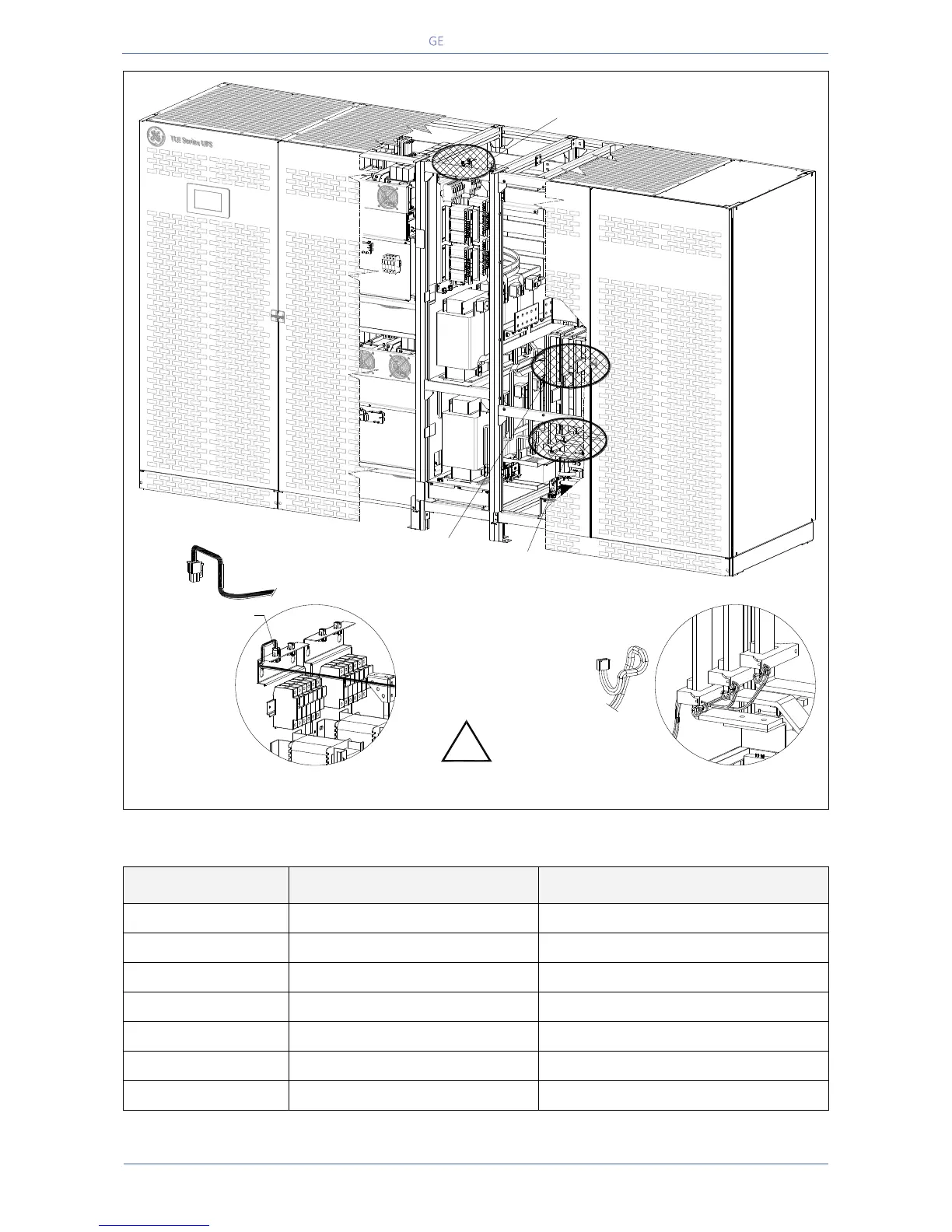

Fig. 5.7.3-6 TLE Series 800 – Control cables interconnection
Connection
From (already connected)
To
XTR2A - Connector
“In/Out Section cabinet”
“Power Section cabinet” - XTR2 Connector
H9
“Power Section cabinet”
“In/Out Section cabinet” – H9 LEM
H10
“Power Section cabinet”
“In/Out Section cabinet” – H10 LEM
H11
“Power Section cabinet”
“In/Out Section cabinet” – H11 LEM
H13
“Power Section cabinet”
“In/Out Section cabinet” – H13 LEM
H14
“Power Section cabinet”
“In/Out Section cabinet” – H14 LEM
H15
“Power Section cabinet”
“In/Out Section cabinet” – H15 LEM
XTR2A
XTR2A
XTR2A connector
H9-10-11
H13-14-15
The cables must be fixed
and do not touch
the bus bars
!
In/Out Section cabinet
Power Section cabinet
TLES_800_S1_UPS connection cabinets_GE_04GB
H13-14-15
H9-10-11
