REF. DESCRIPTION DL7 DL9 DL11 DL12
NO.
01 WARNING - SEAT BELT AND PARK BRAKE 101506 101506 101506 101506
02 IGNITION 101507 101507 101507 101507
03 DANGER - PERSONNEL INJURY (units w/o PWP) L65928 L65928 L65928 L65928
04 WARNING - CARRY LOAD LOW 093475 093475 093475 093475
05 DANGER - HI-VOLT/MOVING PARTS L70307 L70307 L70307 L70307
06 WARNING - TILT HAZARD/GENL. OPER. L70306 L70306 L70306 L70306
07 JOYSTICK CONTROL (dual function w/ two buttons) L71377 L71377 L71377 L71377
JOYSTICK CONTROL (tri-function w/ four buttons) L71332 L71332 L71332 L71332
08 MADE IN USA 140516 140516 140516 140516
09 F-N-R SHIFTER L68295 L68295 L68295 L68295
10 FUSES/RELAYS REFERENCE 101451 101451 101451 101451
11 MAINTENANCE CHART L70243 L70243 L70243 L70243
12 OPERATOR MANUAL 100359 100359 100359 100359
13 WARNING - NO RIDERS L65932 L65932 L65932 L65932
14 SHIFTER 1,2,3,4 L500439 L500439 L500439 L500439
15 ROPS FOPS WARNING 105099 105099 105099 105099
16 LOAD ZONE CHARTS See Note See Note See Note See Note
17 PWP LOADCHART USAGE (units w/o PWP) 103376 103376 103376 103376
Note: See Load Zone Charts section of this manual for individual load zone chart part numbers.

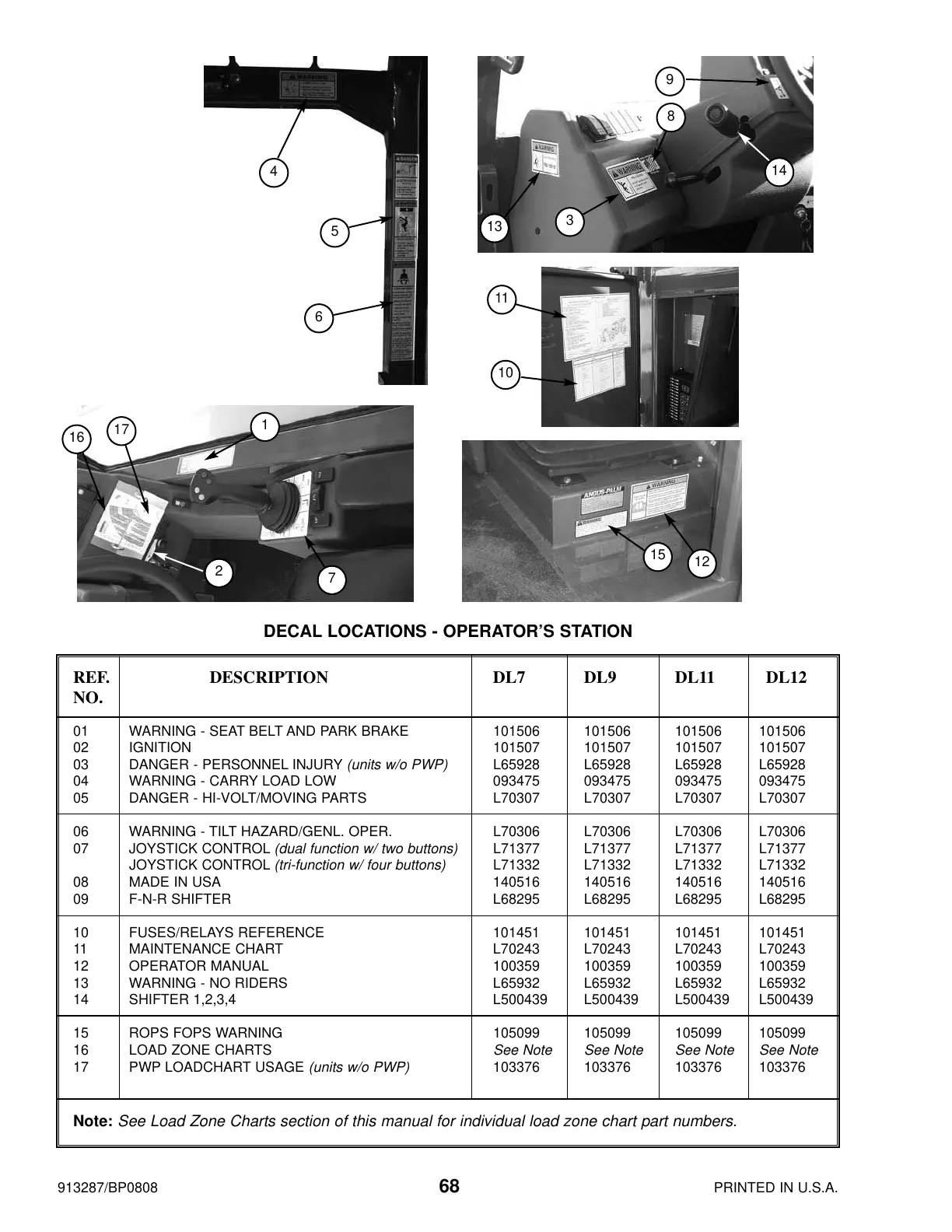

DECAL LOCATIONS - OPERATOR’S STATION
