913287/BP0808 28 PRINTED IN U.S.A.

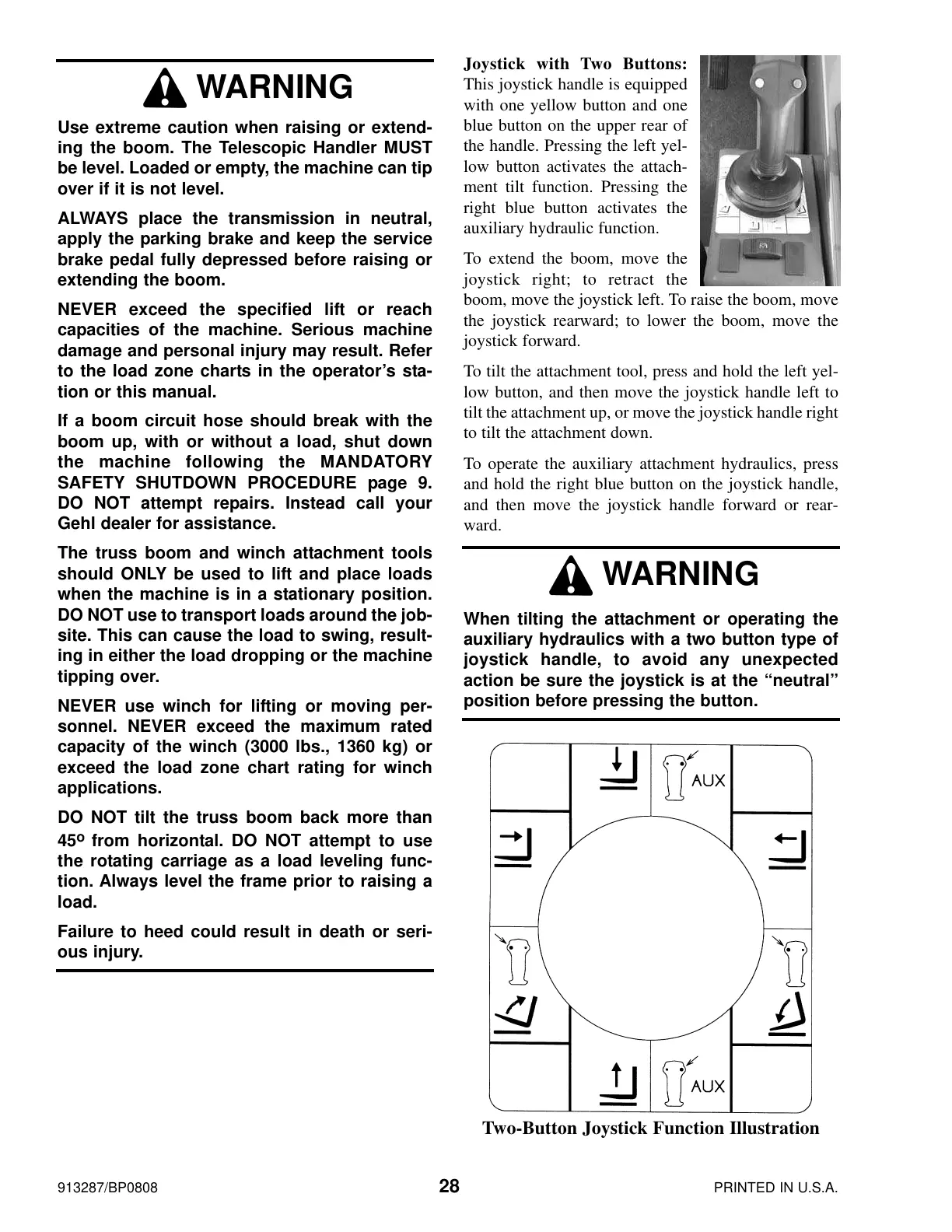

Joystick with Two Buttons:
This joystick handle is equipped
with one yellow button and one
blue button on the upper rear of
the handle. Pressing the left yel-
low button activates the attach-
ment tilt function. Pressing the
right blue button activates the
auxiliary hydraulic function.
To extend the boom, move the
joystick right; to retract the
boom, move the joystick left. To raise the boom, move
the joystick rearward; to lower the boom, move the
joystick forward.
To tilt the attachment tool, press and hold the left yel-
low button, and then move the joystick handle left to
tilt the attachment up, or move the joystick handle right
to tilt the attachment down.
To operate the auxiliary attachment hydraulics, press
and hold the right blue button on the joystick handle,
and then move the joystick handle forward or rear-
ward.
WARNING
When tilting the attachment or operating the
auxiliary hydraulics with a two button type of
joystick handle, to avoid any unexpected
action be sure the joystick is at the “neutral”
position before pressing the button.
WARNING
Use extreme caution when raising or extend-
ing the boom. The Telescopic Handler MUST
be level. Loaded or empty, the machine can tip
over if it is not level.
ALWAYS place the transmission in neutral,
apply the parking brake and keep the service
brake pedal fully depressed before raising or
extending the boom.
NEVER exceed the specified lift or reach
capacities of the machine. Serious machine
damage and personal injury may result. Refer
to the load zone charts in the operator’s sta-
tion or this manual.
If a boom circuit hose should break with the
boom up, with or without a load, shut down
the machine following the MANDATORY
SAFETY SHUTDOWN PROCEDURE page 9.
DO NOT attempt repairs. Instead call your
Gehl dealer for assistance.
The truss boom and winch attachment tools
should ONLY be used to lift and place loads
when the machine is in a stationary position.
DO NOT use to transport loads around the job-
site. This can cause the load to swing, result-
ing in either the load dropping or the machine
tipping over.
NEVER use winch for lifting or moving per-
sonnel. NEVER exceed the maximum rated
capacity of the winch (3000 lbs., 1360 kg) or
exceed the load zone chart rating for winch
applications.
DO NOT tilt the truss boom back more than
45
o
from horizontal. DO NOT attempt to use
the rotating carriage as a load leveling func-
tion. Always level the frame prior to raising a
load.
Failure to heed could result in death or seri-
ous injury.
Two-Button Joystick Function Illustration
