913287/BP0808 4 PRINTED IN U.S.A.

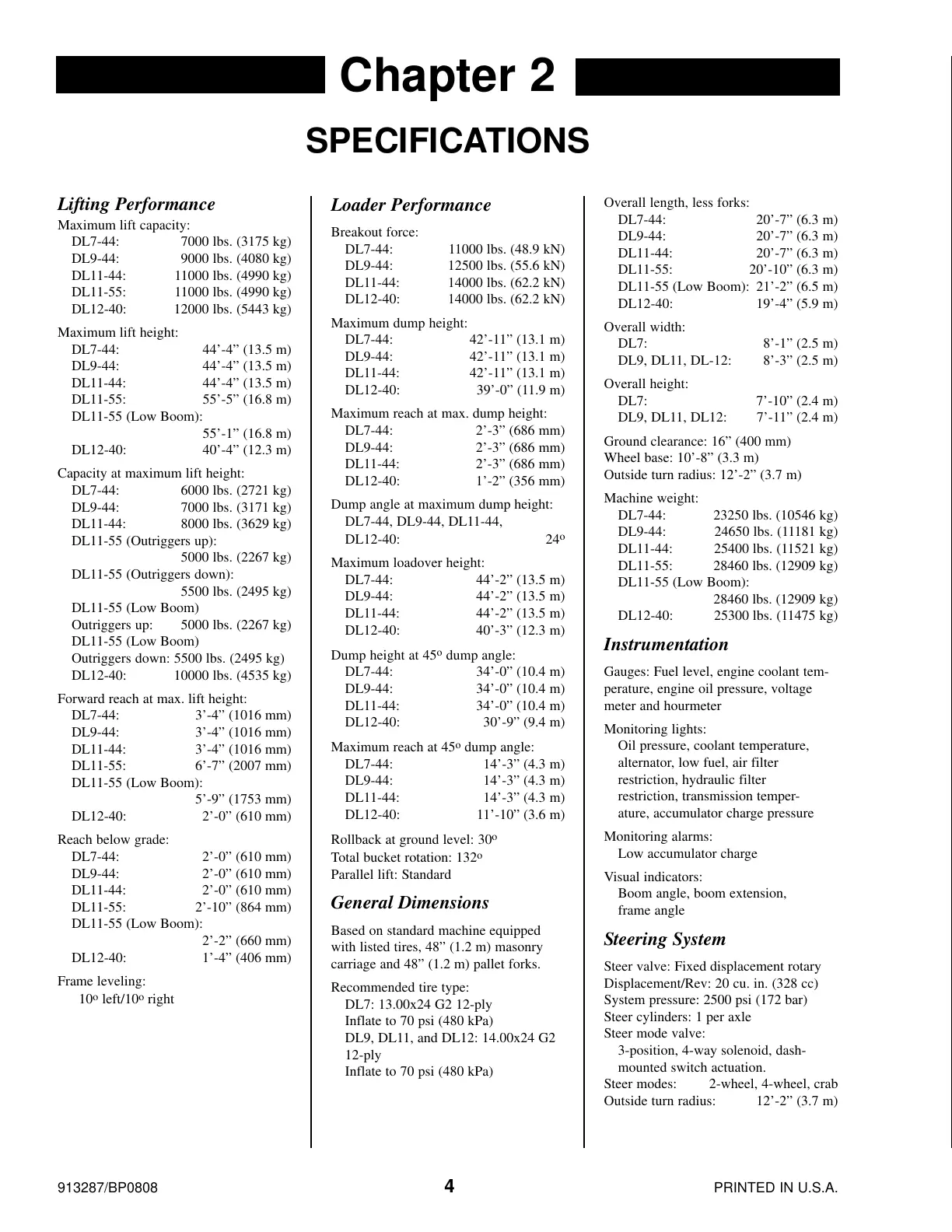

Chapter 2
SPECIFICATIONS
Lifting Performance
Maximum lift capacity:
DL7-44: 7000 lbs. (3175 kg)
DL9-44: 9000 lbs. (4080 kg)
DL11-44: 11000 lbs. (4990 kg)
DL11-55: 11000 lbs. (4990 kg)
DL12-40: 12000 lbs. (5443 kg)
Maximum lift height:
DL7-44: 44’-4” (13.5 m)
DL9-44: 44’-4” (13.5 m)
DL11-44: 44’-4” (13.5 m)
DL11-55: 55’-5” (16.8 m)
DL11-55 (Low Boom):
55’-1” (16.8 m)
DL12-40: 40’-4” (12.3 m)
Capacity at maximum lift height:
DL7-44: 6000 lbs. (2721 kg)
DL9-44: 7000 lbs. (3171 kg)
DL11-44: 8000 lbs. (3629 kg)
DL11-55 (Outriggers up):
5000 lbs. (2267 kg)
DL11-55 (Outriggers down):
5500 lbs. (2495 kg)
DL11-55 (Low Boom)
Outriggers up: 5000 lbs. (2267 kg)
DL11-55 (Low Boom)
Outriggers down: 5500 lbs. (2495 kg)
DL12-40: 10000 lbs. (4535 kg)
Forward reach at max. lift height:
DL7-44: 3’-4” (1016 mm)
DL9-44: 3’-4” (1016 mm)
DL11-44: 3’-4” (1016 mm)
DL11-55: 6’-7” (2007 mm)
DL11-55 (Low Boom):
5’-9” (1753 mm)
DL12-40: 2’-0” (610 mm)
Reach below grade:
DL7-44: 2’-0” (610 mm)
DL9-44: 2’-0” (610 mm)
DL11-44: 2’-0” (610 mm)
DL11-55: 2’-10” (864 mm)
DL11-55 (Low Boom):
2’-2” (660 mm)
DL12-40: 1’-4” (406 mm)
Frame leveling:
10
o
left/10
o
right
Loader Performance
Breakout force:
DL7-44: 11000 lbs. (48.9 kN)
DL9-44: 12500 lbs. (55.6 kN)
DL11-44: 14000 lbs. (62.2 kN)
DL12-40: 14000 lbs. (62.2 kN)
Maximum dump height:
DL7-44: 42’-11” (13.1 m)
DL9-44: 42’-11” (13.1 m)
DL11-44: 42’-11” (13.1 m)
DL12-40: 39’-0” (11.9 m)
Maximum reach at max. dump height:
DL7-44: 2’-3” (686 mm)
DL9-44: 2’-3” (686 mm)
DL11-44: 2’-3” (686 mm)
DL12-40: 1’-2” (356 mm)
Dump angle at maximum dump height:
DL7-44, DL9-44, DL11-44,
DL12-40: 24
o
Maximum loadover height:
DL7-44: 44’-2” (13.5 m)
DL9-44: 44’-2” (13.5 m)
DL11-44: 44’-2” (13.5 m)
DL12-40: 40’-3” (12.3 m)
Dump height at 45
o
dump angle:
DL7-44: 34’-0” (10.4 m)
DL9-44: 34’-0” (10.4 m)
DL11-44: 34’-0” (10.4 m)
DL12-40: 30’-9” (9.4 m)
Maximum reach at 45
o
dump angle:
DL7-44: 14’-3” (4.3 m)
DL9-44: 14’-3” (4.3 m)
DL11-44: 14’-3” (4.3 m)
DL12-40: 11’-10” (3.6 m)
Rollback at ground level: 30
o
Total bucket rotation: 132
o
Parallel lift: Standard
General Dimensions
Based on standard machine equipped
with listed tires, 48” (1.2 m) masonry
carriage and 48” (1.2 m) pallet forks.
Recommended tire type:
DL7: 13.00x24 G2 12-ply
Inflate to 70 psi (480 kPa)
DL9, DL11, and DL12: 14.00x24 G2
12-ply
Inflate to 70 psi (480 kPa)
Overall length, less forks:
DL7-44: 20’-7” (6.3 m)
DL9-44: 20’-7” (6.3 m)
DL11-44: 20’-7” (6.3 m)
DL11-55: 20’-10” (6.3 m)
DL11-55 (Low Boom): 21’-2” (6.5 m)
DL12-40: 19’-4” (5.9 m)
Overall width:
DL7: 8’-1” (2.5 m)
DL9, DL11, DL-12: 8’-3” (2.5 m)
Overall height:
DL7: 7’-10” (2.4 m)
DL9, DL11, DL12: 7’-11” (2.4 m)
Ground clearance: 16” (400 mm)
Wheel base: 10’-8” (3.3 m)
Outside turn radius: 12’-2” (3.7 m)
Machine weight:
DL7-44: 23250 lbs. (10546 kg)
DL9-44: 24650 lbs. (11181 kg)
DL11-44: 25400 lbs. (11521 kg)
DL11-55: 28460 lbs. (12909 kg)
DL11-55 (Low Boom):
28460 lbs. (12909 kg)
DL12-40: 25300 lbs. (11475 kg)
Instrumentation
Gauges: Fuel level, engine coolant tem-
perature, engine oil pressure, voltage
meter and hourmeter
Monitoring lights:
Oil pressure, coolant temperature,
alternator, low fuel, air filter
restriction, hydraulic filter
restriction, transmission temper-
ature, accumulator charge pressure
Monitoring alarms:
Low accumulator charge
Visual indicators:
Boom angle, boom extension,
frame angle
Steering System
Steer valve: Fixed displacement rotary
Displacement/Rev: 20 cu. in. (328 cc)
System pressure: 2500 psi (172 bar)
Steer cylinders: 1 per axle
Steer mode valve:
3-position, 4-way solenoid, dash-
mounted switch actuation.
Steer modes: 2-wheel, 4-wheel, crab
Outside turn radius: 12’-2” (3.7 m)
