913287/BP0808 30 PRINTED IN U.S.A.
FLOOR AND SEAT
Throttle Pedal: This pedal, operated by the right foot,
controls the engine speed to match power require-
ments. Pushing down on the pedal increases the RPM,
letting up on the pedal decreases RPM.
Service Brake Pedal: Pressing this pedal activates the
internal braking mechanism on both wheels of the
front axle.
Seat Positioning: The seat is mounted on rails for for-
ward and rearward repositioning, for comfort and to
accommodate the operator’s size. A spring-loaded
latch handle “A” under the front of the seat actuates the
adjustment mechanism.
Suspension Seat Option: In addition to the “A” latch
handle for forward and rearward adjustment, this seat
has a knob “B” under the front of the seat to adjust the
suspension. Turn the knob to the right for a softer ride,
and to the left for a firmer ride.
Seat Belt: This machine has a retractable seat belt.
Grasp the belt on the left side of the seat pulling the
belt over your lap and insert the belt into the buckle on
the right side of the seat until you hear it lock in place.
SERVICE AND SAFETY FEATURES
The following indicators are for fluid level and pres-
sure checks.
Hydraulic Test Port: A
test port located at the
rear of the pump, for
installing a test gauge to
check hydraulic and
steering system pres-
sures.
Test Port

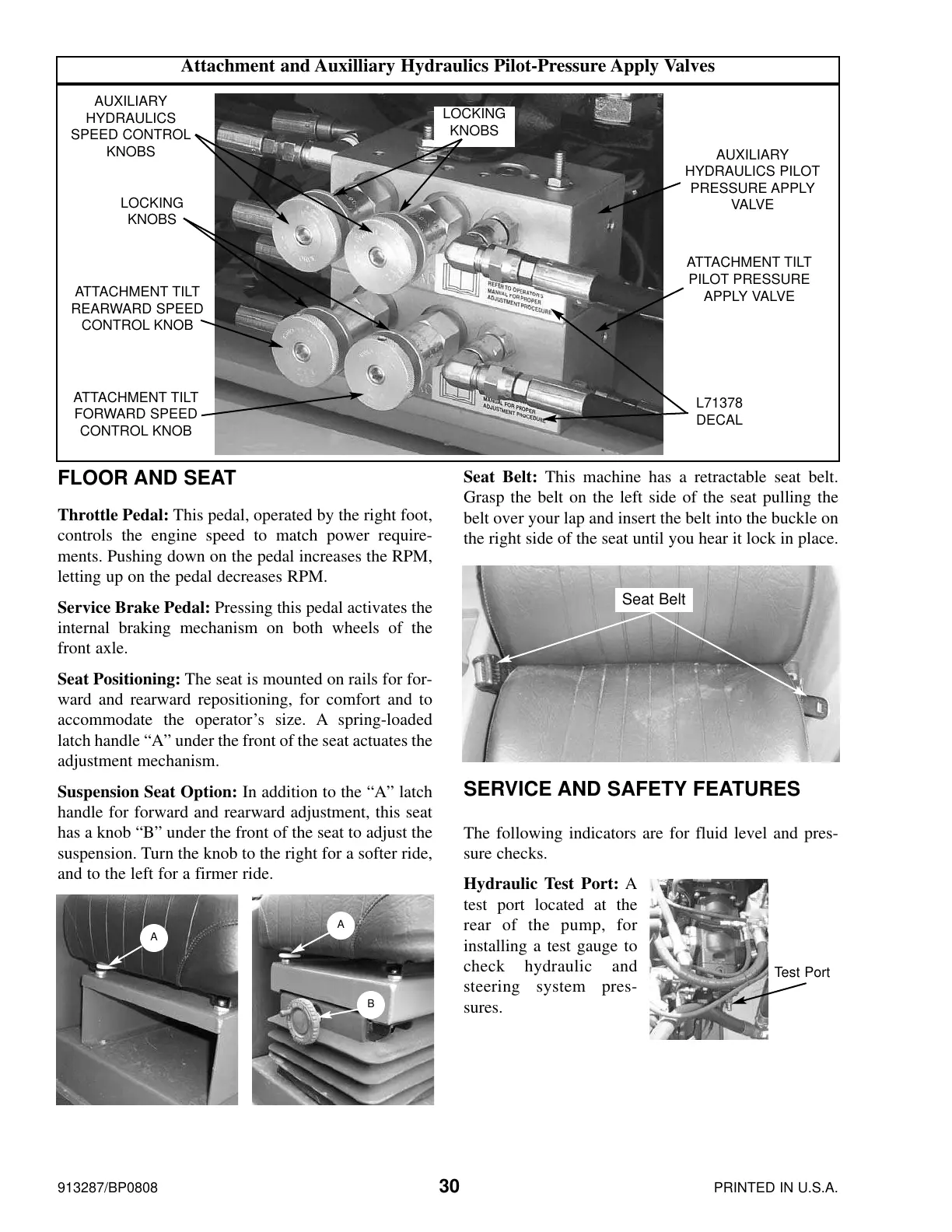

Attachment and Auxilliary Hydraulics Pilot-Pressure Apply Valves
AUXILIARY
HYDRAULICS PILOT
PRESSURE APPLY
VALVE
ATTACHMENT TILT
PILOT PRESSURE
APPLY VALVE
ATTACHMENT TILT
FORWARD SPEED
CONTROL KNOB
ATTACHMENT TILT
REARWARD SPEED
CONTROL KNOB
AUXILIARY
HYDRAULICS
SPEED CONTROL
KNOBS
LOCKING
KNOBS
L71378
DECAL
LOCKING
KNOBS
B
A
A
Seat Belt
