PRINTED IN U.S.A. 77 913287/BP0808

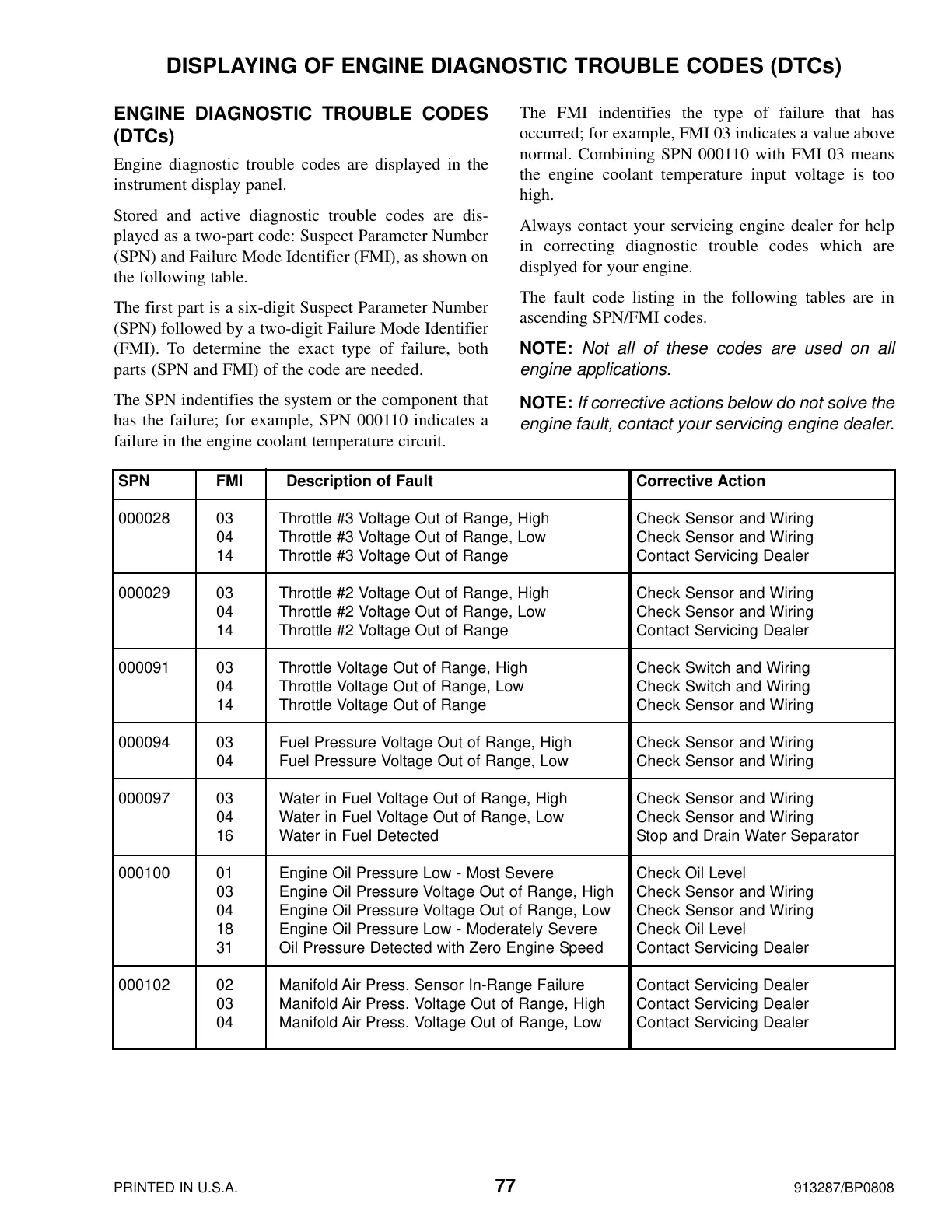

DISPLAYING OF ENGINE DIAGNOSTIC TROUBLE CODES (DTCs)
ENGINE DIAGNOSTIC TROUBLE CODES
(DTCs)
Engine diagnostic trouble codes are displayed in the
instrument display panel.
Stored and active diagnostic trouble codes are dis-
played as a two-part code: Suspect Parameter Number
(SPN) and Failure Mode Identifier (FMI), as shown on
the following table.
The first part is a six-digit Suspect Parameter Number
(SPN) followed by a two-digit Failure Mode Identifier
(FMI). To determine the exact type of failure, both
parts (SPN and FMI) of the code are needed.
The SPN indentifies the system or the component that
has the failure; for example, SPN 000110 indicates a
failure in the engine coolant temperature circuit.
The FMI indentifies the type of failure that has
occurred; for example, FMI 03 indicates a value above
normal. Combining SPN 000110 with FMI 03 means
the engine coolant temperature input voltage is too
high.
Always contact your servicing engine dealer for help
in correcting diagnostic trouble codes which are
displyed for your engine.
The fault code listing in the following tables are in
ascending SPN/FMI codes.
NOTE: Not all of these codes are used on all
engine applications.
NOTE: If corrective actions below do not solve the
engine fault, contact your servicing engine dealer.
SPN FMI Description of Fault
000028 03 Throttle #3 Voltage Out of Range, High
04 Throttle #3 Voltage Out of Range, Low
14 Throttle #3 Voltage Out of Range
000029 03 Throttle #2 Voltage Out of Range, High
04 Throttle #2 Voltage Out of Range, Low
14 Throttle #2 Voltage Out of Range
000091 03 Throttle Voltage Out of Range, High
04 Throttle Voltage Out of Range, Low
14 Throttle Voltage Out of Range
000094 03 Fuel Pressure Voltage Out of Range, High
04 Fuel Pressure Voltage Out of Range, Low
000097 03 Water in Fuel Voltage Out of Range, High
04 Water in Fuel Voltage Out of Range, Low
16 Water in Fuel Detected
000100 01 Engine Oil Pressure Low - Most Severe
03 Engine Oil Pressure Voltage Out of Range, High
04 Engine Oil Pressure Voltage Out of Range, Low
18 Engine Oil Pressure Low - Moderately Severe
31 Oil Pressure Detected with Zero Engine Speed
000102 02 Manifold Air Press. Sensor In-Range Failure
03 Manifold Air Press. Voltage Out of Range, High
04 Manifold Air Press. Voltage Out of Range, Low
Corrective Action
Check Sensor and Wiring
Check Sensor and Wiring
Contact Servicing Dealer
Check Sensor and Wiring
Check Sensor and Wiring
Contact Servicing Dealer
Check Switch and Wiring
Check Switch and Wiring
Check Sensor and Wiring
Check Sensor and Wiring
Check Sensor and Wiring
Check Sensor and Wiring
Check Sensor and Wiring
Stop and Drain Water Separator
Check Oil Level
Check Sensor and Wiring
Check Sensor and Wiring
Check Oil Level
Contact Servicing Dealer
Contact Servicing Dealer
Contact Servicing Dealer
Contact Servicing Dealer
