PRINTED IN U.S.A. 31 913287/BP0808

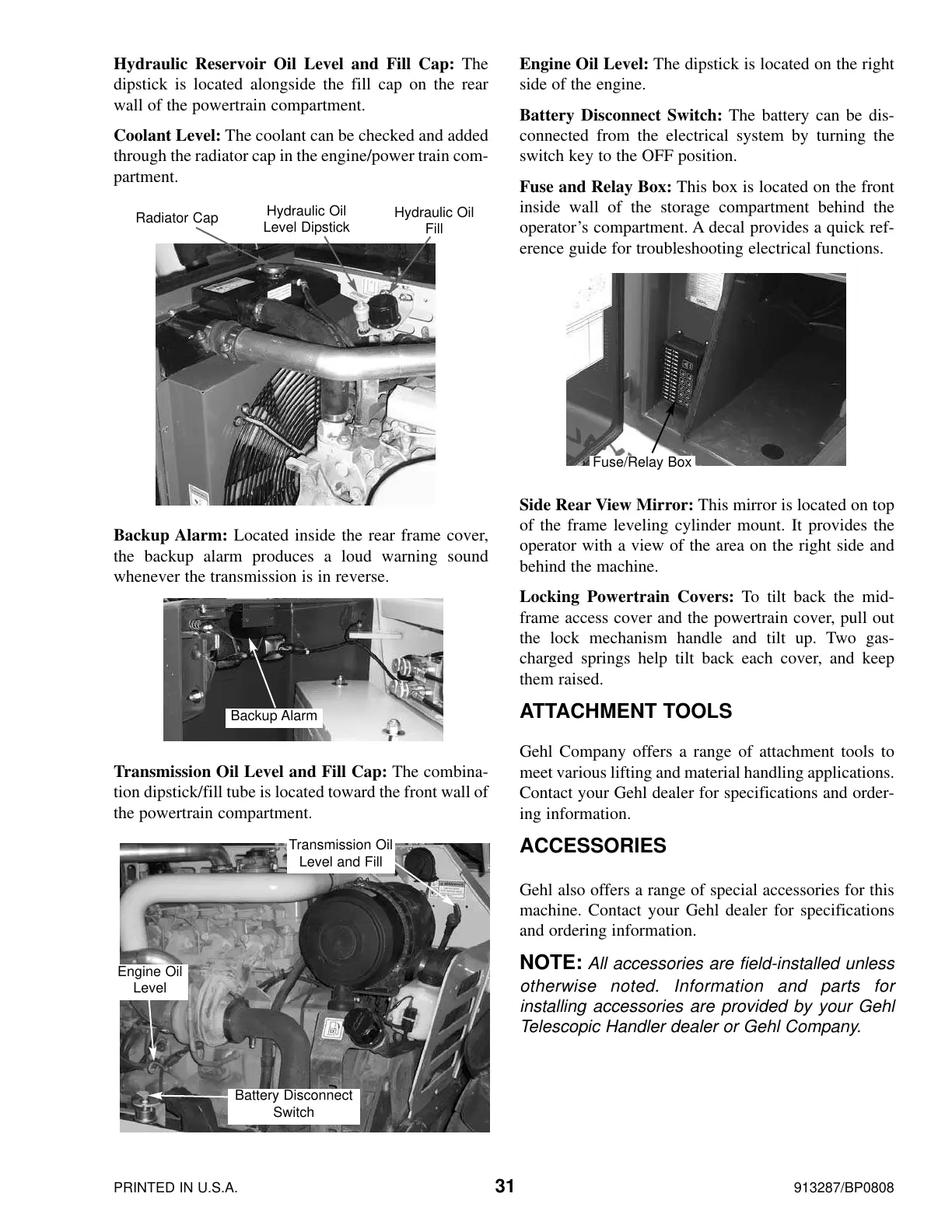

Engine Oil Level: The dipstick is located on the right
side of the engine.
Battery Disconnect Switch: The battery can be dis-
connected from the electrical system by turning the
switch key to the OFF position.
Fuse and Relay Box: This box is located on the front
inside wall of the storage compartment behind the
operator’s compartment. A decal provides a quick ref-
erence guide for troubleshooting electrical functions.
Side Rear View Mirror: This mirror is located on top
of the frame leveling cylinder mount. It provides the
operator with a view of the area on the right side and
behind the machine.
Locking Powertrain Covers: To tilt back the mid-
frame access cover and the powertrain cover, pull out
the lock mechanism handle and tilt up. Two gas-
charged springs help tilt back each cover, and keep
them raised.
ATTACHMENT TOOLS
Gehl Company offers a range of attachment tools to
meet various lifting and material handling applications.
Contact your Gehl dealer for specifications and order-
ing information.
ACCESSORIES
Gehl also offers a range of special accessories for this
machine. Contact your Gehl dealer for specifications
and ordering information.
NOTE: All accessories are field-installed unless
otherwise noted. Information and parts for
installing accessories are provided by your Gehl
Telescopic Handler dealer or Gehl Company.
Hydraulic Reservoir Oil Level and Fill Cap: The
dipstick is located alongside the fill cap on the rear
wall of the powertrain compartment.
Coolant Level: The coolant can be checked and added
through the radiator cap in the engine/power train com-
partment.
Backup Alarm: Located inside the rear frame cover,
the backup alarm produces a loud warning sound
whenever the transmission is in reverse.
Transmission Oil Level and Fill Cap: The combina-
tion dipstick/fill tube is located toward the front wall of
the powertrain compartment.
Fuse/Relay Box
Battery Disconnect
Switch
Engine Oil
Level
Transmission Oil
Level and Fill
Backup Alarm
Hydraulic Oil
Level Dipstick
Radiator Cap
Hydraulic Oil
Fill
