913287/BP0808 62 PRINTED IN U.S.A.

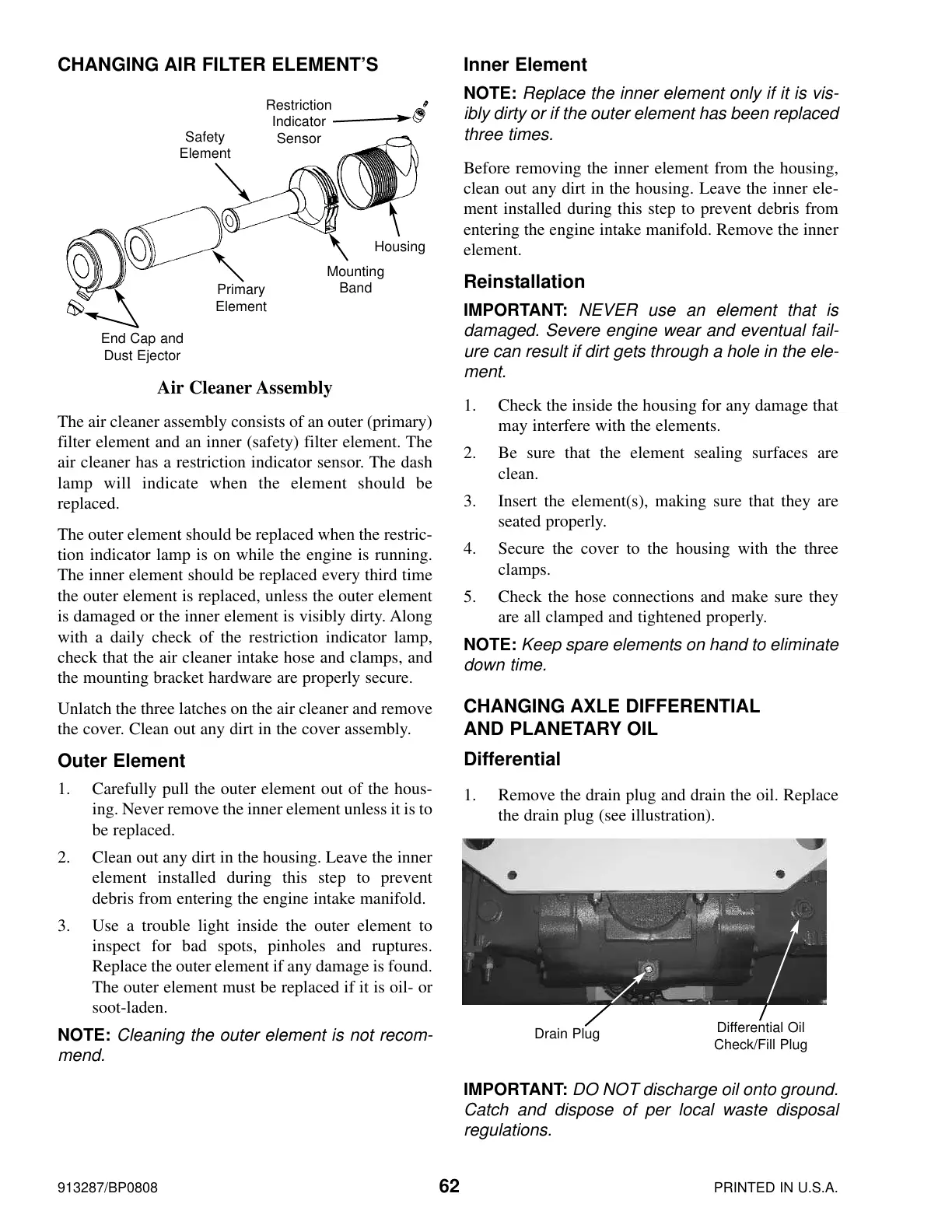

CHANGING AIR FILTER ELEMENT’S
The air cleaner assembly consists of an outer (primary)
filter element and an inner (safety) filter element. The
air cleaner has a restriction indicator sensor. The dash
lamp will indicate when the element should be
replaced.
The outer element should be replaced when the restric-
tion indicator lamp is on while the engine is running.
The inner element should be replaced every third time
the outer element is replaced, unless the outer element
is damaged or the inner element is visibly dirty. Along
with a daily check of the restriction indicator lamp,
check that the air cleaner intake hose and clamps, and
the mounting bracket hardware are properly secure.
Unlatch the three latches on the air cleaner and remove
the cover. Clean out any dirt in the cover assembly.
Outer Element
1. Carefully pull the outer element out of the hous-
ing. Never remove the inner element unless it is to
be replaced.
2. Clean out any dirt in the housing. Leave the inner
element installed during this step to prevent
debris from entering the engine intake manifold.
3. Use a trouble light inside the outer element to
inspect for bad spots, pinholes and ruptures.
Replace the outer element if any damage is found.
The outer element must be replaced if it is oil- or
soot-laden.
NOTE: Cleaning the outer element is not recom-
mend.
Inner Element
NOTE: Replace the inner element only if it is vis-
ibly dirty or if the outer element has been replaced
three times.
Before removing the inner element from the housing,
clean out any dirt in the housing. Leave the inner ele-
ment installed during this step to prevent debris from
entering the engine intake manifold. Remove the inner
element.
Reinstallation
IMPORTANT: NEVER use an element that is
damaged. Severe engine wear and eventual fail-
ure can result if dirt gets through a hole in the ele-
ment.
1. Check the inside the housing for any damage that
may interfere with the elements.
2. Be sure that the element sealing surfaces are
clean.
3. Insert the element(s), making sure that they are
seated properly.
4. Secure the cover to the housing with the three
clamps.
5. Check the hose connections and make sure they
are all clamped and tightened properly.
NOTE: Keep spare elements on hand to eliminate
down time.
CHANGING AXLE DIFFERENTIAL
AND PLANETARY OIL
Differential
1. Remove the drain plug and drain the oil. Replace
the drain plug (see illustration).
IMPORTANT: DO NOT discharge oil onto ground.
Catch and dispose of per local waste disposal
regulations.
Differential Oil
Check/Fill Plug
Drain Plug
Safety
Element
Mounting
Band
End Cap and
Dust Ejector
Primary
Element
Housing
Air Cleaner Assembly
Restriction
Indicator
Sensor
