913287/BP0808 24 PRINTED IN U.S.A.
NOTE: Holding the switch continuously “ON” will
not reset the 30-second timer.
E - Load Zone Charts: Aseries of flip charts show lift
height and reach limits relative to the load weight
being handled with various attachment tools.
Right Bank Switches
Switches have graphic symbols to indicate function
and effect. The following mode descriptions start with
the first switch on the left.
A - Cold Starting Option: This switch activates the
injection of an ether agent for faster engine start in cold
weather.
B - Clutch Cutout: When activated, this switch allows
faster engine acceleration and power to the hydraulics
system without power to the drive axles while the ser-
vice brake pedal is depressed.
In the OFF position, the clutch mechanism in the trans-
mission remains engaged when applying the brakes. In
the ON position, the clutch mechanism is disengaged
while applying the brakes.
NOTE: Normal brake force will hold the machine
in position while accelerating the engine to power
the hydraulic control functions during load place-
ment.
C1 and C2 - Wiper/Washer: The windshield and top
window of the operator’s station are each equipped
with a wiper and washer mechanism. Switch “C1”
operates the wiper and washer on the windshield;
switch “C2” operates the wiper and washer on the top
window.
D - Fan Speed: This switch increases and decreases
circulation of heated or cooled air throughout the oper-
ator’s station interior.
E - Heater/AC or Heater: This switch will be either
the Heater switch shown or the Heater/AC switch.
Pressing the top of the Heater or Heater/AC switch
activates the cab heater. Pressing the bottom of the
Heater switch turns off the heater. Pressing the bottom
of the Heater/AC switch activates the cab air condi-

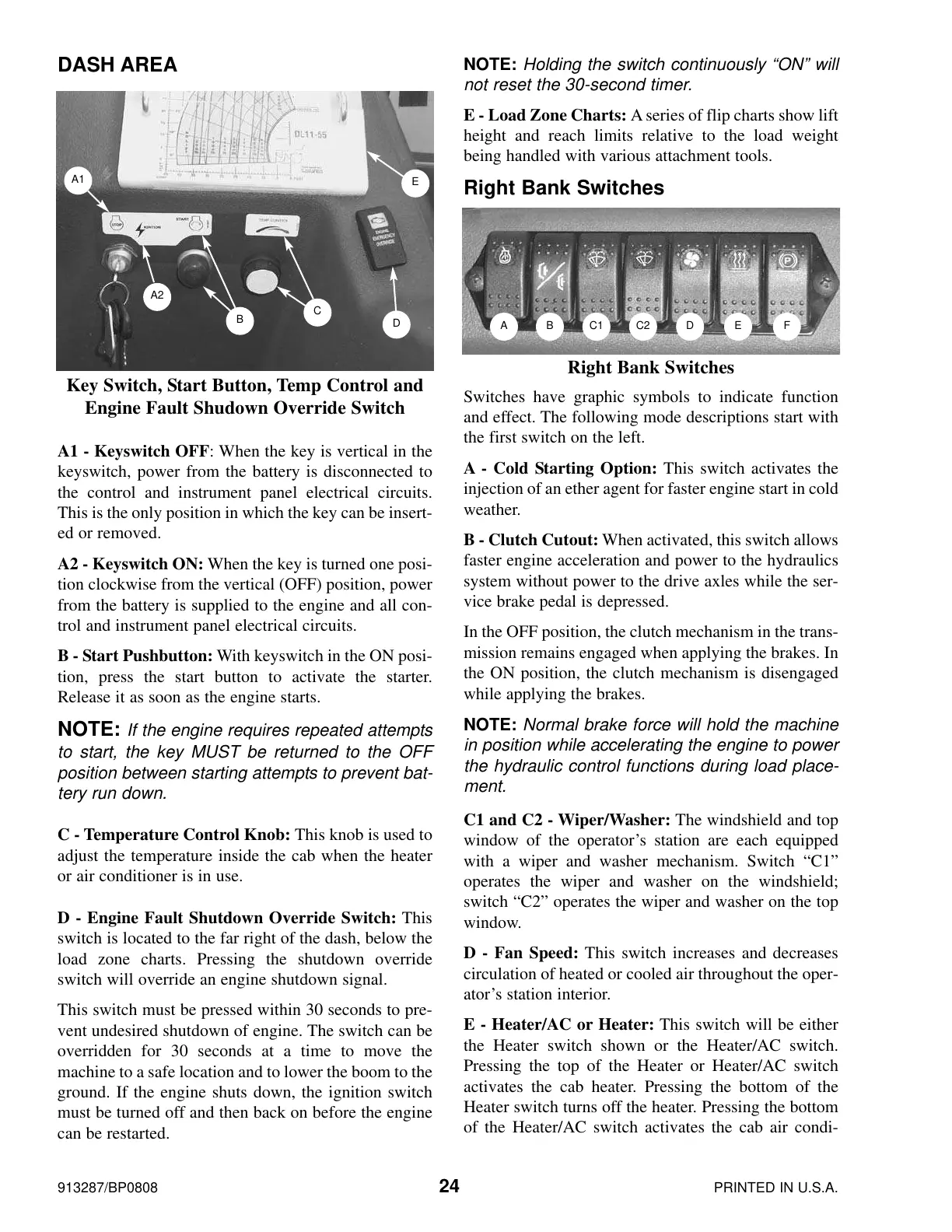

DASH AREA
A1 - Keyswitch OFF: When the key is vertical in the
keyswitch, power from the battery is disconnected to
the control and instrument panel electrical circuits.
This is the only position in which the key can be insert-
ed or removed.
A2 - Keyswitch ON: When the key is turned one posi-
tion clockwise from the vertical (OFF) position, power
from the battery is supplied to the engine and all con-
trol and instrument panel electrical circuits.
B - Start Pushbutton: With keyswitch in the ON posi-
tion, press the start button to activate the starter.
Release it as soon as the engine starts.
NOTE: If the engine requires repeated attempts
to start, the key MUST be returned to the OFF
position between starting attempts to prevent bat-
tery run down.
C - Temperature Control Knob: This knob is used to
adjust the temperature inside the cab when the heater
or air conditioner is in use.
D - Engine Fault Shutdown Override Switch: This
switch is located to the far right of the dash, below the
load zone charts. Pressing the shutdown override
switch will override an engine shutdown signal.
This switch must be pressed within 30 seconds to pre-
vent undesired shutdown of engine. The switch can be
overridden for 30 seconds at a time to move the
machine to a safe location and to lower the boom to the
ground. If the engine shuts down, the ignition switch
must be turned off and then back on before the engine
can be restarted.
Key Switch, Start Button, Temp Control and
Engine Fault Shudown Override Switch
A2
C
D
B
A1
E
Right Bank Switches
C1BA EDC2 F
