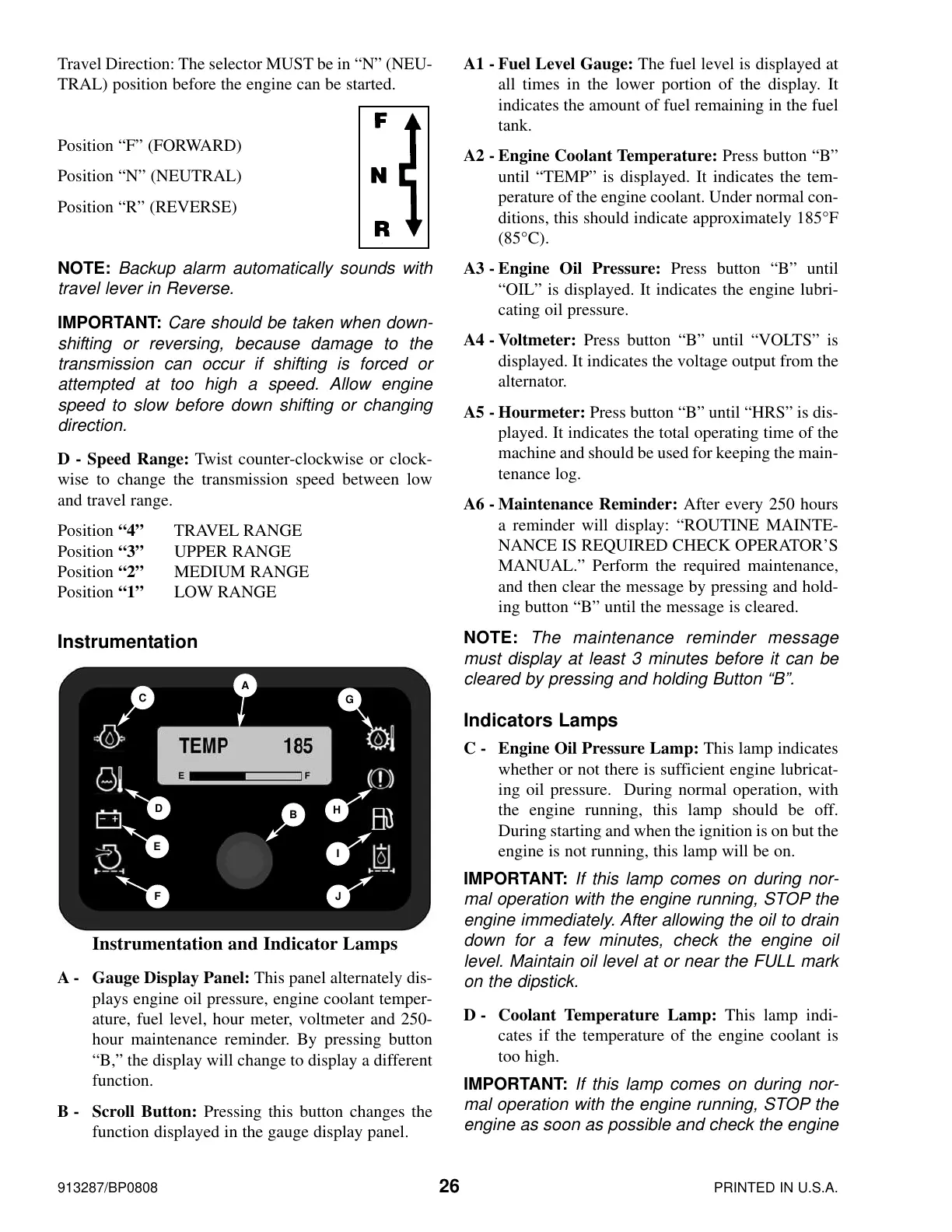

913287/BP0808 26 PRINTED IN U.S.A.
Travel Direction: The selector MUST be in “N” (NEU-
TRAL) position before the engine can be started.
Position “F” (FORWARD)
Position “N” (NEUTRAL)
Position “R” (REVERSE)
NOTE: Backup alarm automatically sounds with
travel lever in Reverse.
IMPORTANT: Care should be taken when down-
shifting or reversing, because damage to the
transmission can occur if shifting is forced or
attempted at too high a speed. Allow engine
speed to slow before down shifting or changing
direction.
D - Speed Range: Twist counter-clockwise or clock-
wise to change the transmission speed between low
and travel range.
Position “4” TRAVEL RANGE
Position “3” UPPER RANGE
Position “2” MEDIUM RANGE
Position “1” LOW RANGE
Instrumentation
A - Gauge Display Panel: This panel alternately dis-
plays engine oil pressure, engine coolant temper-
ature, fuel level, hour meter, voltmeter and 250-
hour maintenance reminder. By pressing button
“B,” the display will change to display a different
function.
B - Scroll Button: Pressing this button changes the
function displayed in the gauge display panel.
A1 - Fuel Level Gauge: The fuel level is displayed at
all times in the lower portion of the display. It
indicates the amount of fuel remaining in the fuel
tank.
A2 - Engine Coolant Temperature: Press button “B”
until “TEMP” is displayed. It indicates the tem-
perature of the engine coolant. Under normal con-
ditions, this should indicate approximately 185°F
(85°C).
A3 - Engine Oil Pressure: Press button “B” until
“OIL” is displayed. It indicates the engine lubri-
cating oil pressure.
A4 - Voltmeter: Press button “B” until “VOLTS” is
displayed. It indicates the voltage output from the
alternator.
A5 - Hourmeter: Press button “B” until “HRS” is dis-
played. It indicates the total operating time of the
machine and should be used for keeping the main-
tenance log.
A6 - Maintenance Reminder: After every 250 hours
a reminder will display: “ROUTINE MAINTE-
NANCE IS REQUIRED CHECK OPERATOR’S
MANUAL.” Perform the required maintenance,
and then clear the message by pressing and hold-
ing button “B” until the message is cleared.
NOTE: The maintenance reminder message
must display at least 3 minutes before it can be
cleared by pressing and holding Button “B”.
Indicators Lamps
C - Engine Oil Pressure Lamp: This lamp indicates
whether or not there is sufficient engine lubricat-
ing oil pressure. During normal operation, with
the engine running, this lamp should be off.
During starting and when the ignition is on but the
engine is not running, this lamp will be on.
IMPORTANT: If this lamp comes on during nor-
mal operation with the engine running, STOP the
engine immediately. After allowing the oil to drain
down for a few minutes, check the engine oil
level. Maintain oil level at or near the FULL mark
on the dipstick.
D - Coolant Temperature Lamp: This lamp indi-
cates if the temperature of the engine coolant is
too high.
IMPORTANT: If this lamp comes on during nor-
mal operation with the engine running, STOP the
engine as soon as possible and check the engine
Instrumentation and Indicator Lamps
A
B
I
E
D
C
H
G
J
F
