PRINTED IN U.S.A. 67 913287/BP0808
GENERAL INFORMATION
Decal locations information is provided to assist in the
proper selection and application of new decals, in the
event the original decal become damaged or the
machine is repainted.
For correct replacement of decals, compare the loca-
tion photographs to the machine before starting to
refinish the unit. Check off each required decal using
the illustration reference number to find the part num-
ber, description and quantity in the list. Refer to the
appropriate illustration for replacement location.
If there is a decal on a part that is being replaced, be
sure that the decal is applied to the replacement part.
NOTE: Refer to the SAFETY chapter of this
manual for the specific information provided on
the various safety decals.
NEW DECAL APPLICATION
Before applying the new decals, surfaces must be free
from dirt, dust, grease and other foreign material. To
apply a solid-formed decal, remove the smaller portion
of the decal backing paper and apply this part of the
exposed adhesive backing to the clean surface while
maintaining proper position and alignment. Slowly
peel off the other portion of the backing paper while
applying hand pressure to smooth out decal surface. To
apply a pre-mask decal, first remove the backing paper
to expose the adhesive side of the decal. Then, proper-
ly orient and position the decal onto the clean mount-
ing surface. After the decal is firmly applied and
smoothly pressed down, peel off the top covering
paper.
PAINT FINISH
Use this list to order paint for refinishing:
167788 One Gal. Yellow
167789 6 (12-oz. Spray Cans) Yellow
167754 One Gal. Gun-Metal Gray
167753 6 (12-oz. Spray Can) Gun-Metal Gray
Decal Kits
210023 Decal Kit, DL7 w/o PWP
210024 Decal Kit, DL7 w/ PWP
210025 Decal Kit, DL9 w/o PWP
210026 Decal Kit, DL9 w/ PWP
210027 Decal Kit, DL11-44 w/o PWP
210028 Decal Kit, DL11-44 w/ PWP
210029 Decal Kit, DL11-55 w/o PWP
210030 Decal Kit, DL11-55 w/ PWP
210083 Decal Kit, DL11-55 Low Boom w/o PWP
210084 Decal Kit, DL11-55 Low Boom w/ PWP
210031 Decal Kit, DL12 w/o PWP
210032 Decal Kit, DL12 w/ PWP
NOTE: Decals may be purchased in kits or indi-
vidually.

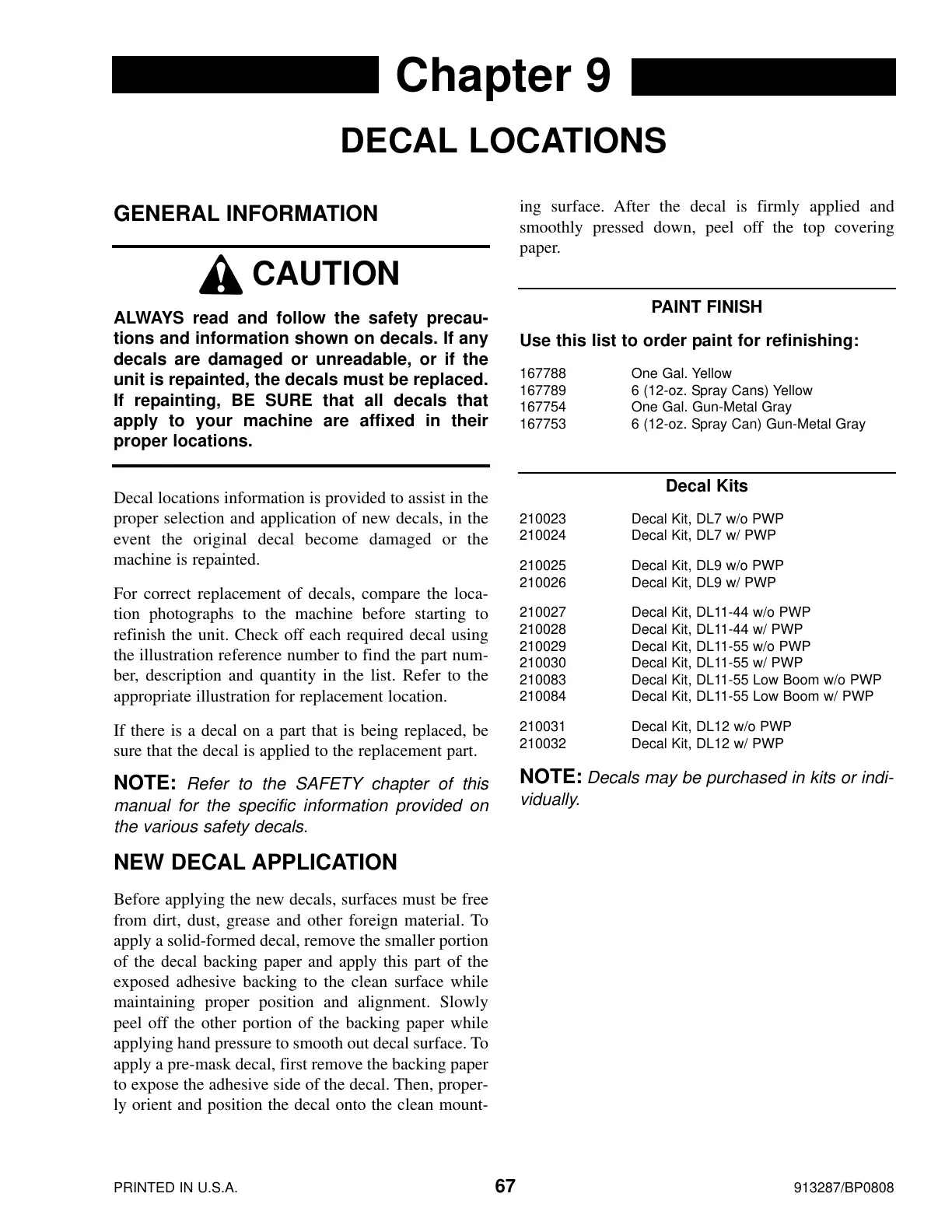

Chapter 9
DECAL LOCATIONS
CAUTION
ALWAYS read and follow the safety precau-
tions and information shown on decals. If any
decals are damaged or unreadable, or if the
unit is repainted, the decals must be replaced.
If repainting, BE SURE that all decals that
apply to your machine are affixed in their
proper locations.
