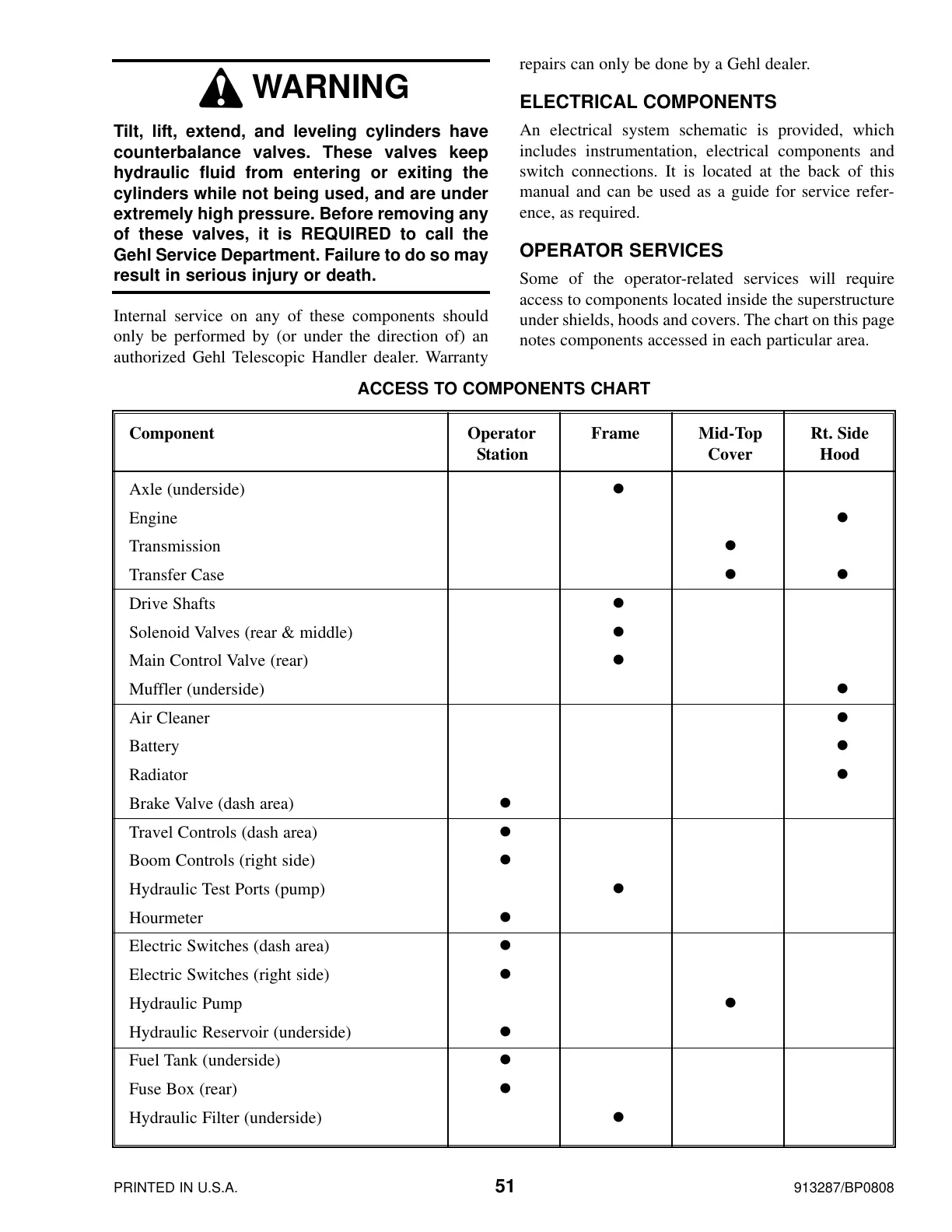

PRINTED IN U.S.A. 51 913287/BP0808
Internal service on any of these components should
only be performed by (or under the direction of) an
authorized Gehl Telescopic Handler dealer. Warranty
WARNING
Tilt, lift, extend, and leveling cylinders have
counterbalance valves. These valves keep
hydraulic fluid from entering or exiting the
cylinders while not being used, and are under
extremely high pressure. Before removing any
of these valves, it is REQUIRED to call the
Gehl Service Department. Failure to do so may
result in serious injury or death.
repairs can only be done by a Gehl dealer.
ELECTRICAL COMPONENTS
An electrical system schematic is provided, which
includes instrumentation, electrical components and
switch connections. It is located at the back of this
manual and can be used as a guide for service refer-
ence, as required.
OPERATOR SERVICES
Some of the operator-related services will require
access to components located inside the superstructure
under shields, hoods and covers. The chart on this page
notes components accessed in each particular area.
Component Operator Frame Mid-Top Rt. Side
Station Cover Hood
Axle (underside) z
Engine z
Transmission z
Transfer Case zz
Drive Shafts z
Solenoid Valves (rear & middle) z
Main Control Valve (rear) z
Muffler (underside) z
Air Cleaner z
Battery z
Radiator z
Brake Valve (dash area) z
Travel Controls (dash area) z
Boom Controls (right side) z
Hydraulic Test Ports (pump) z
Hourmeter z
Electric Switches (dash area) z
Electric Switches (right side) z
Hydraulic Pump z
Hydraulic Reservoir (underside) z
Fuel Tank (underside) z
Fuse Box (rear) z
Hydraulic Filter (underside) z
ACCESS TO COMPONENTS CHART
