913287/BP0808 64 PRINTED IN U.S.A.

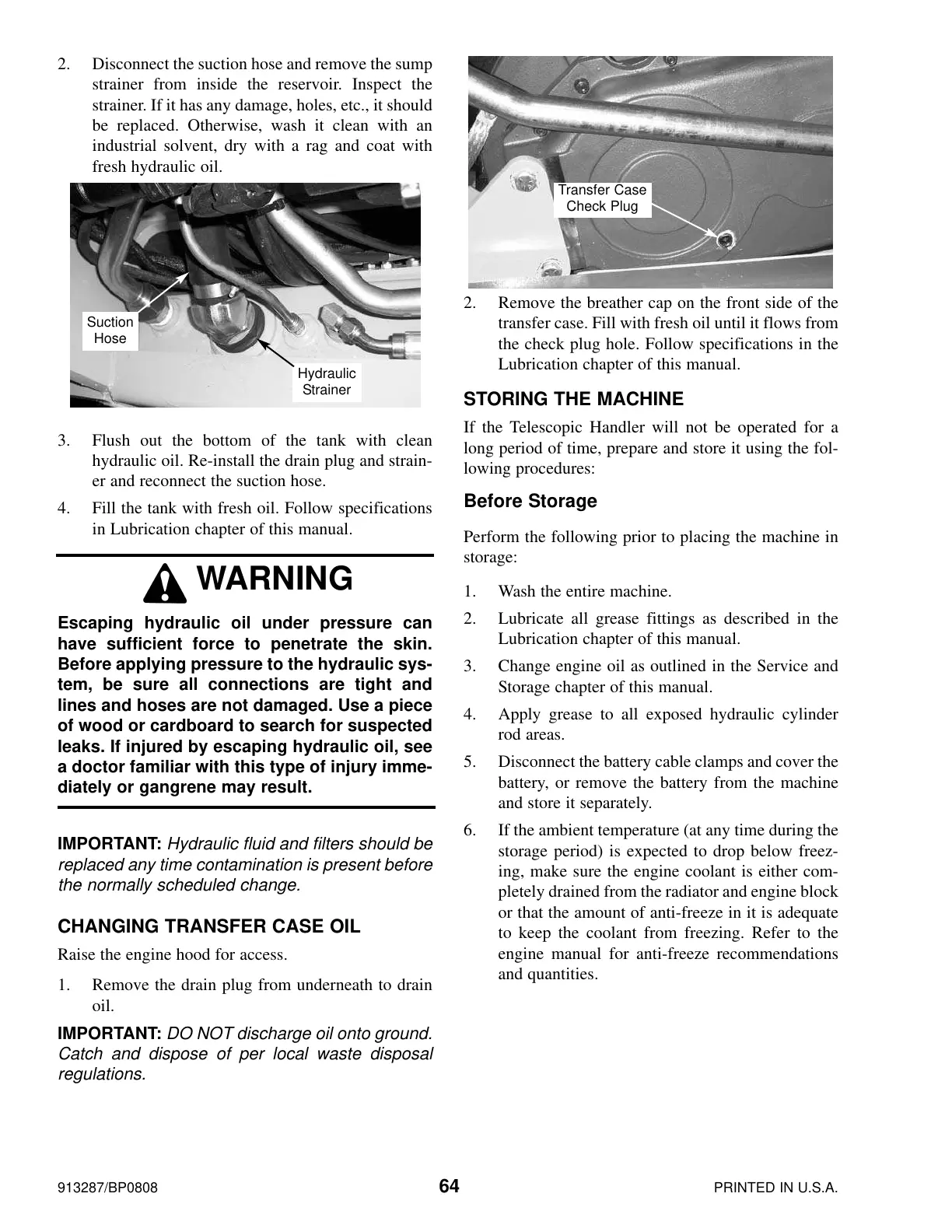

2. Disconnect the suction hose and remove the sump
strainer from inside the reservoir. Inspect the
strainer. If it has any damage, holes, etc., it should
be replaced. Otherwise, wash it clean with an
industrial solvent, dry with a rag and coat with
fresh hydraulic oil.
3. Flush out the bottom of the tank with clean
hydraulic oil. Re-install the drain plug and strain-
er and reconnect the suction hose.
4. Fill the tank with fresh oil. Follow specifications
in Lubrication chapter of this manual.
IMPORTANT: Hydraulic fluid and filters should be
replaced any time contamination is present before
the normally scheduled change.
CHANGING TRANSFER CASE OIL
Raise the engine hood for access.
1. Remove the drain plug from underneath to drain
oil.
IMPORTANT: DO NOT discharge oil onto ground.
Catch and dispose of per local waste disposal
regulations.
2. Remove the breather cap on the front side of the
transfer case. Fill with fresh oil until it flows from
the check plug hole. Follow specifications in the
Lubrication chapter of this manual.
STORING THE MACHINE
If the Telescopic Handler will not be operated for a
long period of time, prepare and store it using the fol-
lowing procedures:
Before Storage
Perform the following prior to placing the machine in
storage:
1. Wash the entire machine.
2. Lubricate all grease fittings as described in the
Lubrication chapter of this manual.
3. Change engine oil as outlined in the Service and
Storage chapter of this manual.
4. Apply grease to all exposed hydraulic cylinder
rod areas.
5. Disconnect the battery cable clamps and cover the
battery, or remove the battery from the machine
and store it separately.
6. If the ambient temperature (at any time during the
storage period) is expected to drop below freez-
ing, make sure the engine coolant is either com-
pletely drained from the radiator and engine block
or that the amount of anti-freeze in it is adequate
to keep the coolant from freezing. Refer to the
engine manual for anti-freeze recommendations
and quantities.
WARNING
Escaping hydraulic oil under pressure can
have sufficient force to penetrate the skin.
Before applying pressure to the hydraulic sys-
tem, be sure all connections are tight and
lines and hoses are not damaged. Use a piece
of wood or cardboard to search for suspected
leaks. If injured by escaping hydraulic oil, see
a doctor familiar with this type of injury imme-
diately or gangrene may result.
Transfer Case
Check Plug
Suction
Hose
Hydraulic
Strainer
