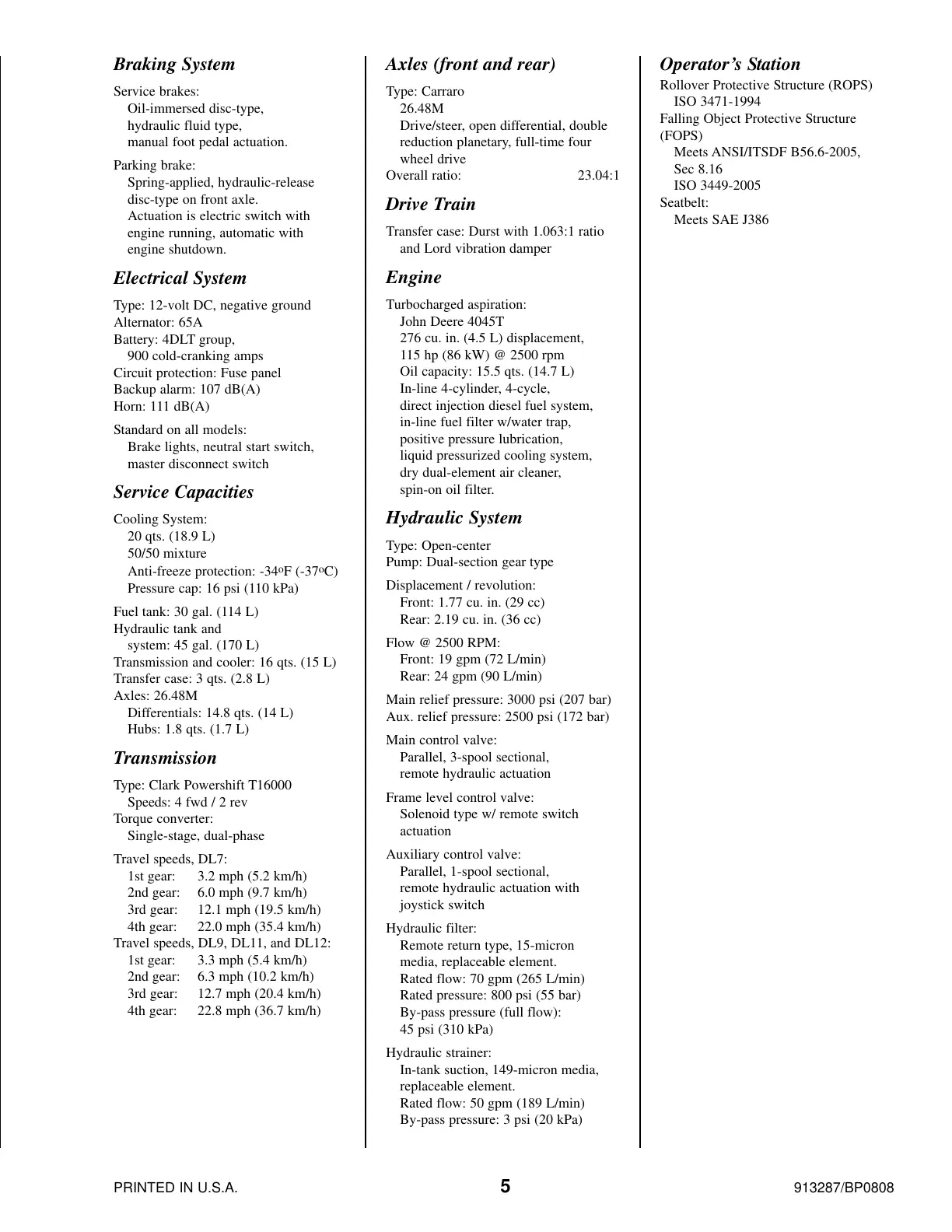

PRINTED IN U.S.A. 5 913287/BP0808
Braking System
Service brakes:
Oil-immersed disc-type,
hydraulic fluid type,
manual foot pedal actuation.
Parking brake:
Spring-applied, hydraulic-release
disc-type on front axle.
Actuation is electric switch with
engine running, automatic with
engine shutdown.
Electrical System
Type: 12-volt DC, negative ground
Alternator: 65A
Battery: 4DLT group,
900 cold-cranking amps
Circuit protection: Fuse panel
Backup alarm: 107 dB(A)
Horn: 111 dB(A)
Standard on all models:
Brake lights, neutral start switch,
master disconnect switch
Service Capacities
Cooling System:
20 qts. (18.9 L)
50/50 mixture
Anti-freeze protection: -34
o
F (-37
o
C)
Pressure cap: 16 psi (110 kPa)
Fuel tank: 30 gal. (114 L)
Hydraulic tank and
system: 45 gal. (170 L)
Transmission and cooler: 16 qts. (15 L)
Transfer case: 3 qts. (2.8 L)
Axles: 26.48M
Differentials: 14.8 qts. (14 L)
Hubs: 1.8 qts. (1.7 L)
Transmission
Type: Clark Powershift T16000
Speeds: 4 fwd / 2 rev
Torque converter:
Single-stage, dual-phase
Travel speeds, DL7:
1st gear: 3.2 mph (5.2 km/h)
2nd gear: 6.0 mph (9.7 km/h)
3rd gear: 12.1 mph (19.5 km/h)
4th gear: 22.0 mph (35.4 km/h)
Travel speeds, DL9, DL11, and DL12:
1st gear: 3.3 mph (5.4 km/h)
2nd gear: 6.3 mph (10.2 km/h)
3rd gear: 12.7 mph (20.4 km/h)
4th gear: 22.8 mph (36.7 km/h)
Axles (front and rear)
Type: Carraro
26.48M
Drive/steer, open differential, double
reduction planetary, full-time four
wheel drive
Overall ratio: 23.04:1
Drive Train
Transfer case: Durst with 1.063:1 ratio
and Lord vibration damper
Engine
Turbocharged aspiration:
John Deere 4045T
276 cu. in. (4.5 L) displacement,
115 hp (86 kW) @ 2500 rpm
Oil capacity: 15.5 qts. (14.7 L)
In-line 4-cylinder, 4-cycle,
direct injection diesel fuel system,
in-line fuel filter w/water trap,
positive pressure lubrication,
liquid pressurized cooling system,
dry dual-element air cleaner,
spin-on oil filter.
Hydraulic System
Type: Open-center
Pump: Dual-section gear type
Displacement / revolution:
Front: 1.77 cu. in. (29 cc)
Rear: 2.19 cu. in. (36 cc)
Flow @ 2500 RPM:
Front: 19 gpm (72 L/min)
Rear: 24 gpm (90 L/min)
Main relief pressure: 3000 psi (207 bar)
Aux. relief pressure: 2500 psi (172 bar)
Main control valve:
Parallel, 3-spool sectional,
remote hydraulic actuation
Frame level control valve:
Solenoid type w/ remote switch
actuation
Auxiliary control valve:
Parallel, 1-spool sectional,
remote hydraulic actuation with
joystick switch
Hydraulic filter:
Remote return type, 15-micron
media, replaceable element.
Rated flow: 70 gpm (265 L/min)
Rated pressure: 800 psi (55 bar)
By-pass pressure (full flow):
45 psi (310 kPa)
Hydraulic strainer:
In-tank suction, 149-micron media,
replaceable element.
Rated flow: 50 gpm (189 L/min)
By-pass pressure: 3 psi (20 kPa)
Operator’s Station
Rollover Protective Structure (ROPS)
ISO 3471-1994
Falling Object Protective Structure
(FOPS)
Meets ANSI/ITSDF B56.6-2005,
Sec 8.16
ISO 3449-2005
Seatbelt:
Meets SAE J386
