Parking Brake
This skid-steer loader is equipped with a
spring-applied, hydraulic-released park-
ing brake. The parking brake engages
when the operator lifts the restraint bar,
exits the seat or shuts off the engine. The
brake can also be applied manually by
using the switch located on the right
instrument panel. A red indicator in the
switch lights when the parking brake is
applied.
Horn
On hand/foot loaders, pressing the right button on the left control handle sounds
the horn. On T-bar loaders, pressing the bottom button on the left control handle
sounds the horn.
Rear Window Emergency Exit
The ROPS rear window has three func-
tions: noise reduction, flying objects bar-
rier and emergency exit.
To use the emergency exit, pull on the
yellow warning tag at the top of the
window and remove the seal. Push or kick
out the window and then exit.
See your local automotive glass specialist
to reinstall the window.

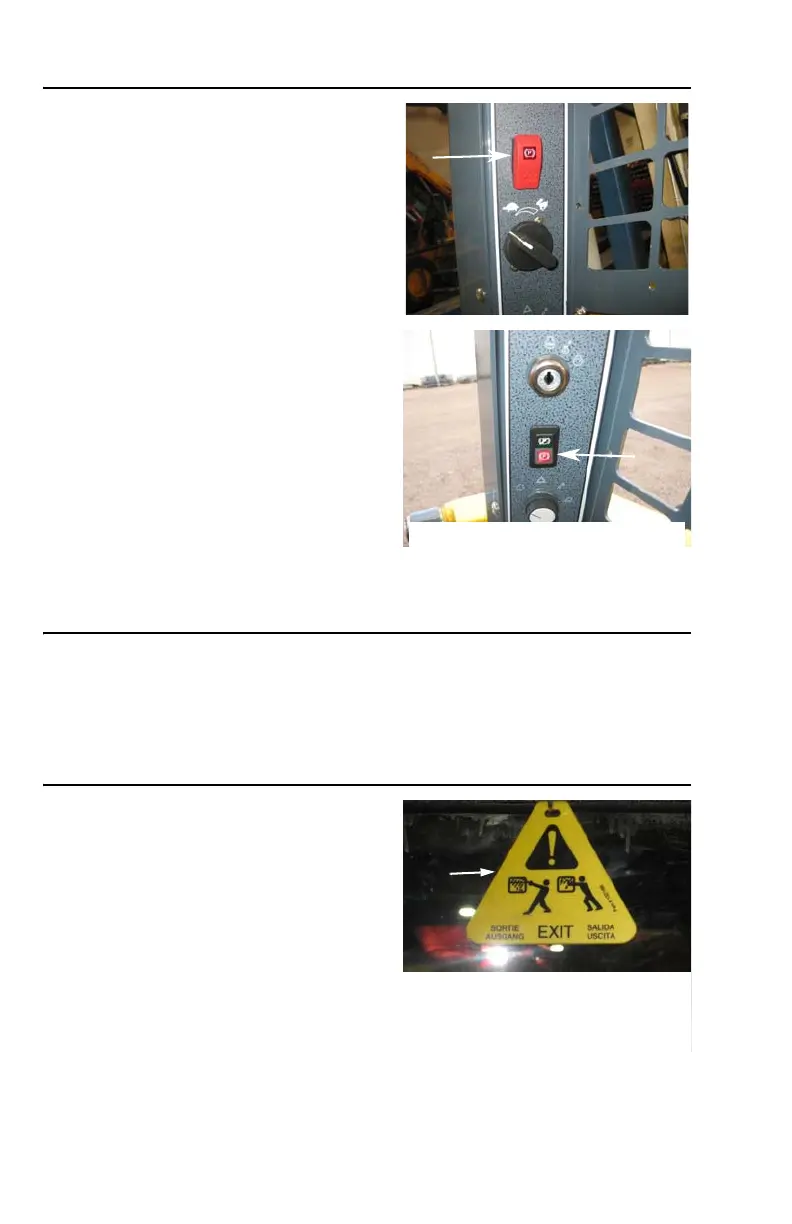

Figure 2 Parking Brake Switch -
DPF Models above, Non-DPF
Models below
Figure 3 Rear Window
Emergency Exit
1. Pull Tag
