C. Place throttle controls to the lowest speed setting. A checkmark is displayed
next to the engine RPM symbol when the engine is running at low idle.
3. When all three checkmarks (A, B &
C) are displayed on the Stationary
Regeneration screen, press and hold
the button (Z) until the Stationary
Regeneration In-Progress screen
displays (Figure 13).
Note: Stationary regeneration can be
interrupted at any time by releasing the
parking brake, advancing the throttle,
or stopping the engine. Stationary
regeneration must start again from the
beginning if it is interrupted.
Stationary regeneration completion
percentage is displayed as during the stationary regeneration progresses. Progress
percentage disappears when stationary regeneration completes.
Note: Stationary regeneration takes approximately 25-30 minutes.
It is not necessary to stay in the machine during stationary
regeneration. Keep the machine under observation while
regeneration is in progress in case of malfunction. Keep bystanders away from the
machine while regeneration is in progress.
Forcing Stationary Regeneration
Stationary regeneration can be performed at any time after 50 operating hours
following the previous stationary regeneration.
To perform stationary regeneration on-
demand:
Press button (Y, Figure 14) associated
with the DPF regeneration symbol (X),
until the regeneration screen displays.
Refer to “Stationary Regeneration” on
page 57 to proceed with stationary
regeneration.
22 %

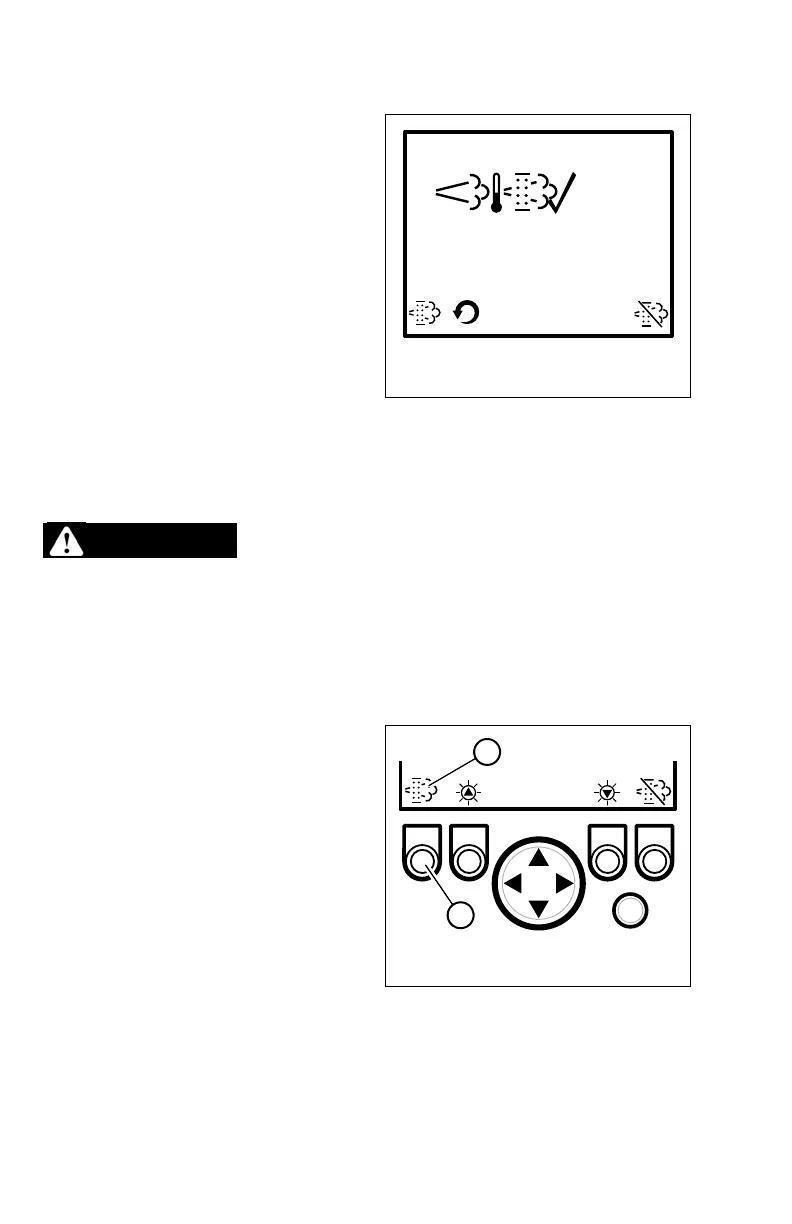

Figure 13 – Stationary Regenera-
tion In-Progress Screen
Figure 14 – Forcing Stationary
Regeneration
Y
X
