Front liquid brake
A Diameter of front brake disc: 190mm
B
Thickness of front brake disc: 4.0mm
Service limit: 3.0mm
C
Thickness of friction lining: 6.0mm
Service limit: 5.0mm
D
Mounting torque value of the bolt (9)
shown in the figure: 5-9N·m
E
Mounting torque value of the nut (29)
shown in the figure: 37-44N·m
F
Free stroke of brake lever:
10-20mm

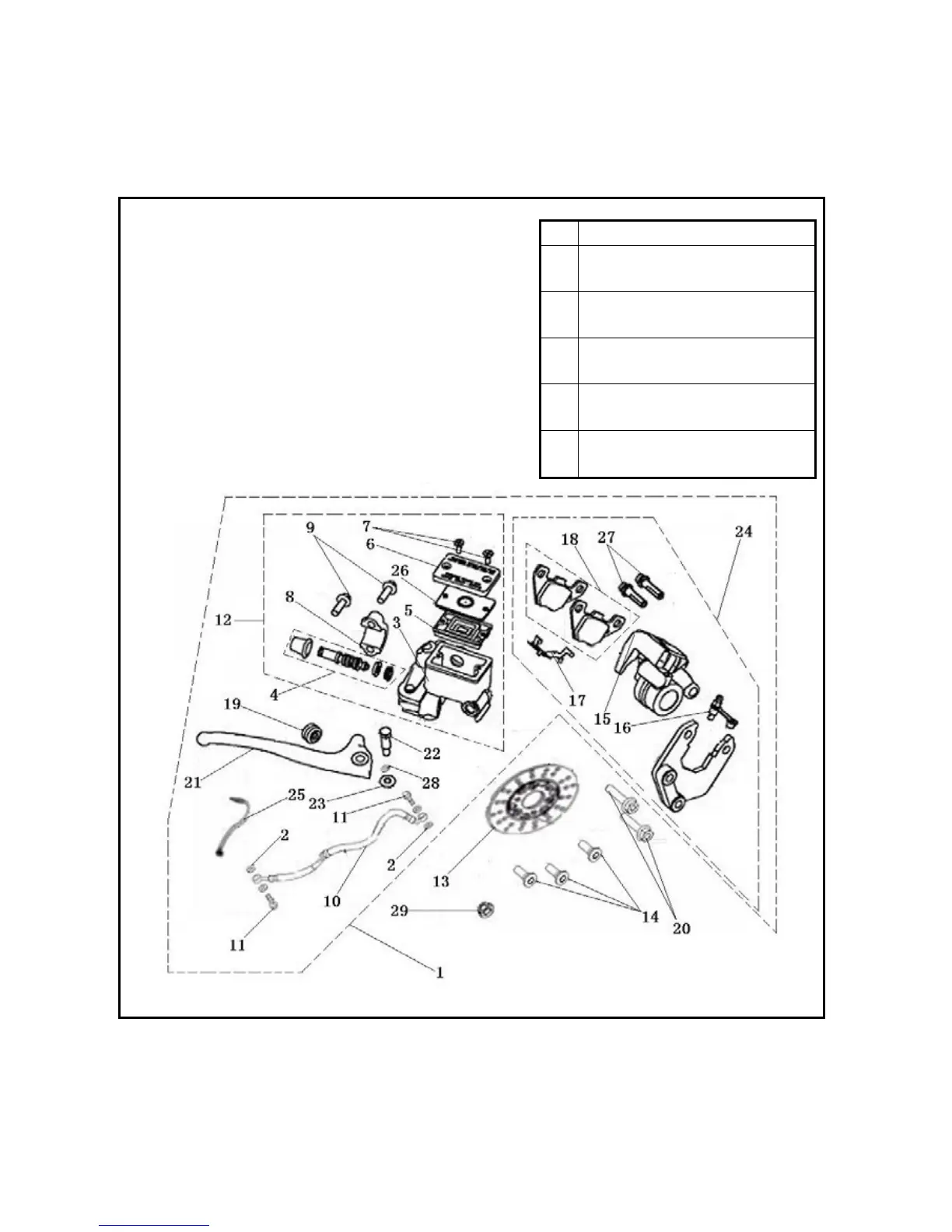

1. Hydraulic brake assembly 2. Gasket 3. Oil pump body 4. Plunger module 5. Oil cup pad 6. Oil
cup cover 7. Screw M4×10 8. Fixing cover of handle seat 9. Screw M6×23 10. Brake hose assembly
11. Coupling bolt 12. Oil pump body module 13. Front brake disc 14. Mounting bolt of front brake disc
15. Brake cylinder 16. Dust cover of bleeder valve 17. Spring leaf 18. Friction lining module 19.
Return spring of handle 20. Bolt 21. Hydraulic brake lever 22. Bolt 23. Nut M6 24. Brake cylinder
To Next Page
