Generic Race 50 - V. Brake

106
module 25. Front brake switch 26. Oil pump body gasket 27. Small pillar 28. Washer 29. Mounting
nut of front brake disc M10×1.25

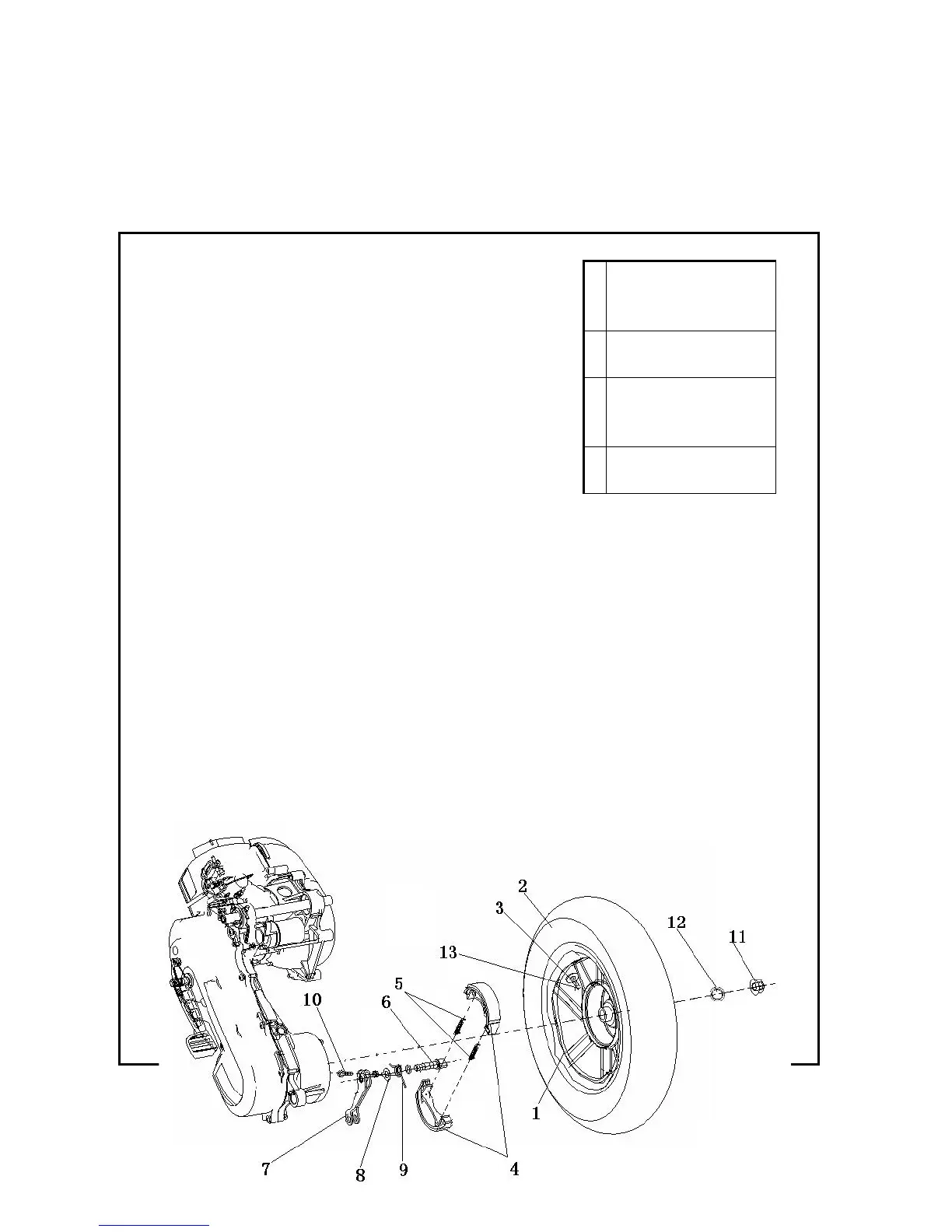

Rear brake drum
A
Mounting torque value of
the nut (11) shown in the
figure: 100-113N·m
B
Bore of brake drum: 110mm
Wear limit: 111mm
C
Thickness of brake shoe:
6.0mm
Service limit: 5.0mm
D
Free stroke of rear brake
lever: 10-20mm
