112
*Attention
Grease on the brake pad may reduce brake ability and invalidate the brake.
Screw the bolt and nut to the stipulated torque force value.
Torque value：
Fixing nut of rear wheel: 100-113N·m
Keep the brake pad and brake disc free of oil stain.
If the brake pad and brake disc are polluted with oil,
rinse them with brake cleaning fluid.

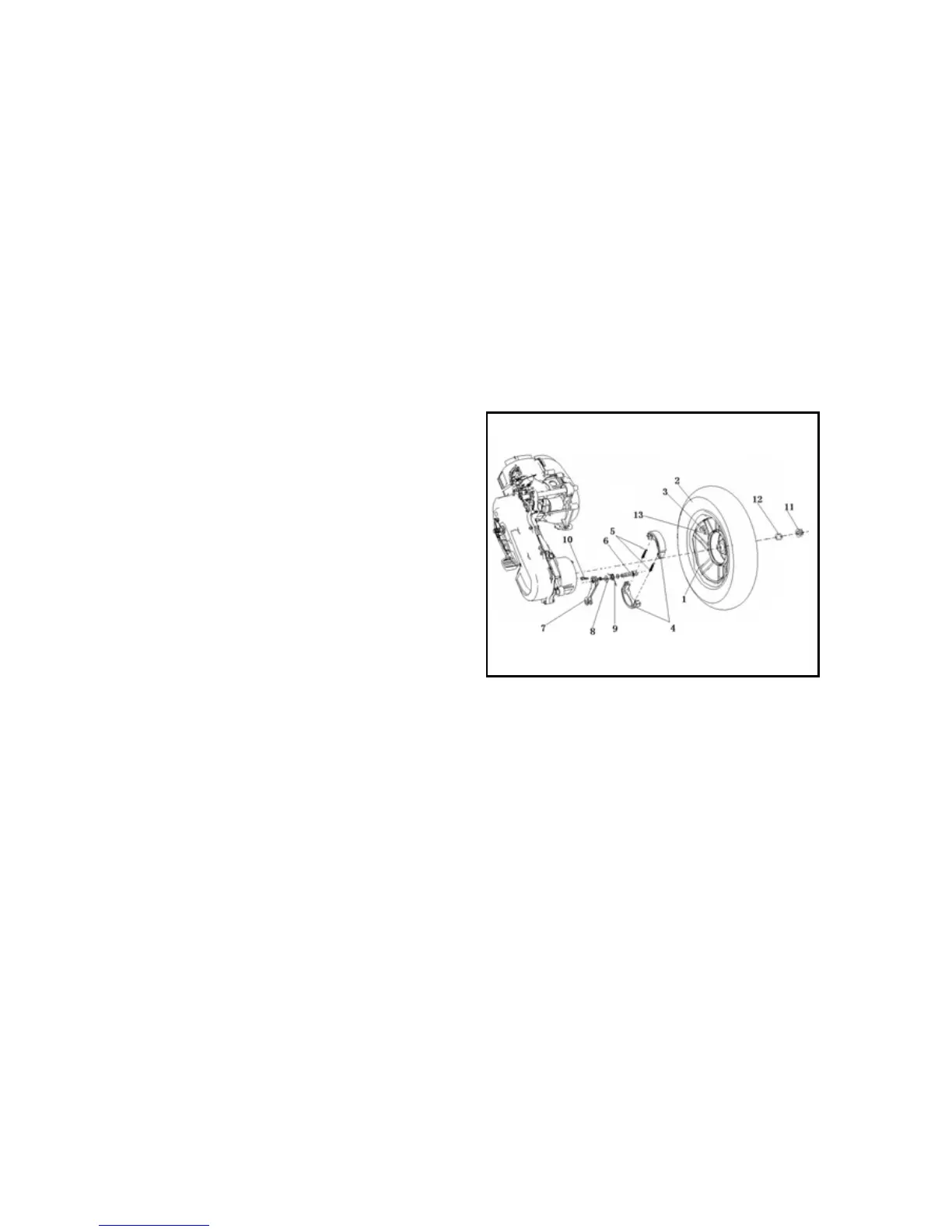

Rear brake:
1. Bolt 7. Brake shoe module (4)
2. Rear brake rocker arm module (7) 8. Brake shoe tension spring (5)
3. Nut 9. Outer cover 130/70-12 (2)
4. Rear indicator (8) 10. Rear rim (1)
5. Rear brake return spring (9) 11. Fixing nut of rear wheel (11)
6. Rear brake camshaft (6)
*Attention
Oil stain on the brake clutch will reduce its performance.
Note: Detailed decomposition map can be seen on P79.
