113

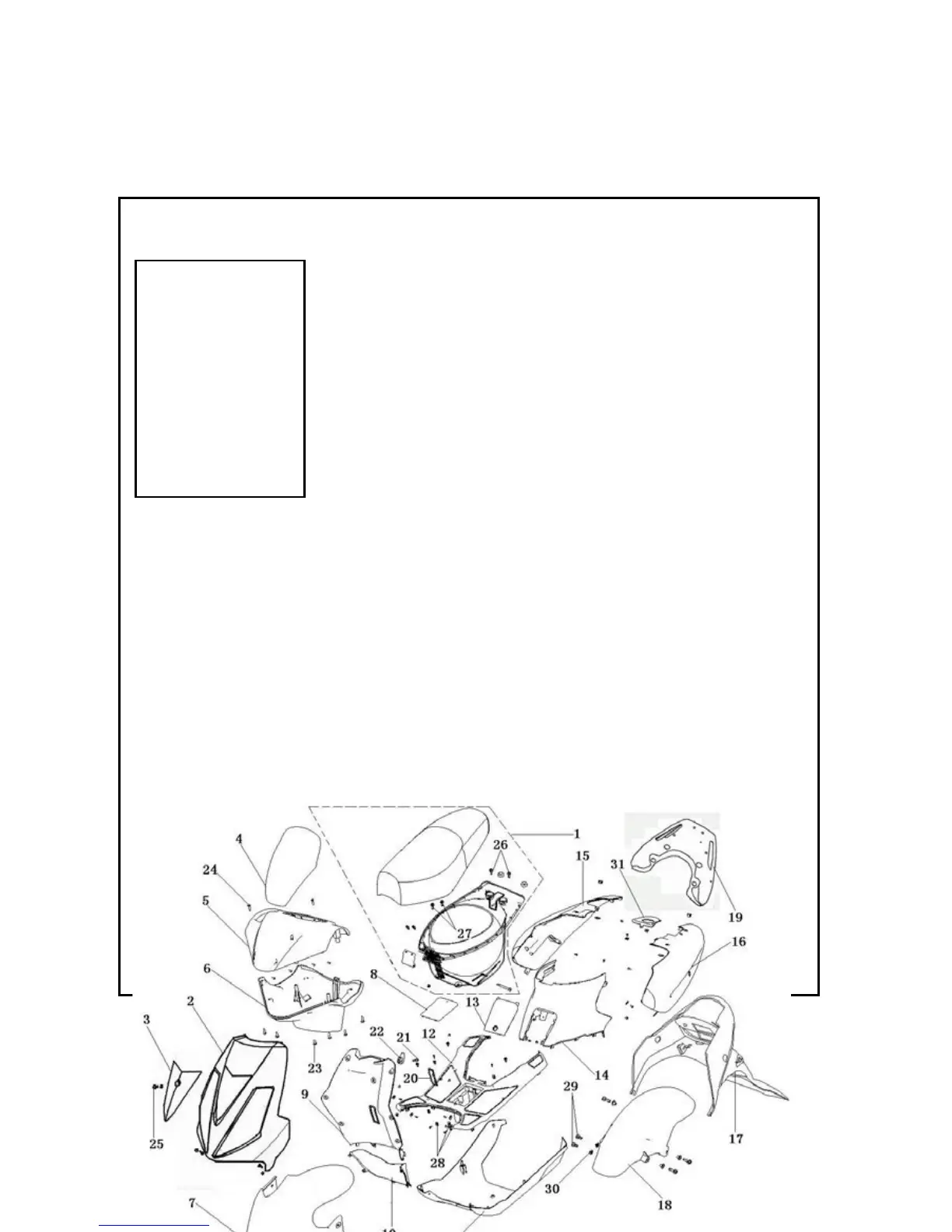

Body cover
1 Cushion components 2 Front enclosures double-light panel 3 Former part big covering decorative plates
4 Table-speed shade 5 Front shielding 6 Back shielding 7 Front mudguards 8 Battery cover 9
Foot-protection board 10 Inside mudguards 11 Lower cover 12 panel board 13 Front cover of helmets
14 Around linking boards I 15 Right protection board 16 Left protection board 17 Back licence
brackets 18 Back mudguards 19 Back shelf 20 Frame board 21 Bolt M6 × 30 22 helmet hooks
23 screws M5 × 14 24 self-tapping screw ST4 × 12 25 Front cover screws 26 Boss screw bolt M6 × 14
27 bolts M6 × 12 28 cards 29 bolts M6 × 20 30 card nut M6 31 Around protection linking board II
*Attention
The cover of car body must
not be damaged when taken
apart.
The hook claws of the body
cover must not be damaged
when taken apart.
Correspond the embedded
panel and spear plate of car
body with respective slot.
In the composition, hook in
each part must be installed
correctly.
Accessories should not be
damaged in the installation
of cover parts.
