Generic Race 50 - Page 127

126
Rear wheel /rear suspension

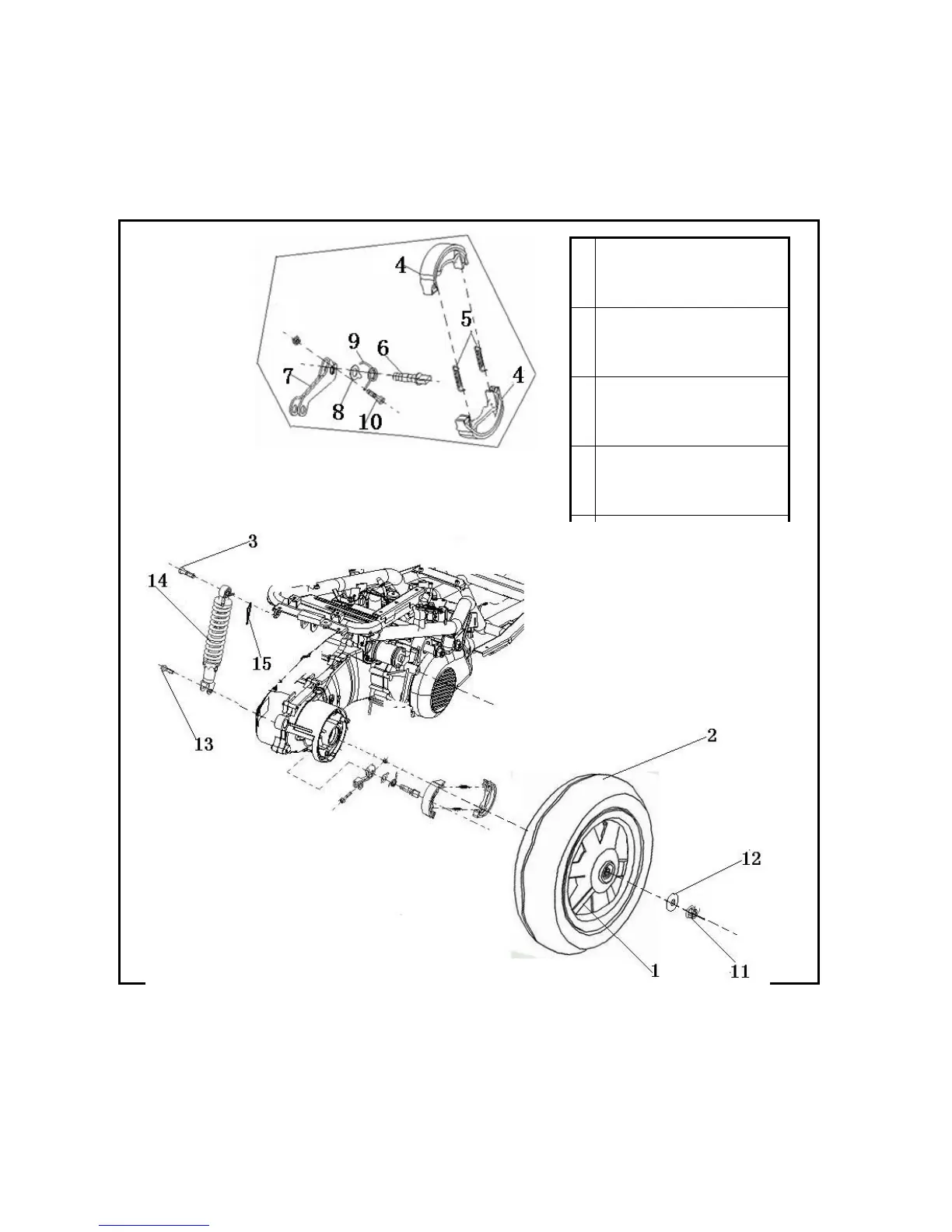

1 Rim 2 tyre130/70-12 3 screw M10×1.25×40 4 components of braking plate 5 tension spring of
braking plate 6 camshaft of rear brake 7 crank components of rear brake 8 rear indicator 9 position
return spring of rear brake 10 mounting bolts of rear crank 11 bolts 12 dust proof lid 13 screw M8×31
14 components of rear shock absorber 15 locking pin
A
Torsion for screw bolts 11 of rear
wheel：100 -113 N·m
B
Torsion for screw bolts 3：37-44
N·m
D
Torsion for screw bolts13：22-29
N·m
E
Inner radius for braking
hub(abrasion limit)：111mm
